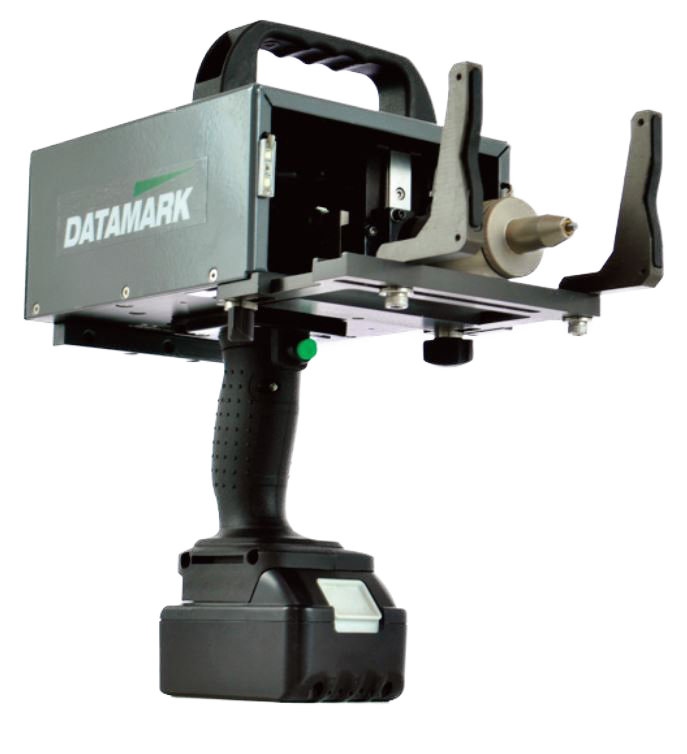

Datamark MOBILE MP-100 Portable dot peen marking machine 100 x 30 mm

Datamark MOBILE MP-100 Portable dot peen marking machine 100 x 30 mm

pics/Datamark/mp-100-mobile/datamark-mp-100-portable-dot-peen-marker-100-30mm.jpg
  • pics/Datamark/mp-100-mobile/datamark-mp-100-portable-dot-peen-marker-100-30mm.jpg
  • pics/Datamark/mp-100-mobile/datamark-mp-100-portable-pin-marker-1.jpg
  • pics/Datamark/mp-100-mobile/datamark-mp-100-portable-pin-marker-2.jpg
  • pics/Datamark/mp-100-mobile/datamark-mp-100-portable-pin-marker-details.jpg
  • pics/Datamark/mp-100-mobile/datamark-mobile-mp-100-portable-dot-peen-marking-gun-use2.jpg
  • pics/Datamark/mp-100-mobile/datamark-mobile-mp-100-portable-dot-peen-marking-gun-use.jpg
  • pics/Datamark/mp-100-mobile/datamark-mobile-mp-100-portable-dot-peen-marking-gun-tablet.jpg
  • pics/Datamark/mp-100-mobile/datamark-mobile-mp-100-portable-dot-peen-marking-gun-accessories.jpg
  • pics/Datamark/mp-100-mobile/datamark-mobile-mp-100-portable-dot-peen-marking-gun-sizes.jpg
  • y:sE-EBthqOEk
  • pics/Datamark/Logo-datamark/logo-datamark.jpg
  • pics/Datamark/datamark-mp-100-portable-pin-marker-details5.jpg

5591.81 5,591.81 incl. VAT (4,699.00 excl. VAT), per piece *

Availability: shipping in 3-5 working days

Packaging unit: 1 piece

Manufacturer: Datamark

Country of origin: ES/0011

Customs tariff number: 84671900

Weight per piece: 6.8 kg

Please give the recipient email address, as well as your name and email address.

Recipient
Sender

The fields marked with (×) are required.
Security (ANTI-SPAM)
( Examples: two + three = 5, three - five = -2 )
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

The fields marked with (×) are required.
Security (ANTI-SPAM)
( Examples: two + three = 5, three - five = -2 )

N°1 battery powered portable dot peen marking system for almost every application needs

Marking area: 100 x 30 mm
Datamark MP-100 MOBILE is a fully portable marker that offers at the same time an extremely compact, ergonomic and robust design, combined with the highest performance, ease of programming and a superior marking area which makes it, with no doubt, the most versatile and perfectly balanced marker in the market; both technically and economically.

Benefits

  • Unlimited marking applications - Easily mark any type of part, anytime, anywhere.
  • Easier to program / Easy for any user -  The MP-100 marker is extremely easy to program just out of the box, using the free APP Datamobil software available for any standard device; smartphone, tablet and PC.
  • More compact / More robust / More reliable - Its robust metal casing, its compact design, without complicated or delicate keyboards and screens, make the MP-100 MOBILE marker the strongest battery-powered marker on the market.
  • More powerful / More flexible - The MP-100 MOBILE marker, at least doubles in marking performance and features to any other battery-powered marker on the market, thus offering, as standard,

Fields of application

  • Marking texts, numbers, logos and Datamatrix identification codes.
  • Automatic marking of serial numbers, dates, time and shift codes.
  • Automatic entry of marking data by barcode scanning
  • Many more application possibilities; deep marking, datamatrix marking, logo marking, serial marking, etc.

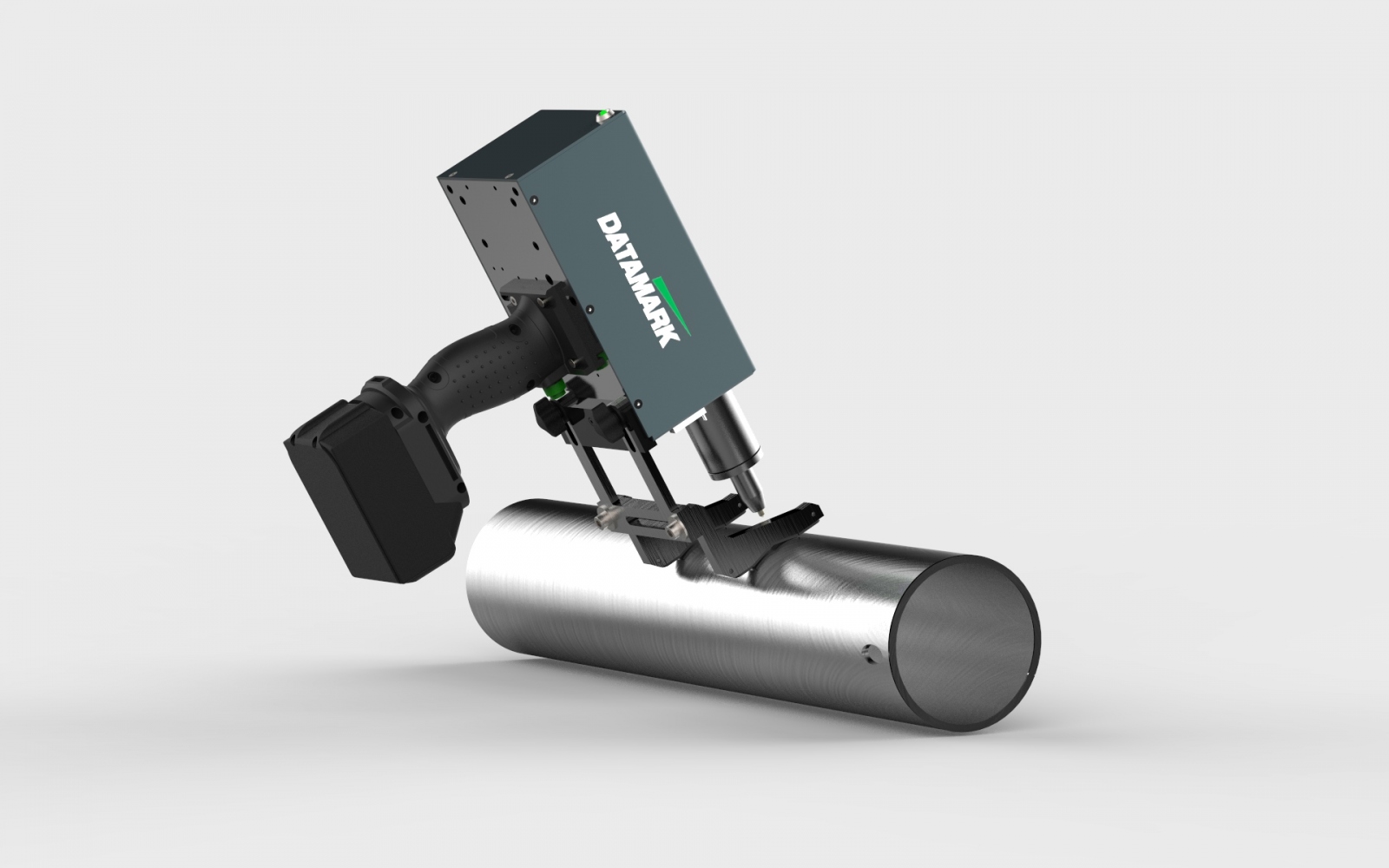

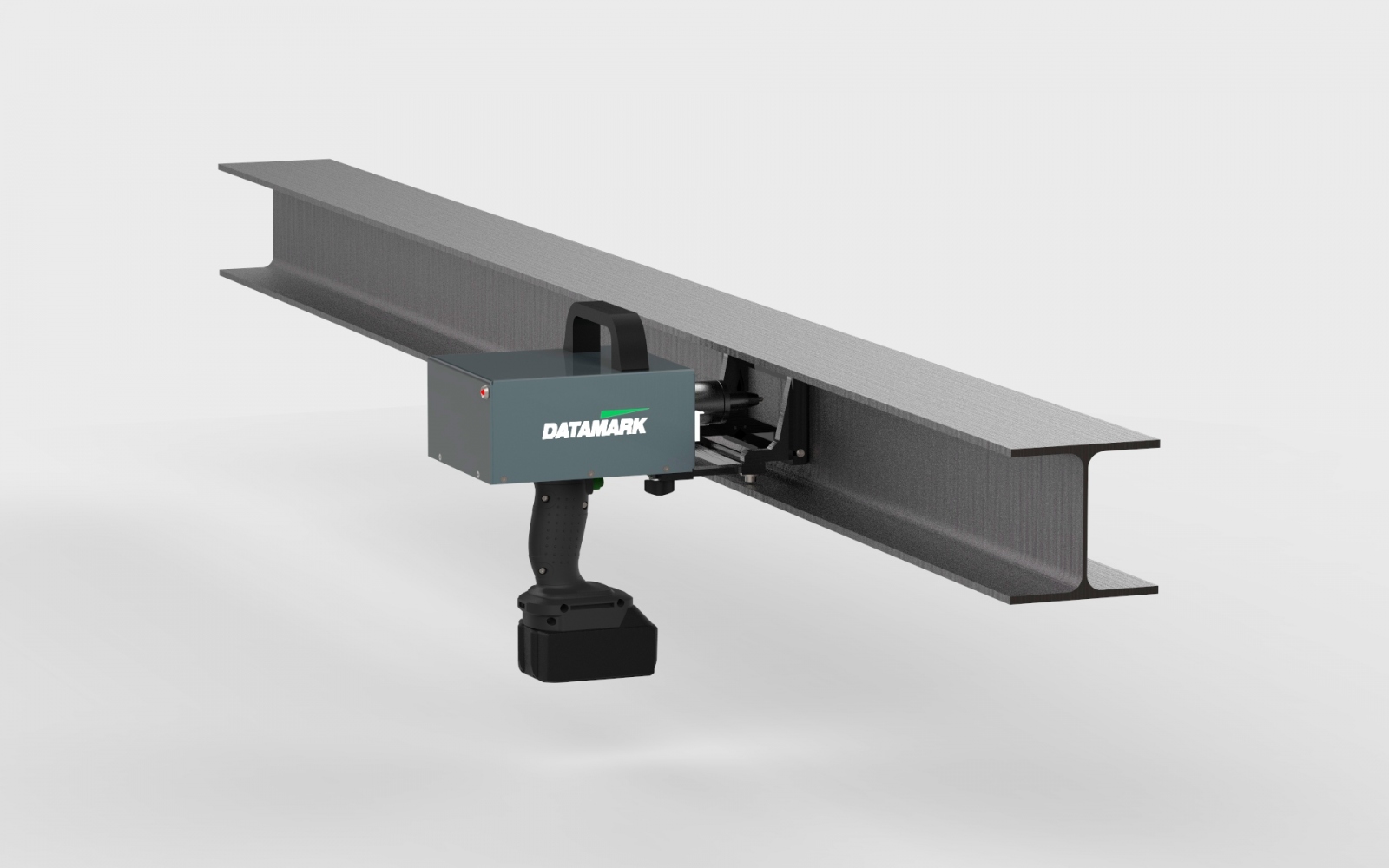

  • Marking large tubes and pipes, stored materials for assembly or construction, casting / forging, large / small machined parts, large frames / profiles, metal containers, plates, etc.

Characteristics

  • Compact and robust design marker of metal construction.
  • Adjustable marking force-depth.
  • Marking on metals up to 64 HRC hardness.
  • Adjustable front support legs to access difficult areas.
  • Detachable non-slip flat support front mask.
  • Automatic lighting system of the work area with integrated LED.
  • High capacity rechargeable Li-Ion battery.
  • Operational autonomy of more than 3 hours of continuous marking.
  • Easy and intuitive marking programming using the DATAMOBIL application.
  • Wireless WiFi connection of the marker with the control device; Smartphone and PC.

Technical specifications

ReferenceMP-100-MOB
Marking window X-Y100 x 30 mm
Dimensions (W x H x D) mm165 x 280 x 270
Total weight Kg (including battery)4.2
Marking stylusLE-06 / 90° angle
Max. hardness of the material to mark62 HRC
Communication interfaceWireless WiFi connection (does not require internet access)
Built-in trigger functionsMachine On / Start marking / Emergency stop / Machine Off
LED status indicator lightMachine On / Connected / Marking
Software operating systemAndroid 6.0 & higher / Apple IOS / Windows 10
Removable batteryLi-ion 18v 5.0 Ah 90Wh
Battery operting timeMore than 3 hours of continuous marking
Battery charger110-240V 50-60hz / Euro-type

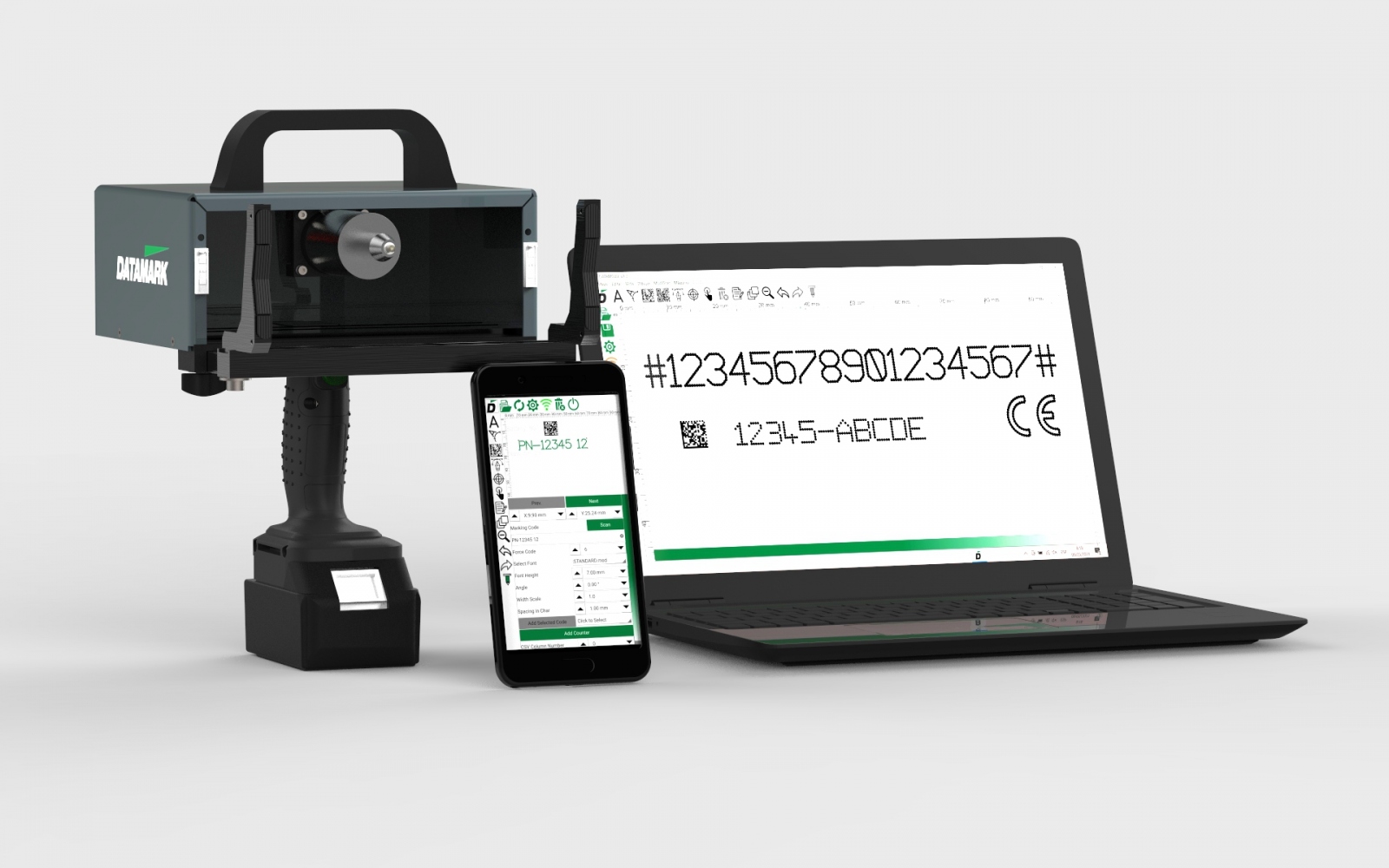

Mobile application

  • Mobile application for marking design and programming available for Android Smartphones.
  • Easy, intuitive and fully featured responsive marking software.
  • Automatic marking data programming; serial numbers, time, date and shift codes.
  • Selectable dot matrix marking fonts; 5×7, 7×9, 11×16, and continuous line fonts.
  • Adjustable characters height, width, angle and circunferential position
  • Programmable marking speed, force and marking repetition.
  • Datamatrix codes marking.
  • Vector logos marking (PLT).
  • On screen marking preview and trial run features included.
  • Unlimited capacity for marking files storage.
  • Password protection.
  • Available for free download on the Google Play Store.
All product features, an overview of the standard equipment and options can be viewed in the download areas pdf.

Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR,
Property GTIN/EAN MPN (Manufacturer Part Number)
- - MP-100-MOB
