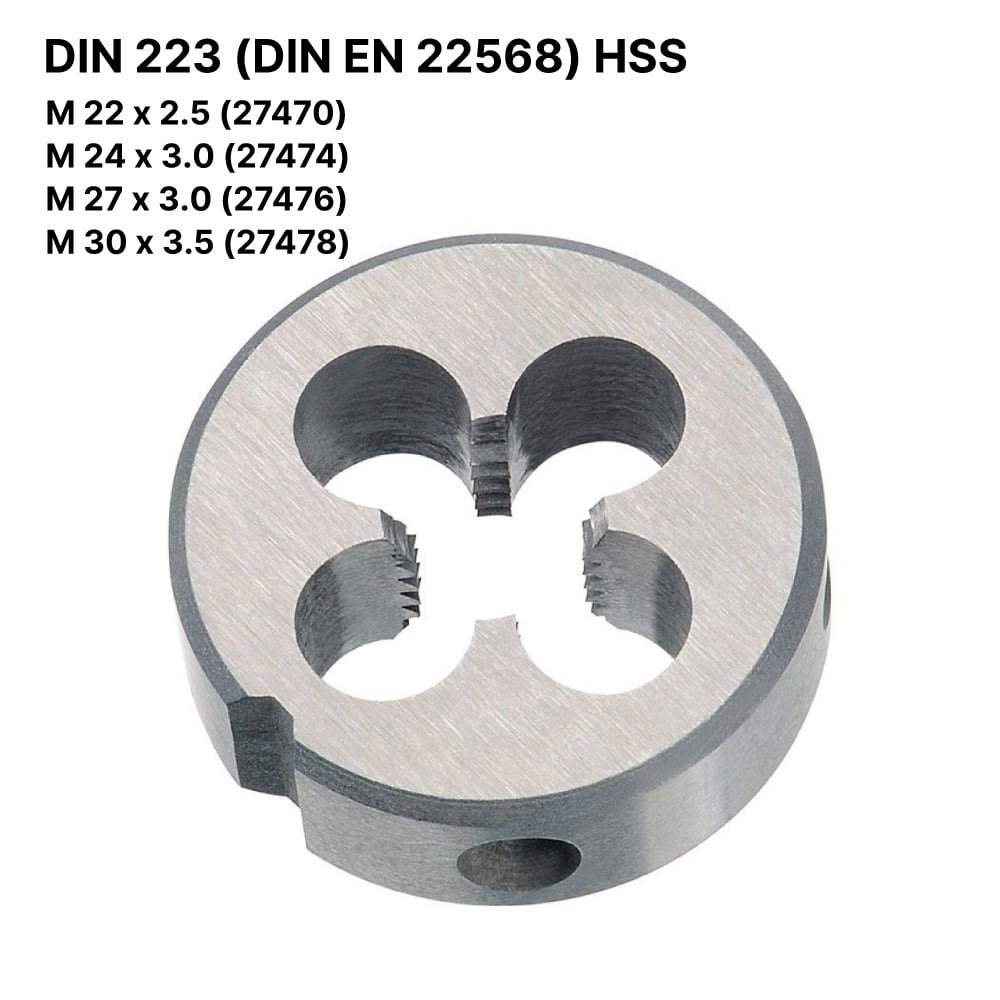

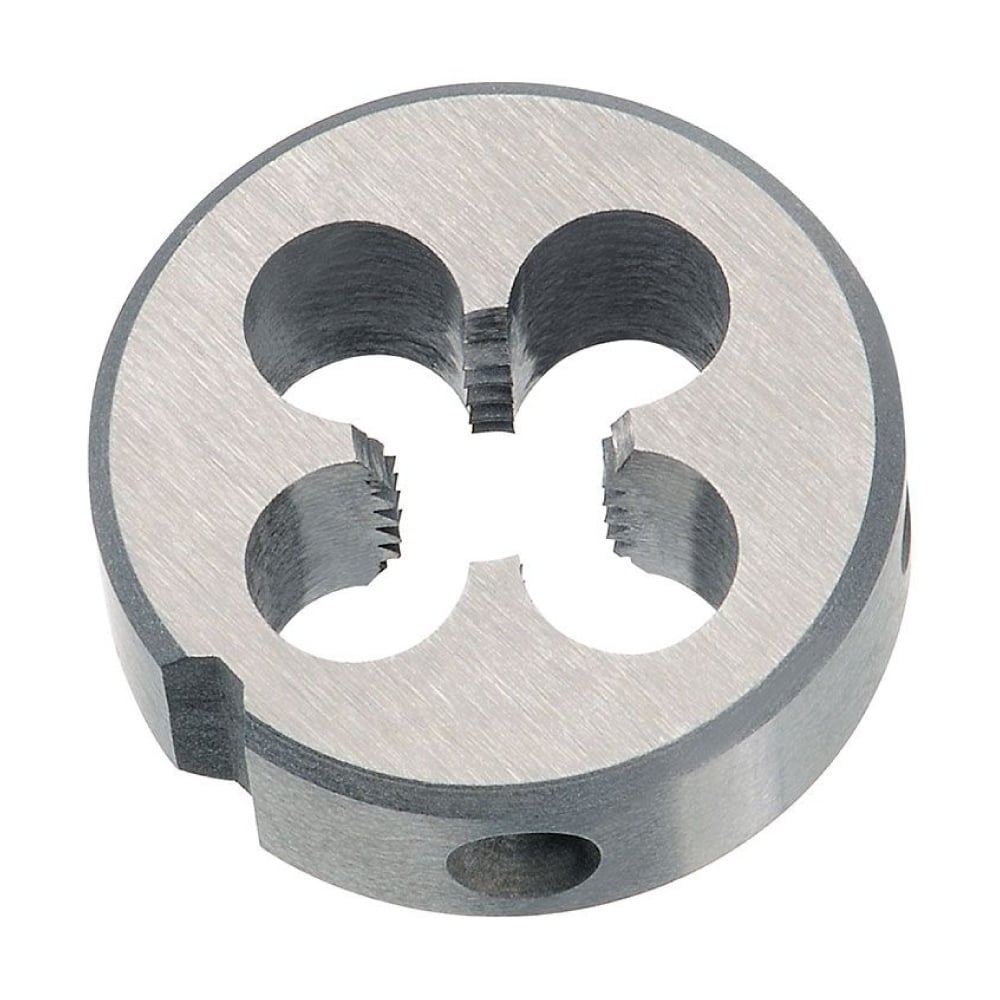

VÖLKEL Round Die DIN 223 (DIN EN 22568) HSS
€ 47.54 47.54 incl. VAT (39.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Völkel
Country of origin: DE/0004
Customs tariff number: 82074030
Weight per piece: 355 g
No problem. Simply fill out the form and we will answer you as soon as possible.
VÖLKEL Round Die DIN 223 (DIN EN 22568) HSS is a solid round threading die for metric ISO external threads. It is designed for cutting, restoring and reworking external threads on rods, bolts and similar cylindrical parts in workshop, repair and maintenance applications.
- Product type: Round die, solid version (Form B)
- Tool material: HSS
- Sizes: M22 (27470), M24 (27474), M27 (27476), M30 (27478)
Applications
- For cutting and reworking external threads on rods, bolts and studs
- For repair, maintenance, prototyping and small batch work
- For use with a suitable round die holder or die stock
- For controlled manual threading where correct alignment is required
Features
- According to DIN 223 (DIN EN 22568)
- Solid version (Form B)
- Tolerance class 6g
- Compact individual tool for external thread work
- Suitable for creating, restoring and cleaning external threads
Technical Data
| Product type | Round die |
| Thread system | Metric ISO thread |
| Thread standard | DIN 13 |
| Standard | DIN 223 (DIN EN 22568) |
| Form | Solid version (Form B) |
| Tolerance | 6g |
| Tool material | HSS |
Application Notes
- Select the die according to thread designation, standard and pitch
- Use a suitable die holder to keep the tool square to the workpiece axis
- Prepare the workpiece with a clean lead-in chamfer
- Apply suitable cutting fluid matched to the material
- Clear chips regularly and check the finished thread fit after machining
