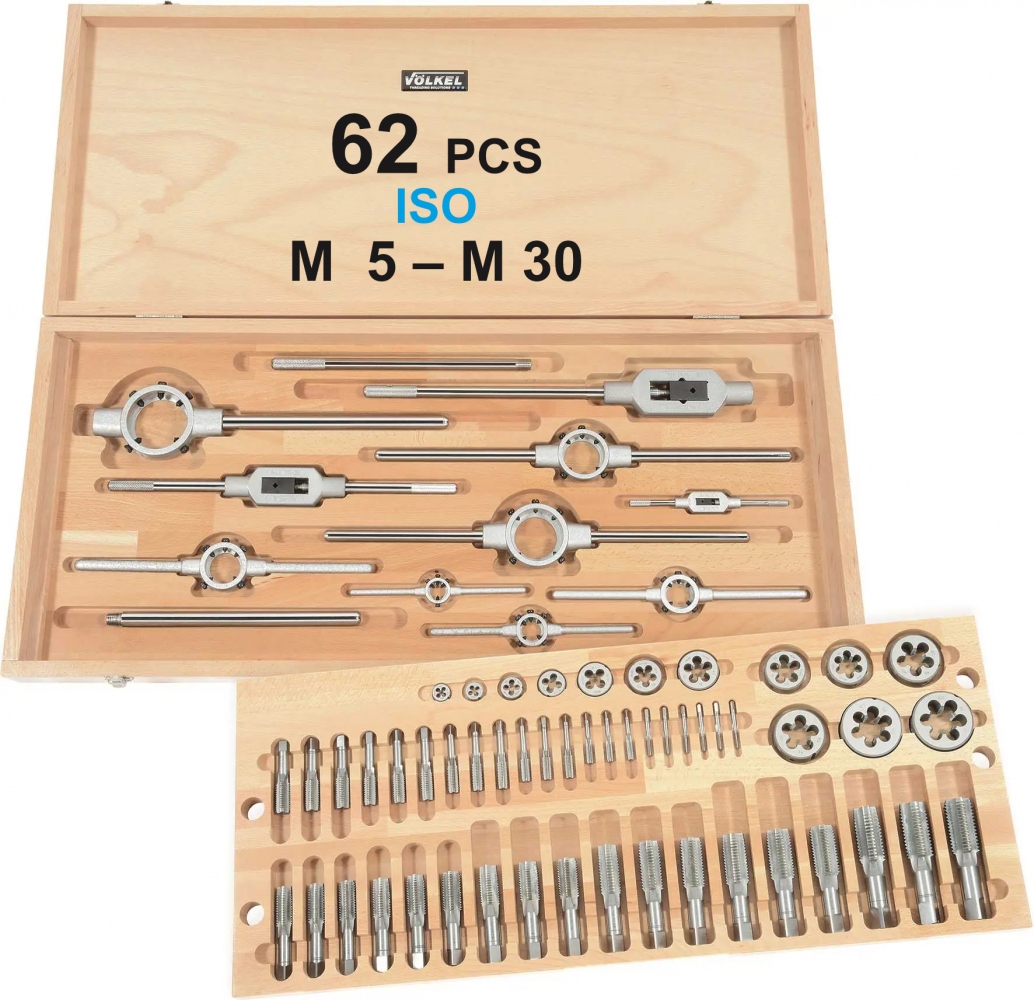

VÖLKEL 48007 Metric ISO Hand Tap and Die Set 62 pcs. M5 - M30

VÖLKEL 48007 Hand Tap and Die Set, 62 pcs. is a thread cutting tool set for metric ISO threads designed for producing, reworking and repairing internal and external threads in mechanical engineering, workshops and maintenance applications.

• Version: 62-piece set in wooden case
• Thread range: M 5 to M 30
• Tool material: HSS-G, HSS

Scope of delivery

• 1x HSS-G Hand taps 3-pcs. set M 5 (27334)
• 1x HSS-G Hand taps 3-pcs. set M 6 (27338)
• 1x HSS-G Hand taps 3-pcs. set M 8 (27342)
• 1x HSS-G Hand taps 3-pcs. set M 10 (27346)
• 1x HSS-G Hand taps 3-pcs. set M 12 (27350)
• 1x HSS-G Hand taps 3-pcs. set M 14 (27354)
• 1x HSS-G Hand taps 3-pcs. set M 16 (27358)
• 1x HSS-G Hand taps 3-pcs. set M 18 (27362)
• 1x HSS-G Hand taps 3-pcs. set M 20 (27366)
• 1x HSS-G Hand taps 3-pcs. set M 22 (27370)
• 1x HSS-G Hand taps 3-pcs. set M 24 (27374)
• 1x HSS-G Hand taps 3-pcs. set M 27 (27376)
• 1x HSS-G Hand taps 3-pcs. set M 30 (27378)
• 1x HSS Round die M 5 (27434)
• 1x HSS Round die M 6 (27438)
• 1x HSS Round die M 8 (27442)
• 1x HSS Round die M 10 (27446)
• 1x HSS Round die M 12 (27450)
• 1x HSS Round die M 14 (27454)
• 1x HSS Round die M 16 (27458)
• 1x HSS Round die M 18 (27462)
• 1x HSS Round die M 20 (27466)
• 1x HSS Round die M 22 (27470)
• 1x HSS Round die M 24 (27474)
• 1x HSS Round die M 27 (27476)
• 1x HSS Round die M 30 (27478)
• 1x Adjustable tap wrench, zinc die-cast No. 1 (13010)
• 1x Adjustable tap wrench, zinc die-cast No. 3 (13030)
• 1x Adjustable tap wrench, zinc die-cast No. 5 (13050)
• 1x Die stock, zinc die-cast 20 x 7 mm (15003)
• 1x Die stock, zinc die-cast 25 x 9 mm (15004)
• 1x Die stock, zinc die-cast 30 x 11 mm (15005)
• 1x Die stock, zinc die-cast 38 x 14 mm (15007)
• 1x Die stock, zinc die-cast 45 x 18 mm (15009)
• 1x Die stock, zinc die-cast 55 x 22 mm (15011)
• 1x Die stock, zinc die-cast 65 x 25 mm (15013)

Features

• 62-piece complete set for internal and external threads
• For metric ISO threads M according to DIN 13
• DIN version
• HSS-G hand taps and HSS round dies
• Component standards: DIN 352, DIN 223 and DIN EN 22568
• Clearly arranged storage in a wooden case
• Suitable for recurring workshop, service and maintenance tasks
• Individual components can be reordered to match the existing set

Technical data

Applications

• For cutting, recutting and cleaning metric ISO threads
• For internal threads with hand taps
• For external threads with round dies
• For workshop production, service, maintenance and general mechanical engineering
• For applications where dimensional accuracy and clean thread flanks are important

Application notes

• Clean and deburr the workpiece and machining area before thread cutting
• Select the correct tool according to thread size and machining task
• Start the tool squarely and guide it carefully during the first turns
• Use a suitable cutting oil or cutting fluid and remove chips regularly
• After machining, clean the threads and tools and store the components protected in the case
