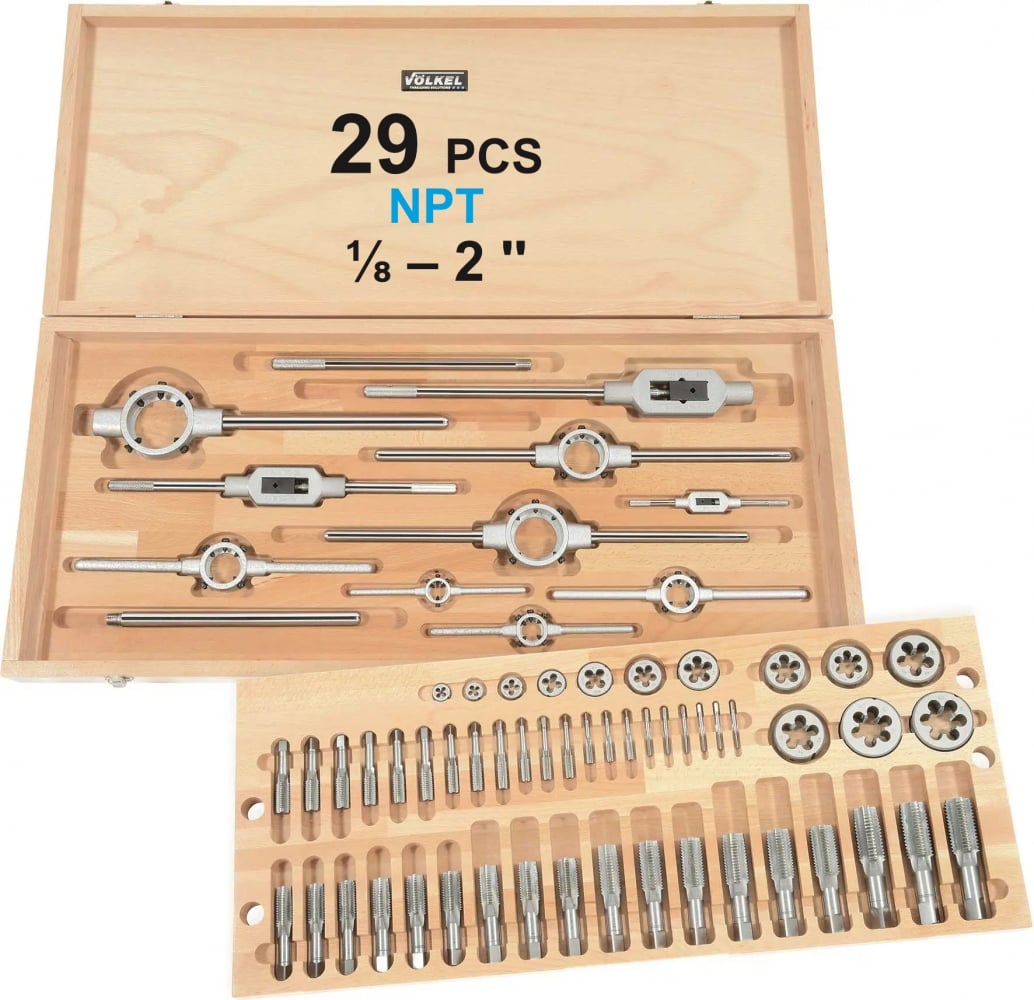

VÖLKEL 48027 NPT Tap and Die Set 29 pcs. 1/8 - 2 inch

VÖLKEL 48027 NPT Tap and Die Set, 29 pcs. is a thread cutting tool set for tapered American pipe threads (NPT) designed for producing, reworking and repairing internal and external threads in mechanical engineering, service workshops and maintenance applications.

• Version: 29-piece set in metal case
• Thread range: NPT 1/8" to 2"
• Tool material: HSS-G, HSS

Scope of delivery

• 1x Short machine tap Form C HSS-G - NPT 1/8 x 27 (63512)
• 1x Short machine tap Form C HSS-G - NPT 1/4 x 18 (63514)
• 1x Short machine tap Form C HSS-G - NPT 3/8 x 18 (63516)
• 1x Short machine tap Form C HSS-G - NPT 1/2 x 14 (63518)
• 1x Short machine tap Form C HSS-G - NPT 3/4 x 14 (63522)
• 1x Short machine tap Form C HSS-G - NPT 1" x 11.5 (63526)
• 1x Short machine tap Form C HSS-G - NPT 1.1/4 x 11.5 (63534)
• 1x Short machine tap Form C HSS-G - NPT 1.1/2 x 11.5 (63542)
• 1x Short machine tap Form C HSS-G - NPT 2" x 11.5 (63554)
• 1x Round die HSS - NPT 1/8 x 27 (23612)
• 1x Round die HSS - NPT 1/4 x 18 (23614)
• 1x Round die HSS - NPT 3/8 x 18 (23616)
• 1x Round die HSS - NPT 1/2 x 14 (23618)
• 1x Round die HSS - NPT 3/4 x 14 (23622)
• 1x Round die HSS - NPT 1" x 11.5 (23626)
• 1x Round die HSS - NPT 1.1/4 x 11.5 (23634)
• 1x Round die HSS - NPT 1.1/2 x 11.5 (23642)
• 1x Round die HSS - NPT 2" x 11.5 (23654)
• 1x Adjustable tap wrench DIN 1814 zinc die-cast No. 2 (13020)
• 1x Adjustable tap wrench DIN 1814 zinc die-cast No. 4 (13040)
• 1x Adjustable tap wrench DIN 1814 steel version No. 7 (14070)
• 1x Die stock DIN 225 (DIN EN 22568) zinc die-cast 30 x 11 mm (15005)
• 1x Die stock DIN 225 (DIN EN 22568) zinc die-cast 38 x 14 mm (15007)
• 1x Die stock DIN 225 (DIN EN 22568) zinc die-cast 45 x 18 mm (15009)
• 1x Die stock DIN 225 (DIN EN 22568) zinc die-cast 55 x 22 mm (15011)
• 1x Die stock DIN 225 (DIN EN 22568) zinc die-cast 65 x 25 mm (15013)
• 1x Die stock DIN 225 (DIN EN 22568) steel version 75 x 30 mm (15215)
• 1x Die stock DIN 225 (DIN EN 22568) steel version 90 x 36 mm (15217)
• 1x Die stock DIN 225 (DIN EN 22568) steel version 105 x 36 mm (15219)

Features

• 29-piece complete set for internal and external threads
• American tapered pipe thread NPT with 1:16 taper
• DIN version
• Ground HSS-G tools for defined cutting geometry
• Clearly arranged storage in a robust metal case
• Individual components of the set can be reordered separately

Technical data

Applications

• For cutting and recutting tapered NPT pipe threads
• For internal threads with short machine taps Form C
• For external threads with round dies
• For assembly, repair, maintenance and recurring workshop tasks
• Suitable for applications requiring clean thread flanks and controlled tool guidance

Application notes

• Clean and deburr the workpiece and machining area before thread cutting
• Position the tool squarely to ensure a clean start
• Use a suitable cutting fluid and remove chips regularly
• Clamp the tool securely in the proper holder for controlled operation
• After use, clean the threads and tools and store them in a protected place
