VÖLKEL 48022 G (BSP) Hand Tap and Die Set 30 pcs. 1/4-1,1/2 inch

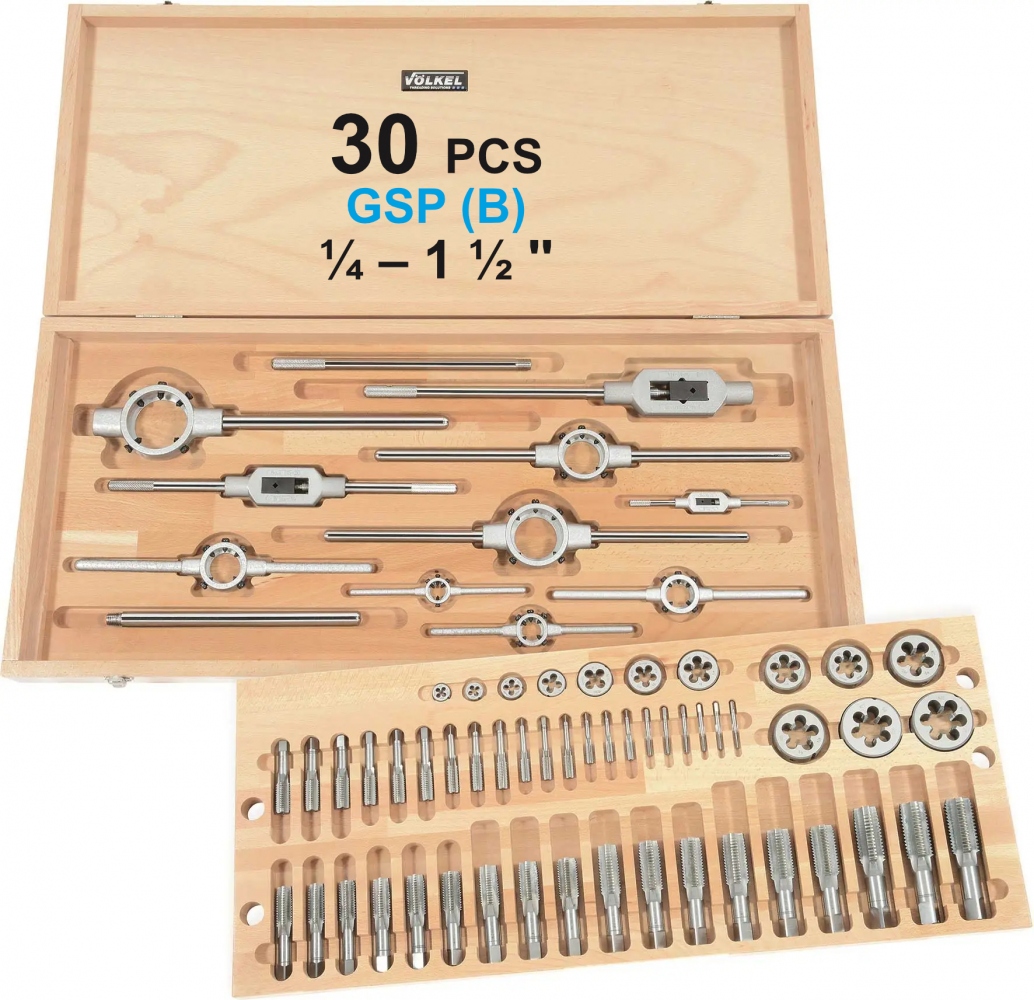

VÖLKEL 48022 Hand Tap and Die Set G (BSP) 1/4 – 1.1/2, 30 pcs. is a thread cutting tool set for cylindrical G (BSP) pipe threads designed for producing, reworking and repairing internal and external threads in mechanical engineering, workshops and maintenance applications.

• Version: 30-piece set in metal case
• Thread range: G (BSP) 1/4" to 1.1/2"
• Tool material: HSS-G / HSS

Scope of delivery

• 1x HSS-G Hand taps, set of 2 pcs. - G (BSP) 1/4 (25314)
• 1x HSS-G Hand taps, set of 2 pcs. - G (BSP) 3/8 (25316)
• 1x HSS-G Hand taps, set of 2 pcs. - G (BSP) 1/2 (25318)
• 1x HSS-G Hand taps, set of 2 pcs. - G (BSP) 3/4 (25322)
• 1x HSS-G Hand taps, set of 2 pcs. - G (BSP) 1" (25326)
• 1x HSS-G Hand taps, set of 2 pcs. - G (BSP) 1.1/4 (25334)
• 1x HSS-G Hand taps, set of 2 pcs. - G (BSP) 1.1/2 (25342)
• 1x HSS Round die - G (BSP) 1/4 (25414)
• 1x HSS Round die - G (BSP) 3/8 (25416)
• 1x HSS Round die - G (BSP) 1/2 (25418)
• 1x HSS Round die - G (BSP) 3/4 (25422)
• 1x HSS Round die - G (BSP) 1" (25426)
• 1x HSS Round die - G (BSP) 1.1/4 (25434)
• 1x HSS Round die - G (BSP) 1.1/2 (25442)
• 1x Adjustable tap wrench, zinc die cast No. 2 (13020)
• 1x Adjustable tap wrench, zinc die cast No. 4 (13040)
• 1x Adjustable tap wrench, steel version No. 7 (14070)
• 1x Die stock, zinc die cast 38 x 10 mm (15006)
• 1x Die stock, zinc die cast 45 x 14 mm (15008)
• 1x Die stock, zinc die cast 55 x 16 mm (15010)
• 1x Die stock, zinc die cast 65 x 18 mm (15012)
• 1x Die stock, steel version 75 x 20 mm (15214)
• 1x Die stock, steel version 90 x 22 mm (15216)

Features

• 30-piece complete set for internal and external threads
• For cylindrical G (BSP) pipe threads according to DIN ISO 228
• DIN version
• HSS-G hand taps according to DIN 5157
• HSS round dies according to DIN 5158 (DIN EN 24231)
• Suitable for through holes and blind holes
• Clearly arranged storage in a robust metal case
• All threading tools and accessories can be reordered separately

Technical data

Applications

• For general workshop, service and maintenance use
• For free-cutting materials up to 900 N/mm²
• For unalloyed and low-alloy steels
• For cutting, recutting and cleaning internal and external threads
• For manual use in matching pipe thread applications

Application notes

• Clean and deburr the workpiece and machining area before thread cutting
• Start the tool carefully and guide it evenly
• Use a suitable cutting fluid and remove chips regularly
• Use the matching tap wrench and die stock for controlled operation
• After use, clean the tools and store them dry in the case
