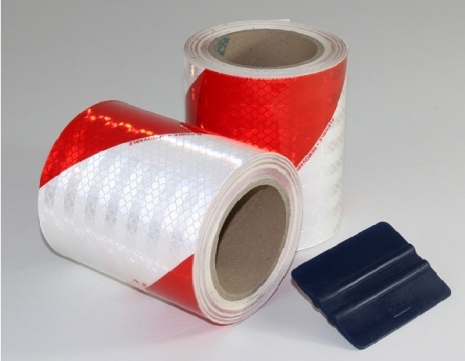

3M 823i Car Warning Marking, set with 2 marking film rolls red/white
€ 209.38 209.38 incl. VAT (175.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 box
Manufacturer: 3M
Country of origin: DE/0004
Customs tariff number: 39191080
Weight per piece: 3.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
3M™ 823i vehicle warning marking is a high intensity metalized, flexible prismatic vehicle marking film for retroreflective vehicle markings according to DIN 30710. It is designed for use on painted, clean, smooth, non-porous and weather-resistant surfaces and provides excellent visibility of commercial vehicles, emergency vehicles and containers. Series 823 is used as an alternative to earlier 3M Scotchlite High Intensity Grade red/white vehicle warning markings.
- Set includes: 2 rolls, each 140 mm × 9 m (left-hand and right-hand chevron)
- Colour: red/white chevron pattern
Applications
- Retroreflective warning markings for trucks and trailers according to DIN 30710
- Marking of vehicles with special rights, e.g. winter service, street cleaning, service and emergency vehicles
- Marking of containers, equipment and stationary installations to improve conspicuity
- Use on flat and moderately curved, painted and smooth substrates
Features
- High intensity metalized flexible prismatic vehicle marking with very high retroreflective performance (RA2)
- Red/white chevrons for clear and highly visible warning markings
- Suitable for painted, clean, smooth, non-porous and weather-resistant surfaces
- Single-layer construction – very thin and flexible, easy to handle and apply
- No edge sealing required, even on individually cut shapes
- 3M™ Controltac™ adhesive for easy positioning during dry application
- 3M™ Comply™ air-release channels for fast, simple and bubble-free installation
- Removable with heat, while designed for long-term adhesion on suitable substrates
- Typical exterior durability up to 3 years when properly processed
- Impact resistant with excellent angularity for good visibility from different viewing angles
Application limitations
- Not intended for regular regulatory traffic signs
- Use on stainless steel substrates is not recommended
- Do not apply over rivets, seams, hinges or overlapping substrates
- Do not stretch the film during application and do not overlap film joints
Standards & classifications
- Intended for retroreflective vehicle markings according to DIN 30710
- Retroreflective performance meets or exceeds EN 12899-1:2007 requirements for Class RA2 materials
- Vehicle marking film with retroreflection level equivalent to class RA2, C when used in accordance with the relevant DIN standards
- Suitable for marking vehicles with special rights under § 35 (6) StVO (depending on national regulations)
Technical data
| Manufacturer / brand | 3M™ |
| Product name | 3M™ Vehicle Warning Marking 823i VWM |
| Product type | Metalized, flexible, prismatic vehicle warning marking film |
| Colour | Red / white, chevron pattern |
| Retroreflective class | RA2, C (microprismatic) |
| Suitable substrates | Painted, clean, smooth, non-porous and weather-resistant surfaces |
| Substrate shape | Flat and moderately curved |
| Minimum application temperature | Approx. +15 °C (ambient and substrate) |
| Recommended application temperature range | +15 °C to +30 °C |
| Shelf life | Max. 1 year after shipment from 3M when stored correctly |
| Storage conditions | Room temperature 20 °C–24 °C, dry, out of direct sunlight; 40 %–60 % relative humidity |
| Dimensions of this set | 2 rolls, each 140 mm × 9 m (left-hand and right-hand chevrons) |
| Adhesive system | Pressure sensitive, repositionable adhesive with 3M™ Controltac™ and Comply™ air-release technology |
| Exterior durability | Typically up to 3 years (under normal use and correct application) |
Cleaning and maintenance
- Clean with liquid detergents that are suitable for high-quality painted surfaces
- Do not use abrasive cleaners or strong solvents; cleaner pH between 6 and 8
- High-pressure cleaning: max. 80 bar, max. 60 °C, minimum distance 1 m, spray angle approx. 15° to the film surface, wide fan jet

3M Deutschland GmbH, Carl-Schurz-Straße l, 41453 Neuss, Deutschland, 02131-14-2914 / 0, [email protected], www.3m.com/msds
No files available for download
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 50076308294781 | 7100320103 |
