DOCK ANGEL Loading Dock foldable Protection Barrier

Side folding Safety Barrier DOCK ANGEL for loading dock

DOCK ANGEL side folding Safety Barriers are primarily used to prevent people or forklifts from falling off the loading dock, which causes serious accidents and injuries.
However, thanks to the completely standardized design, this product can also be used for other applications.


• Safety Barrier (Guardrail) with gas springs, top rail, mid rail and toe board (100 mm in height).
• Robust construction for industrial use.
• State-of-the-art conception and quality.
• Pivot points made of Stainless Steel and maintenance-free igus® self-lubricating plain bearings.
• Double angled toe board - highly stable and no risk of injury - suitable for working environments where safety footwear is not mandatory.

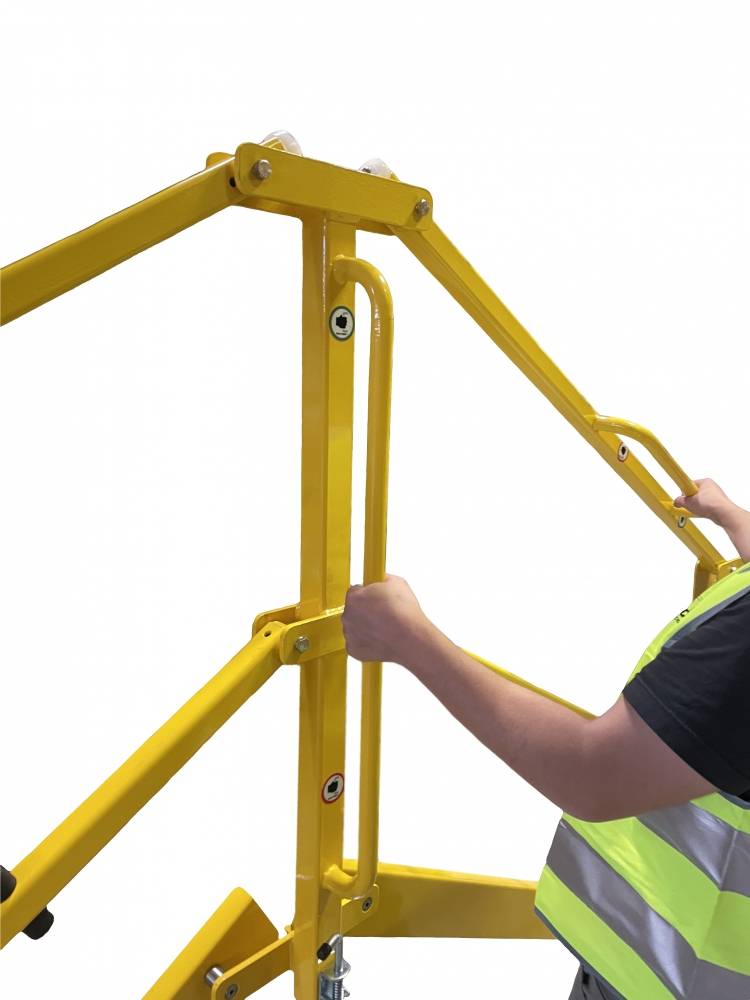

• Innovative locking mechanism with double function (with intermediate articulation from a width of 2,000 mm).
• Handles with 27 mm diameter, comfortable to use.
• Material thickness of the steel profiles: 4 mm.
• Eyelets for padlocks:  allow the DOCK ANGEL to be locked when closed.
• Optional upon request: safety switch, manufactured by EUCHNER (CET series).
• Made in SouthWest Germany.
• A product recommended by the BGHW (German Social Accident Insurance Institution for Trade and Goods Logistics) for securing loading docks - the BGHW was involved in the product's development.
• Certified by TÜV SÜD Product Service GmbH (production monitored, safety tested).

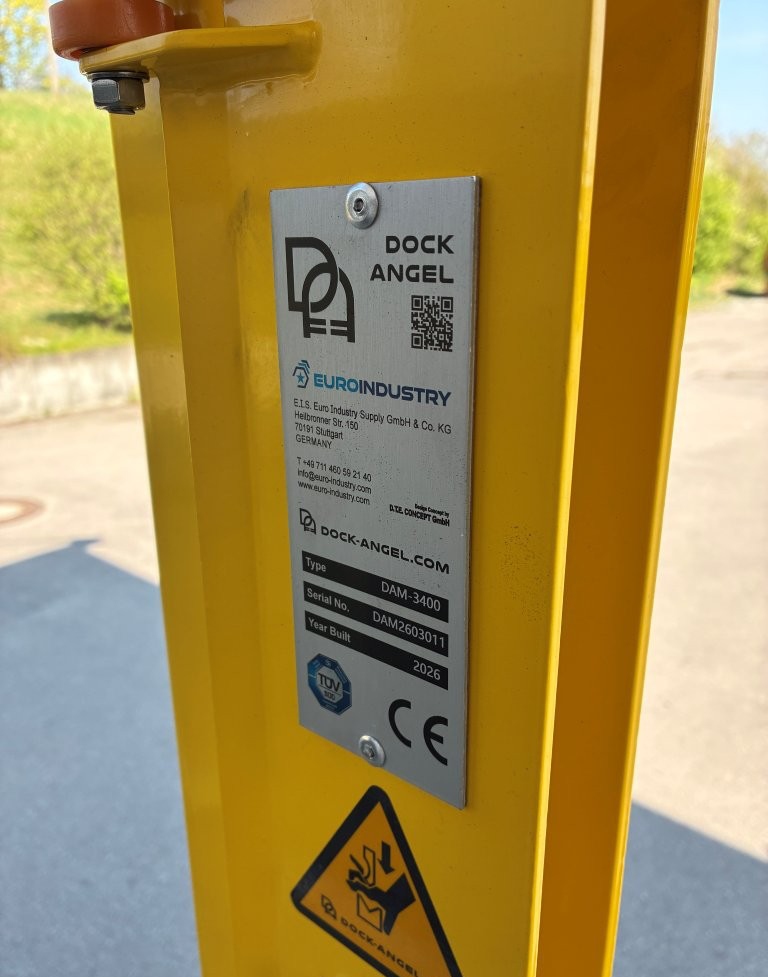

The product DOCK ANGEL has an identification plate with a serial number. Spare parts are available for a minimum period of 10 years,
also in the event of subsequent modification of the product by the manufacturer.



DOCK ANGEL DAS – one-piece safety barrier

One-piece, side-folding barrier without intermediate joint. Overall widths from 1,200 mm to 2,000 mm. Left-hand or right-hand opening version.

• Handrail height: 1,100 mm
• Overall depth: 250 mm

Type	Overall width	Clear opening width	Overall height (open)
DAS-1200	1,200 mm	905 mm	2,065 mm
DAS-1400	1,400 mm	1,105 mm	2,265 mm
DAS-1600	1,600 mm	1,305 mm	2,465 mm
DAS-1800	1,800 mm	1,505 mm	2,665 mm
DAS-2000	2,000 mm	1,705 mm	2,865 mm

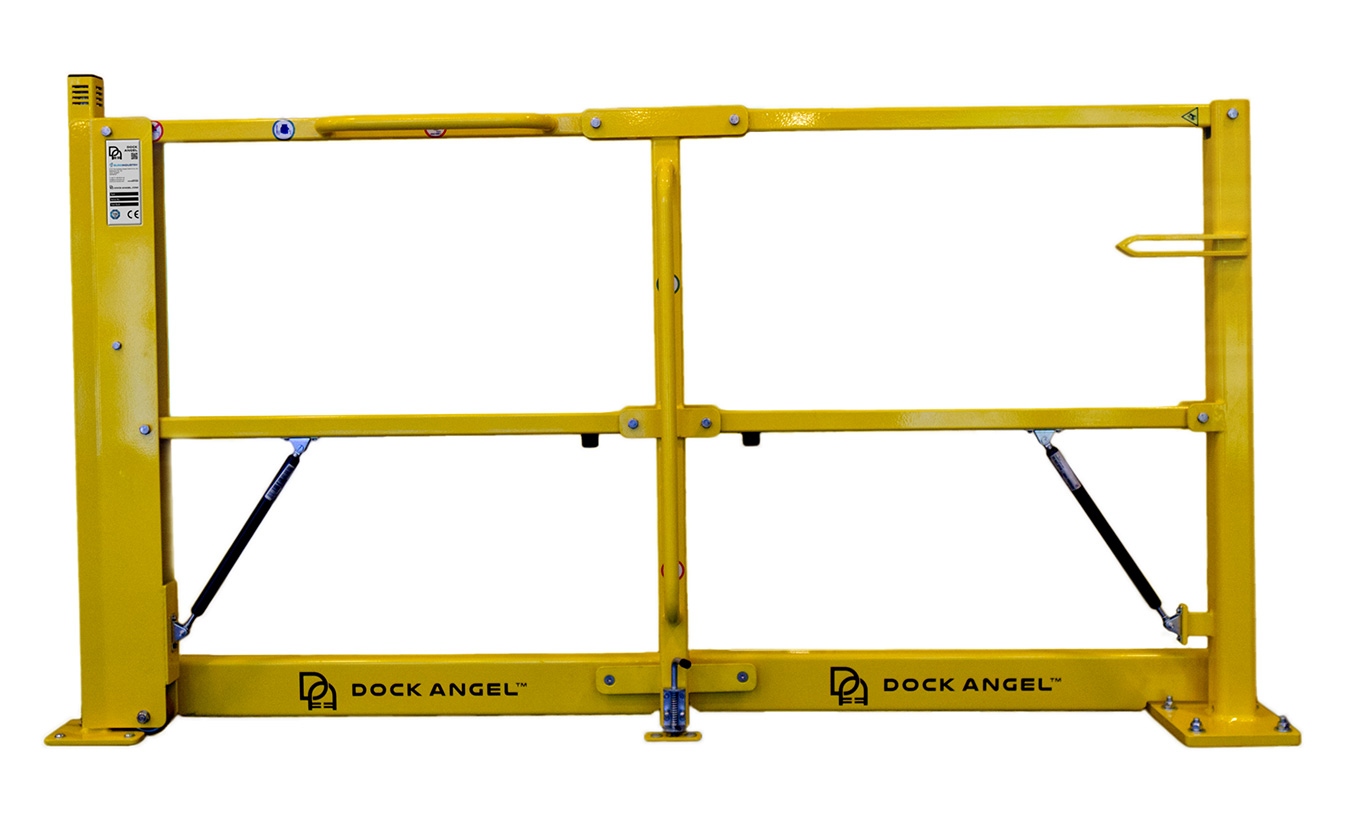

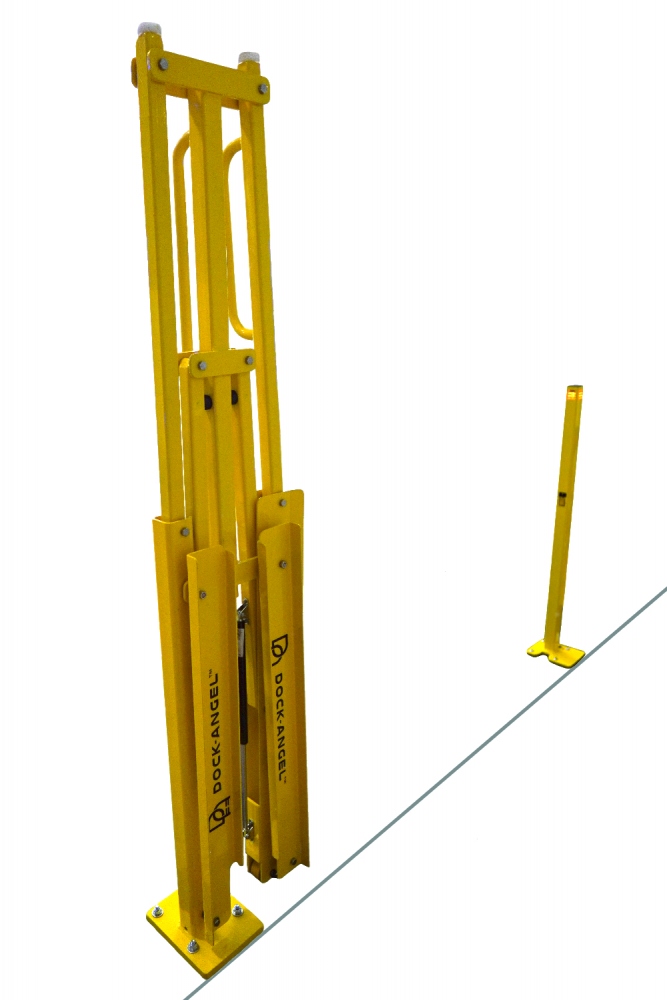

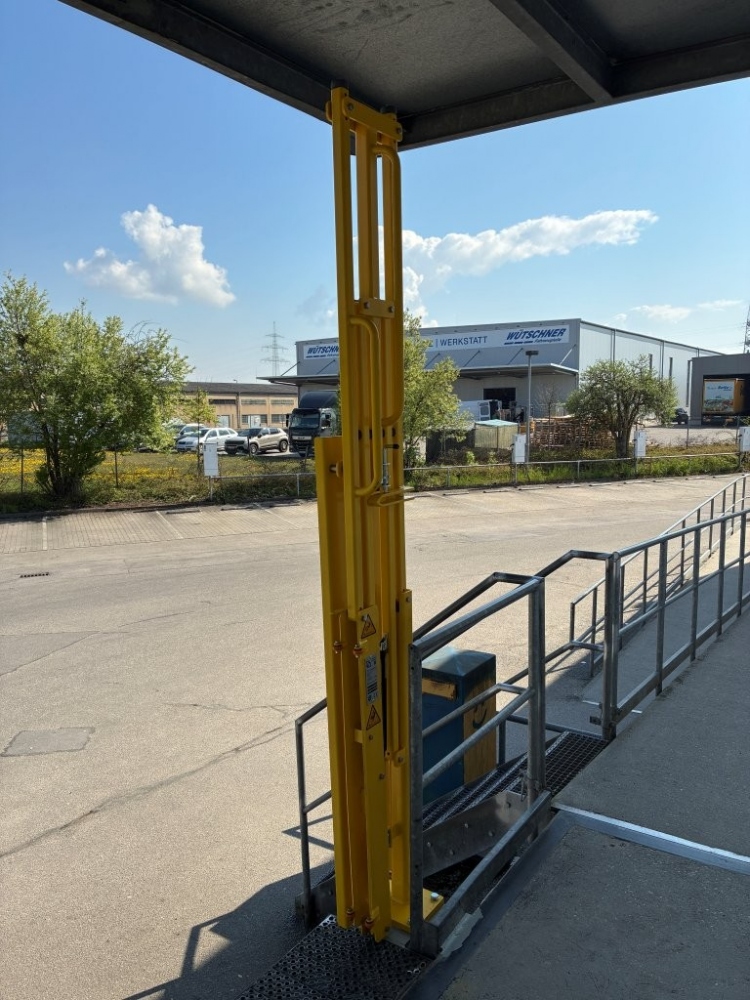

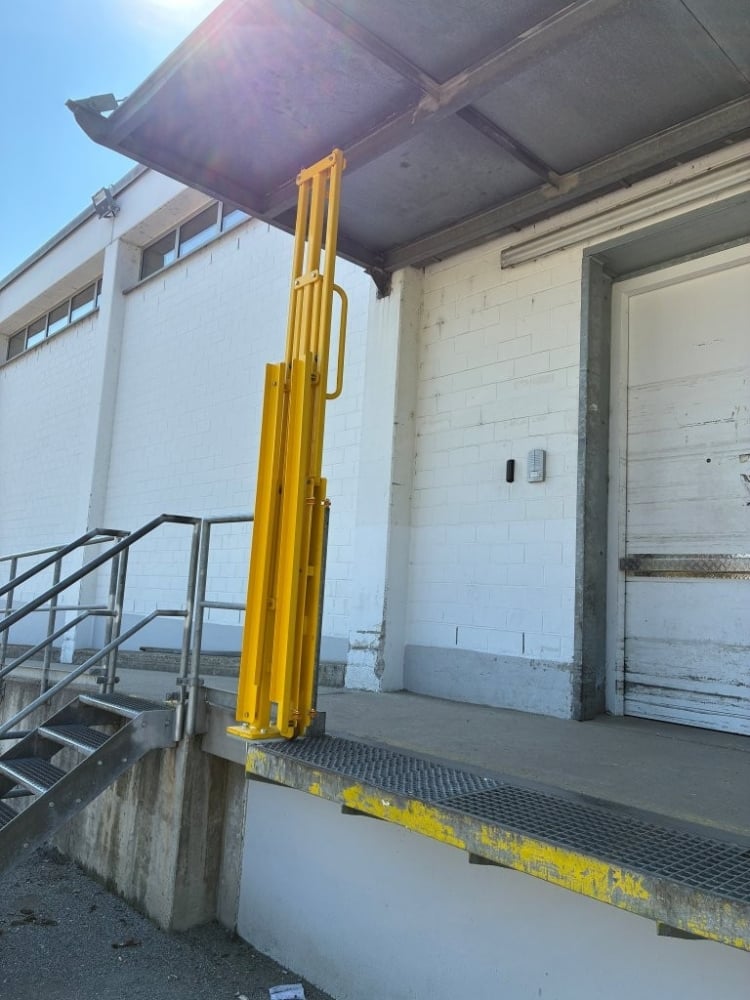

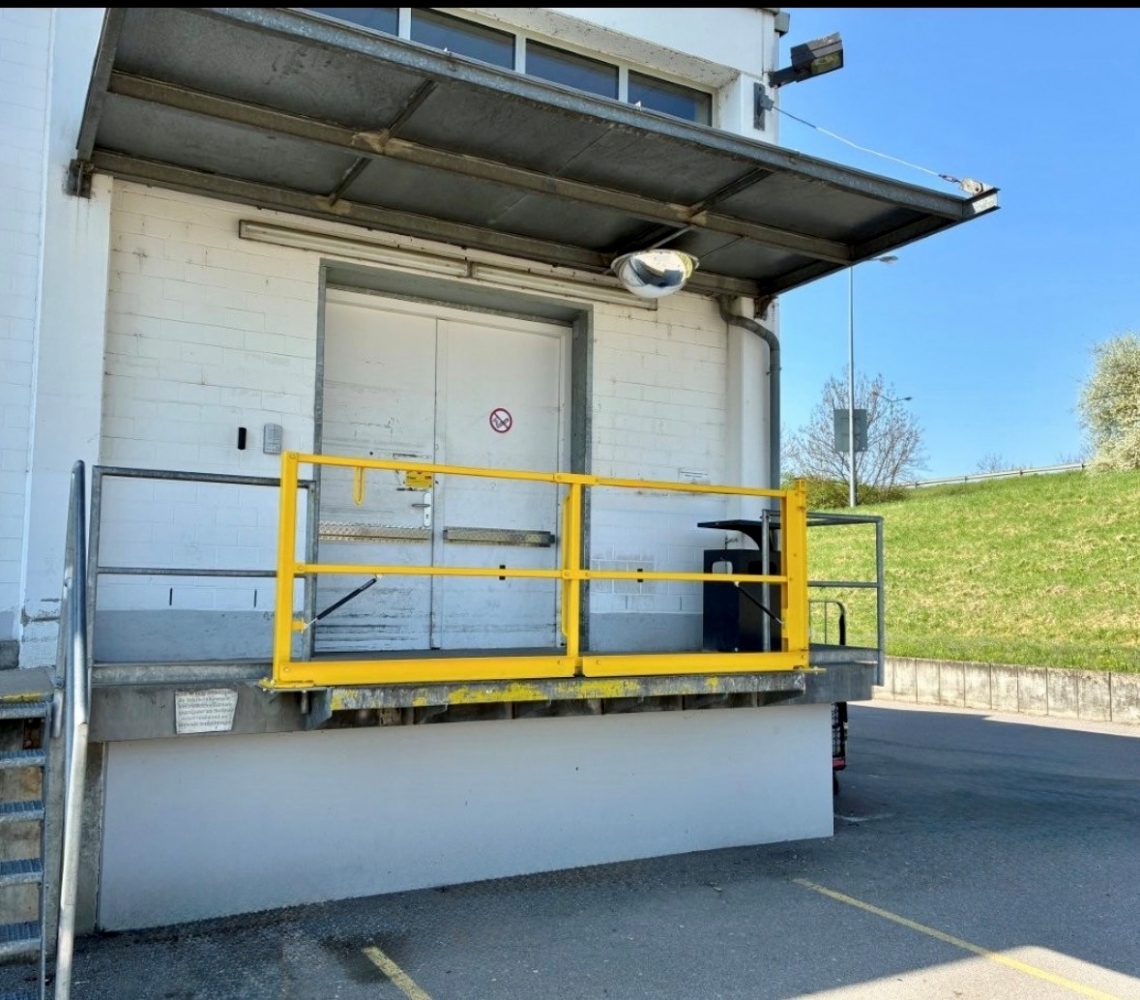

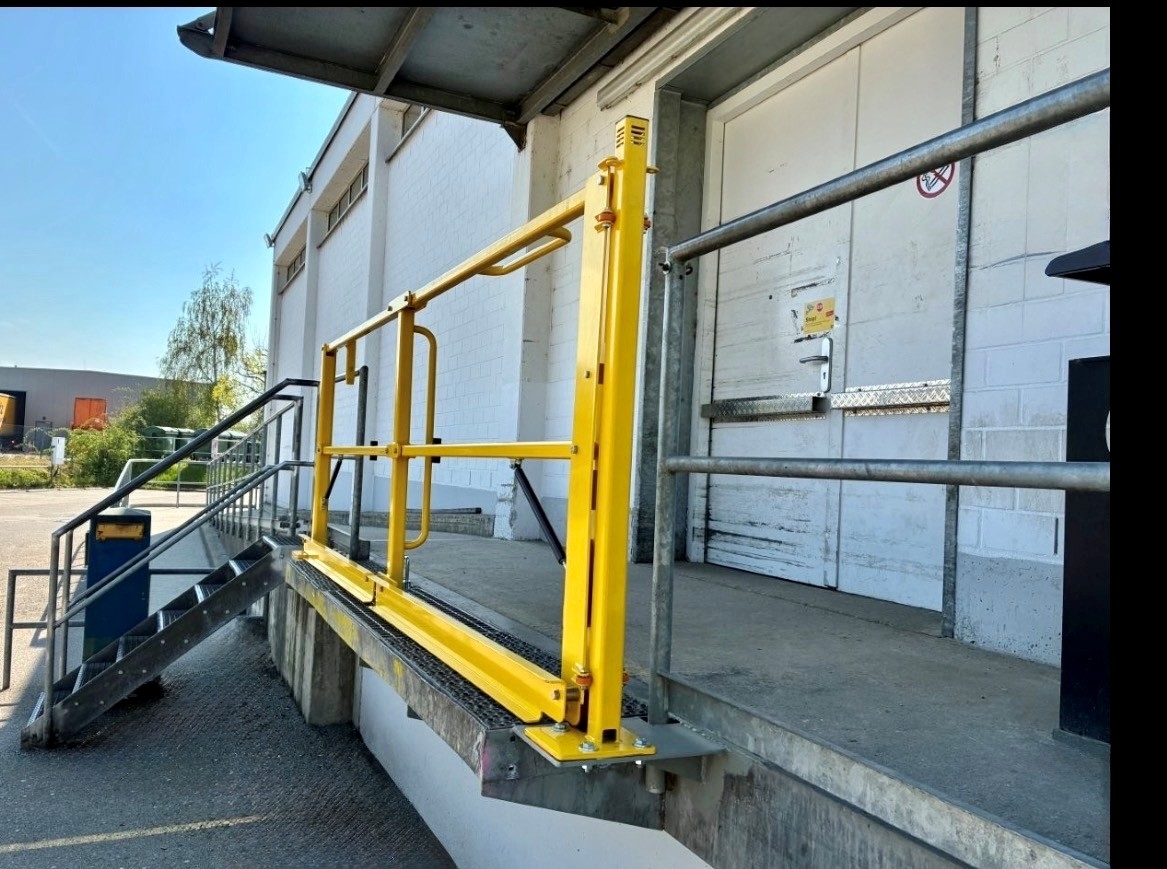

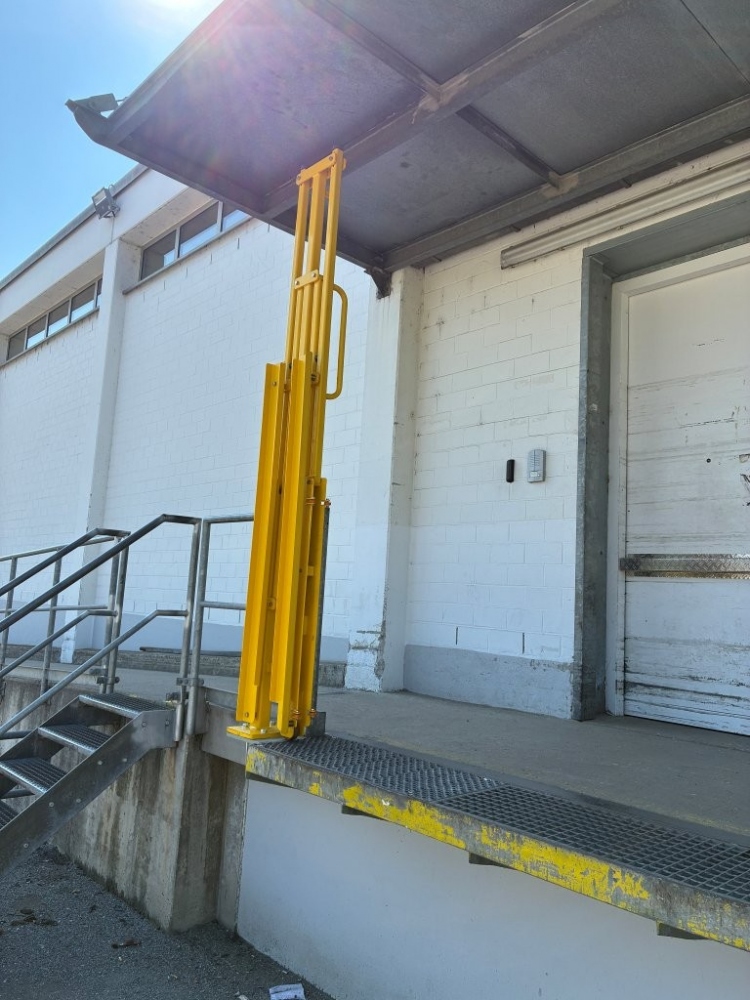

DOCK ANGEL DAM – safety barrier with intermediate joint, one-sided opening

One-sided opening safety barrier with intermediate joint. Overall widths from 2,000 mm to 3,800 mm. Left-hand or right-hand opening version.

• Handrail height: 1,100 mm
• Overall depth: 250 mm

Type	Overall width	Clear opening width	Overall height (open)
DAM-2000	2,000 mm	1,500 mm	1,950 mm
DAM-2100	2,100 mm	1,600 mm	2,000 mm

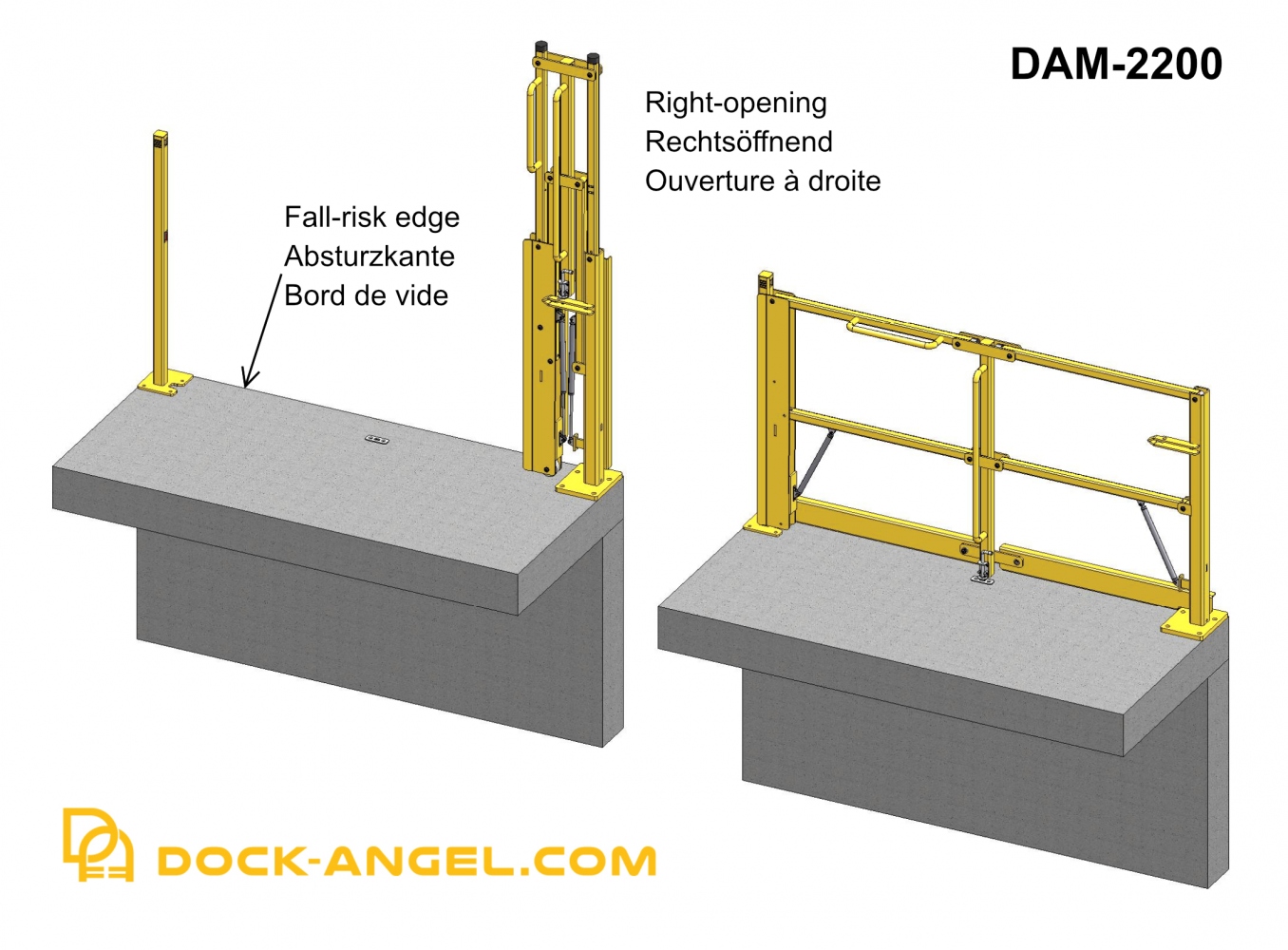

DAM-2200	2,200 mm	1,700 mm	2,050 mm
DAM-2400	2,400 mm	1,900 mm	2,150 mm
DAM-2500	2,500 mm	2,000 mm	2,200 mm
DAM-2600	2,600 mm	2,100 mm	2,250 mm
DAM-2800	2,800 mm	2,300 mm	2,350 mm
DAM-3000	3,000 mm	2,500 mm	2,450 mm

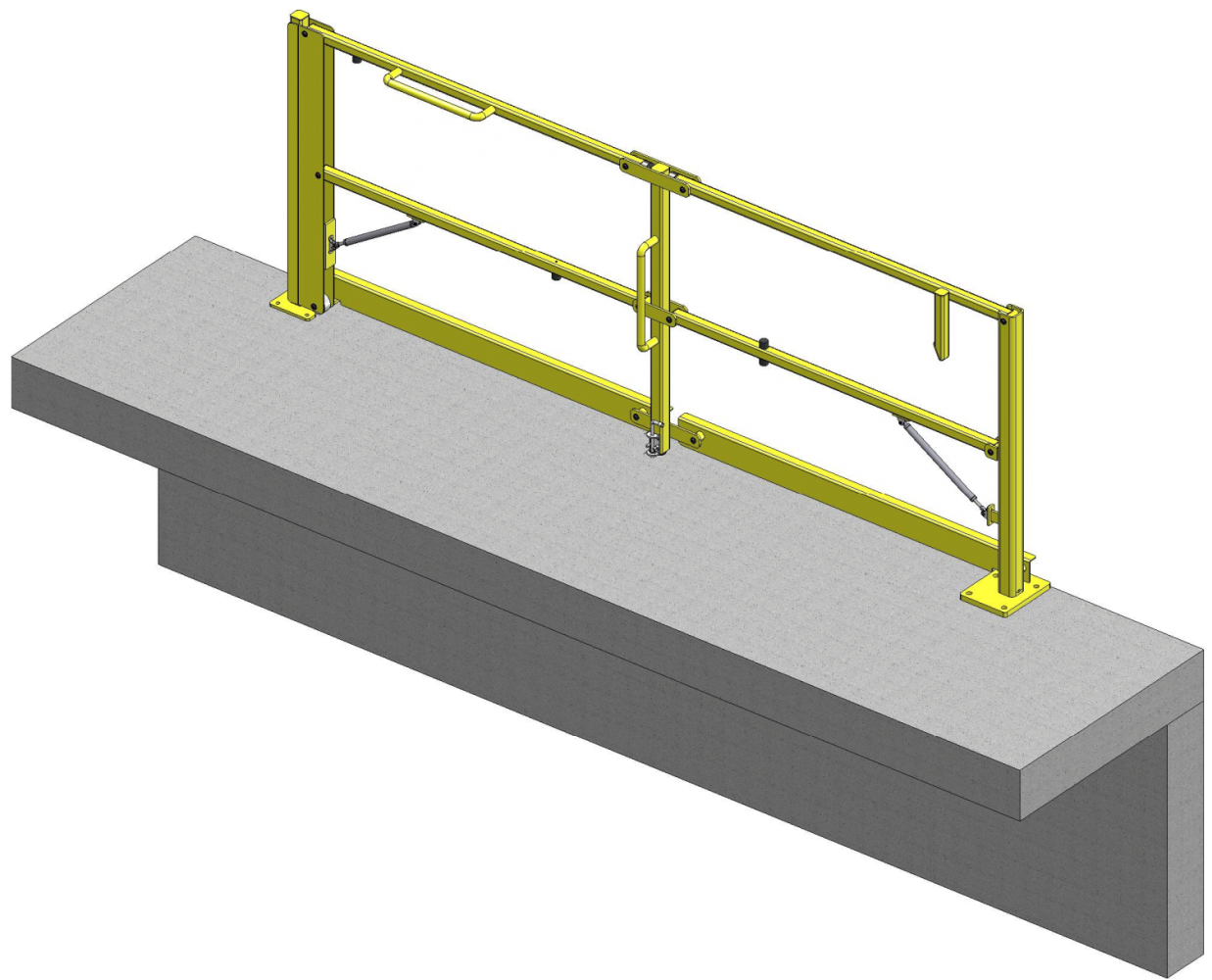

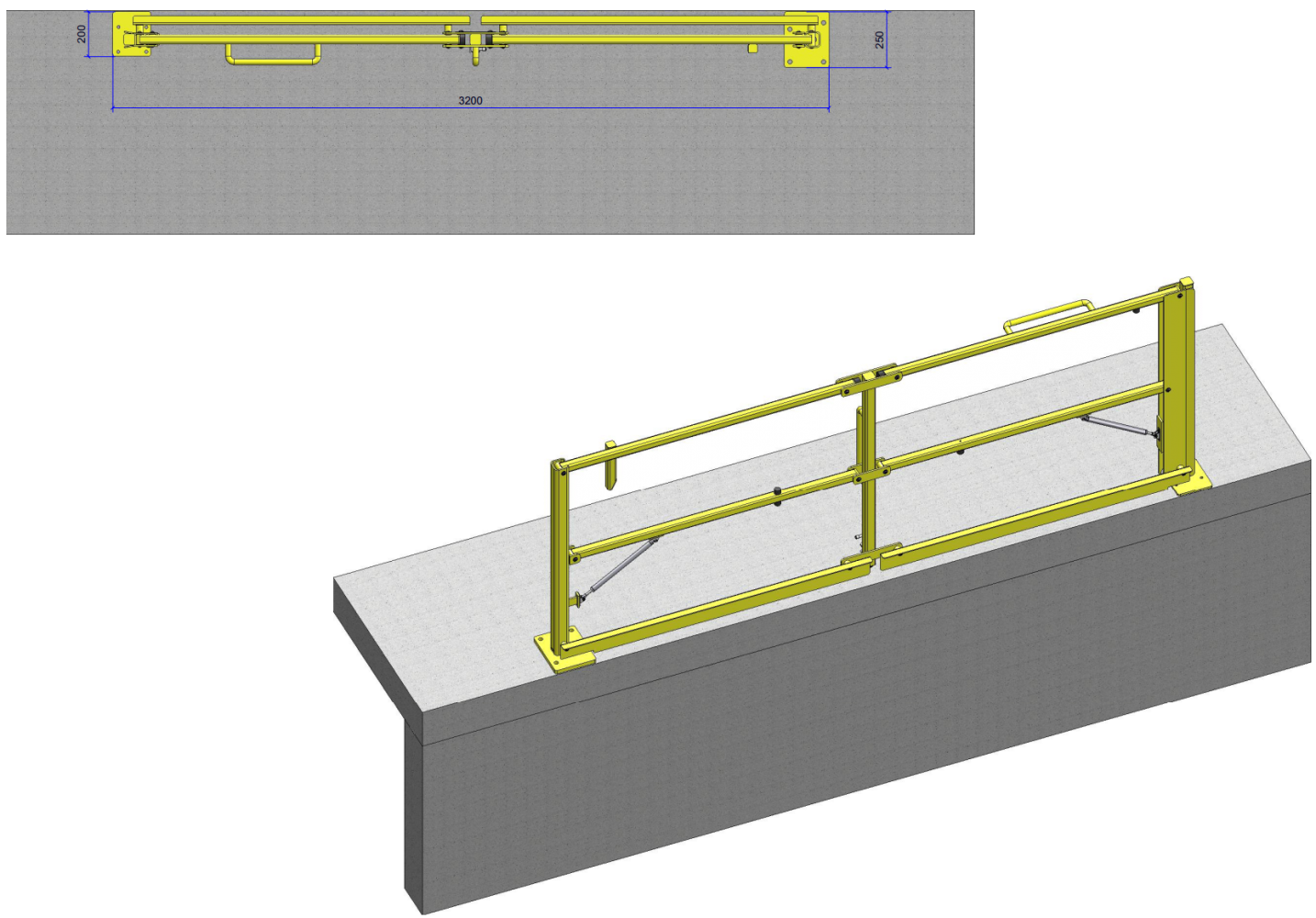

DAM-3200	3,200 mm	2,700 mm	2,550 mm
DAM-3400	3,400 mm	2,900 mm	2,650 mm
DAM-3600	3,600 mm	3,100 mm	2,750 mm
DAM-3800	3,800 mm	3,300 mm	2,850 mm



DOCK ANGEL DAL – two-piece safety barrier, left/right opening

Two-piece safety barrier with intermediate joint and opening from both sides. Overall widths from 4,000 mm to 6,400 mm.

• Handrail height: 1,100 mm
• Overall depth: 250 mm

Type	Overall width	Clear opening width	Overall height (open)
DAL-4000	4,000 mm	3,200 mm	1,987 mm
DAL-4200	4,200 mm	3,400 mm	2,037 mm
DAL-4400	4,400 mm	3,600 mm	2,087 mm
DAL-4600	4,600 mm	3,800 mm	2,137 mm
DAL-4800	4,800 mm	4,000 mm	2,187 mm
DAL-5000	5,000 mm	4,200 mm	2,237 mm
DAL-5200	5,200 mm	4,400 mm	2,287 mm
DAL-5400	5,400 mm	4,600 mm	2,337 mm
DAL-5600	5,600 mm	4,800 mm	2,387 mm
DAL-5800	5,800 mm	5,000 mm	2,437 mm
DAL-6000	6,000 mm	5,200 mm	2,487 mm
DAL-6200	6,200 mm	5,400 mm	2,537 mm
DAL-6400	6,400 mm	5,600 mm	2,587 mm

---

Material : high quality Steel. Stainless steel version 304L on request.

Surface finish : hot-dip galvanized and/or powder coating. The hot-dip galvanized coating last up to 50 years in rural environments and up to 25 years in more corrosive environments, such as coastal regions.

Color : traffic yellow RAL 1023 (standard) or every other RAL color if powder coated, or grey (hot-dip galvanized).

Optional DOCK ANGEL SignalLight 2.0 warning light: bright red LED light with contactless limit switch, flashing when the barrier is open (360° visibility).
Protection rating IP68 (dust-tight and waterproof). Operating voltage 220-230 V.
Supplied with a 5-metre power cable without plug; professional electrical connection to be provided on site.

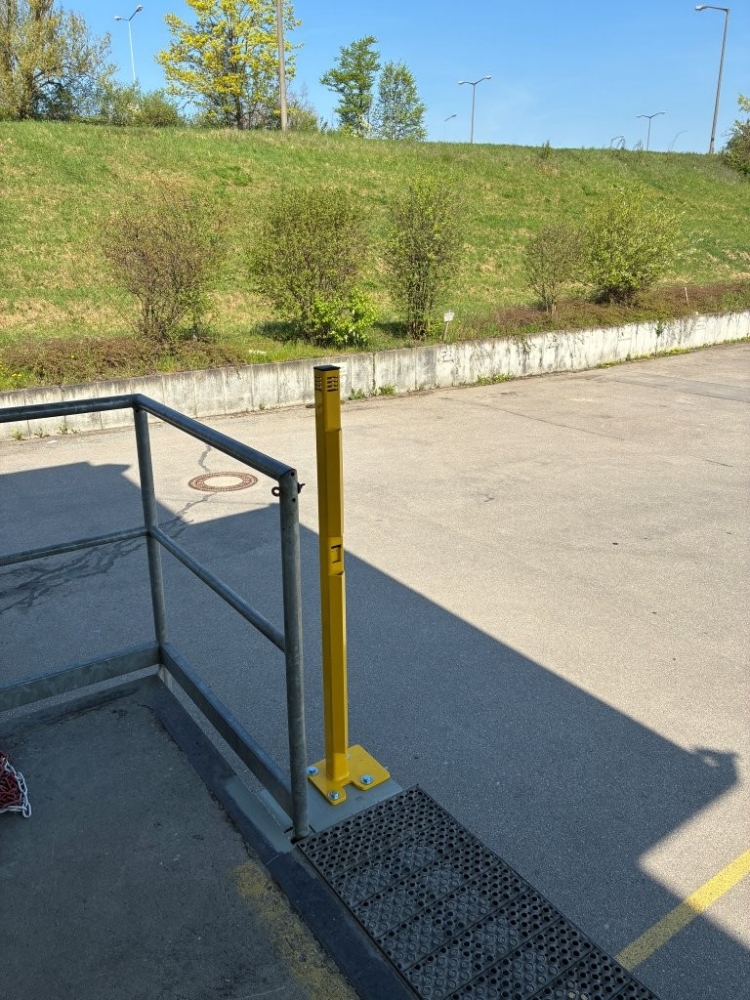

Fully integrated into the receiving post, pre-assembled and retrofittable at any time.
The DOCK ANGEL SignalLight 2.0 is made in Switzerland.







Information on product safety (Manufacturer, Contact)

E.I.S. Euro Industry Supply GmbH & Co. KG, Heilbronner Str. 150, 70191 Stuttgart, GERMANY, +49 (0) 711 460 59 21 40, [email protected], www.euro-industry.com
