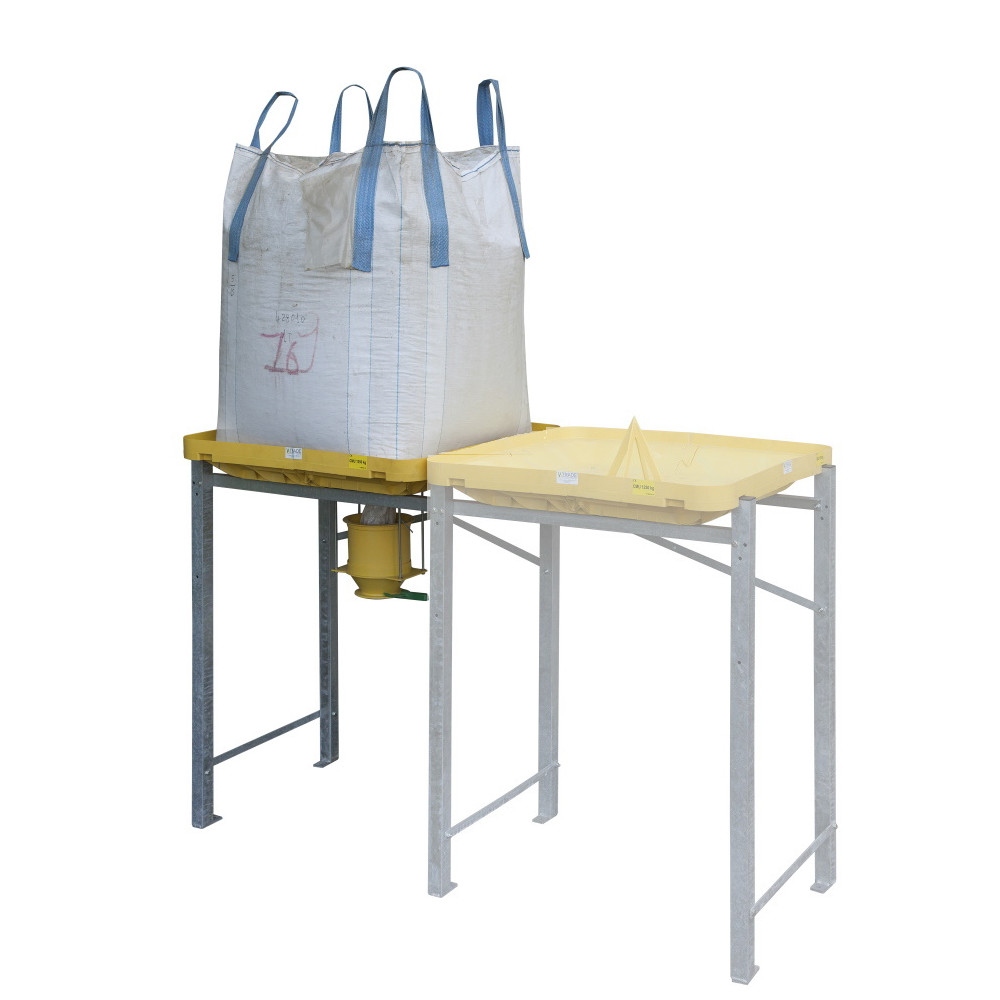

Modulobag extension table unit delivered with 2 emptying systems

Modulobag extension table unit delivered with 2 emptying systems

pics/Vidbag/vbtrade-modulobag-pour-vider-big-bag-unite-secondaire.jpg
  • pics/Vidbag/vbtrade-modulobag-pour-vider-big-bag-unite-secondaire.jpg
  • pics/Vidbag/vidbag-extension-modulobag-table.png
  • pics/Vidbag/modulo-bag-funnel–bag-with-cylinder.jpg
  • pics/Vidbag/funnel-bag-and-tip.jpg
  • y:hpbM15xjZpw
  • pics/Vidbag/logo-modulobag.jpg

518.78 518.78 incl. VAT (435.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

Manufacturer: Vidbag

Country of origin: FR/0001

Customs tariff number:

Weight per piece: 41.0 kg

Please give the recipient email address, as well as your name and email address.

Recipient
Sender

The fields marked with (×) are required.
Security (ANTI-SPAM)
( Examples: two + three = 5, three - five = -2 )
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

The fields marked with (×) are required.
Security (ANTI-SPAM)
( Examples: two + three = 5, three - five = -2 )
  • modulobag table extension for emptying BIGBAG
  • Suitable for all types of big bags with flat bottom and channel
  • Polyamide plate (corrosion free and easy to clean) and galvanized steel substructure.
Features:
  • Galvanized steel frame
  • Tray in polyamide 6, food contact quality
  • Capacity: 1250kg
  • Dimensions: 1190x1130x1530mm
  • Height under FUNNEL-BAG with cylinder: 897 mm / with tip 1250 mm
  • Passage width between the posts: 1070 mm and the top in hot-dip galvanized steel for the frame and the reinforcements in polyamide 6 for food contact
Delivery:
  • 1 table with 2 legs and fixing elements.

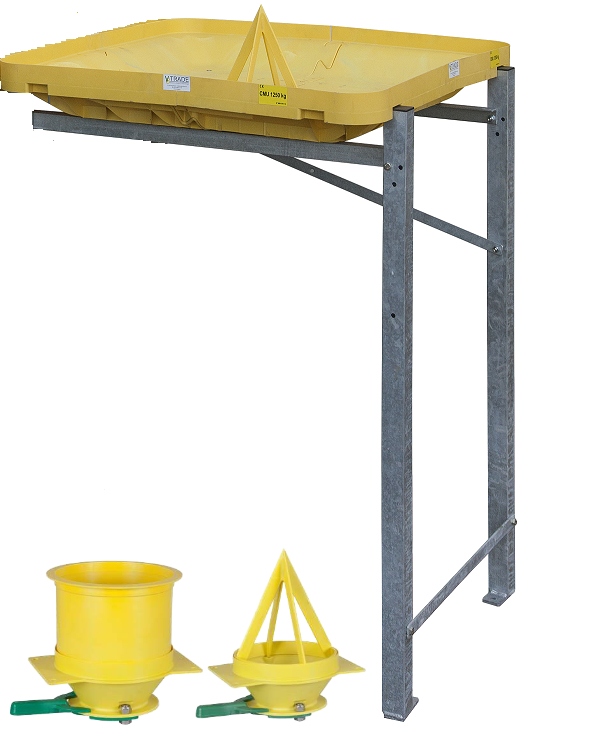

Each table is supplied with 1 FUNNEL-BAG, an opening-closing system consisting of:
  1. A removable CYLINDER for big-bags fitted with a chute.
  2. AND a removable TIP for big-bags with a flat bottom.
  • Installation instructions

No files available for download

Property GTIN/EAN MPN (Manufacturer Part Number)
- - MRCV3002261
