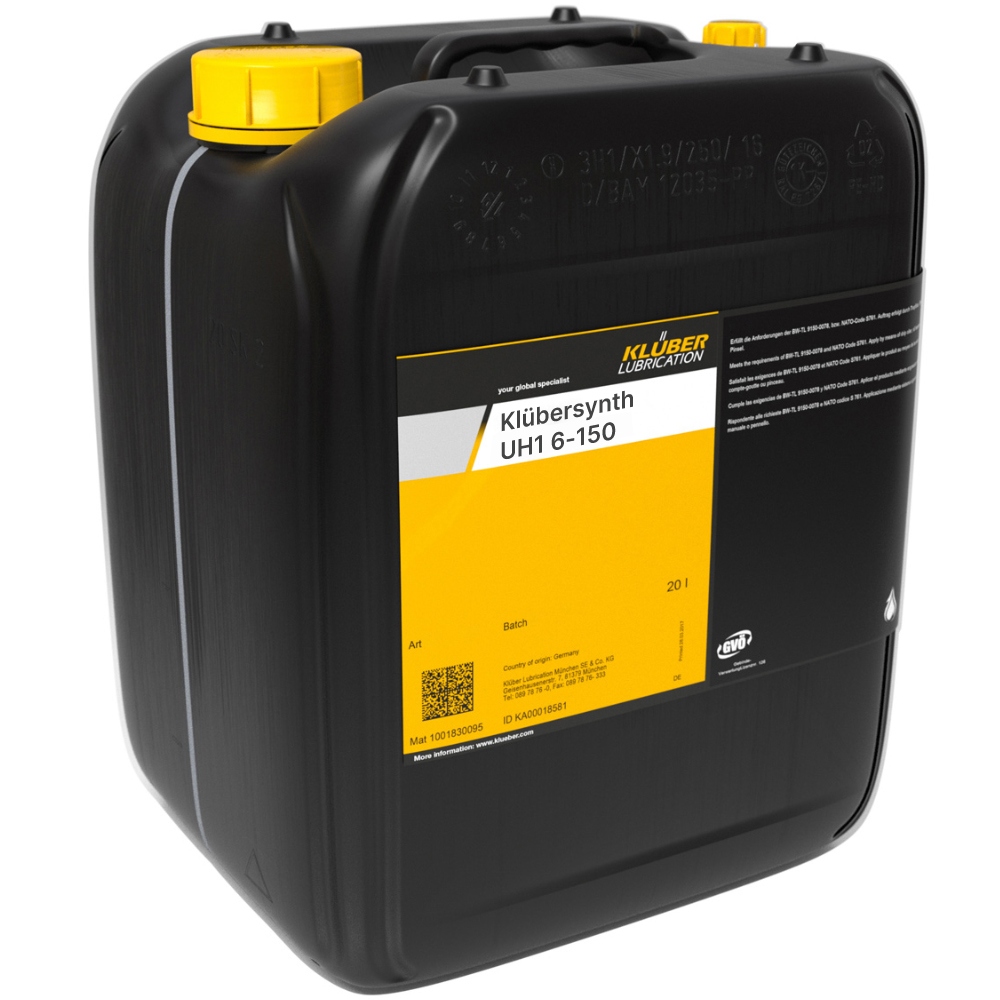

Klübersynth UH1 6-150 Synthetic high-performance gear oil 20L pail

Klübersynth UH1 6-150 Synthetic high-performance gear oil (ISO VG 150) for the food-processing and pharmaceutical industries | N° 096058

• Klübersynth UH1 6 is a synthetic high-performance gear oil based on polyglycol satisfying the growing requirements and increasing power density of modern gears.
• Klübersynth UH1 6 includes KlüberComp Lube Technology*, i.e. it is based on especially high-grade raw materials and advanced additives, enabling maximum performance in the lubrication of all gear components.
• Pack size: 20 l canister,
• Also available in: 1 l can, 5 l canister 200 l drum

Benefits for your application

• Registered as NSF H1 and certified according to ISO 21469
• High scuffing protection
• Good wear protection for gears and rolling bearings
• High micropitting resistance
• Good shear stability for reliable lubricant film formation
• Optimised for the lubrication of worm gears
• Excellent ageing and oxidation resistance
• Wide service temperature range due to good viscosity-temperature behaviour
• Low foaming tendency
• Energy savings due to optimised friction behaviour
• Good elastomer compatibility
• Approvals by numerous gear OEMs

Application

• Klübersynth UH1 6 oil is used for the lubrication of highly loaded spur, bevel and planetary gears, rolling and plain bearings as well as all types of toothed couplings, especially when exposed to high temperatures
• Klübersynth UH1 6 oil was especially developed for the lubrication of worm gears with steel/bronze pairings
• It can also be used for the lubrication of lifting, drive and transport chains

Technical specifications

Manufacturer number	0960580074
Service temperature, lower limit, °C	-35
Service temperature, upper limit, °C	160
Designation, DIN 51502	CLP PG 150
Designation, ISO 12925-1	CKC 150
NSF H1 registration number	124437
Density, DIN 51757, 15°C, kg/m³	1050
Flash point, DIN EN ISO 2592, Cleveland open cup, °C	≥ 220
Foam test, ISO 6247 / ASTM D892, 24°C, sequence I, ml	≤ 100/10
Foam test, ISO 6247 / ASTM D892, 24°C, sequence III, ml	≤ 100/10
Foam test, ISO 6247 / ASTM D892, 93.5°C, sequence II, ml	≤ 100/10
ISO viscosity grade, DIN ISO 3448	ISO VG 150
Kinematic viscosity, DIN EN ISO 3104 / DIN 53000-1 / ASTM D445 / ASTM D7042, 100°C, mm²/s	approx. 28.5
Kinematic viscosity, DIN EN ISO 3104 / DIN 53000-1 / ASTM D445 / ASTM D7042, 20°C, mm²/s	approx. 390
Kinematic viscosity, DIN EN ISO 3104 / DIN 53000-1 / ASTM D445 / ASTM D7042, 40°C, mm²/s	approx. 150
Viscosity index, DIN ISO 2909	≥ 210
Copper corrosion, DIN EN ISO 2160, 24 h, 100°C, corrosion degree	1 - 100 - 24
Steel corrosion, DIN ISO 7120 / ASTM D665, method A, 24 h, 60°C	rust-free
Pour point, DIN ISO 3016 / ASTM D97 / ASTM D5950 / ASTM D7346, °C	≤ -35
Ageing behaviour, DIN EN ISO 4263-4 / ASTM D2893, 312 h, 95°C, increase in viscosity at 100°C, %	≤ 6
FAG FE8 rolling bearing test, DIN 51819-3, D-7.5 / 80-80, wear of cage, mg	≤ 200
FAG FE8 rolling bearing test, DIN 51819-3, D-7.5 / 80-80, wear of rolling elements, mg	≤ 30
FZG scuffing test, DIN ISO 14635-1, A / 16.6 / 90, failure load stage	≥ 12
FZG scuffing test, DIN ISO 14635-1, A / 8.3 / 90, failure load stage	≥ 12
Minimum shelf life, in a dry, frost-free place, unopened original container, approx., months	36

Product description

Klübersynth UH1 6 oils are NSF H1 registered and therefore comply with FDA 21 CFR § 178.3570. The lubricants were developed for incidental contact with products and packaging materials in the food-processing, cosmetics, pharmaceutical or animal feed industries. The use of Klübersynth UH1 6 oils can contribute to increase reliability of your production processes. We nevertheless recommend conducting an additional risk analysis, e.g. HACCP.

Klübersynth UH1 6 is certified according to ISO 21469, thus supporting compliance with hygienic requirements of your production. You will find further information about ISO Standard 21469 on our website www.klueber.com.

Klübersynth UH1 6 clearly exceeds CLP requirements according to DIN 51517-3. Corresponding gears can be switched to Klübersynth UH1 6 without prior consultation with the gear manufacturer provided the general application notes are observed.

Klübersynth UH1 6 offers high scuffing load capacity. Gears are sufficiently protected against scuffing even at extremely high peak loads, vibrations or oscillations, or if no running-in was performed. The excellent wear protection of both gears and rolling bearings ensures that the service life calculated for the lubricated components is achieved, leading to lower maintenance and repair costs. The oil's high micropitting resistance of GFT ≥ 10 according to FVA 54/7 offers sufficient protection to gears that are subject to high loads and would normally be susceptible to this type of damage.
Klübersynth UH1 6 150, Klübersynth UH1-6-150

---

Hazard Information (CLP)

Signal word: Danger.

Hazard statements (H-phrases)

• H411: Toxic to aquatic life with long lasting effects.

Precautionary statements (P-phrases)

Prevention:

• P273: Avoid release to the environment.

Response:

• P391: Collect spillage.



Information on product safety (Manufacturer, Contact)

KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, [email protected], www.klueber.com
