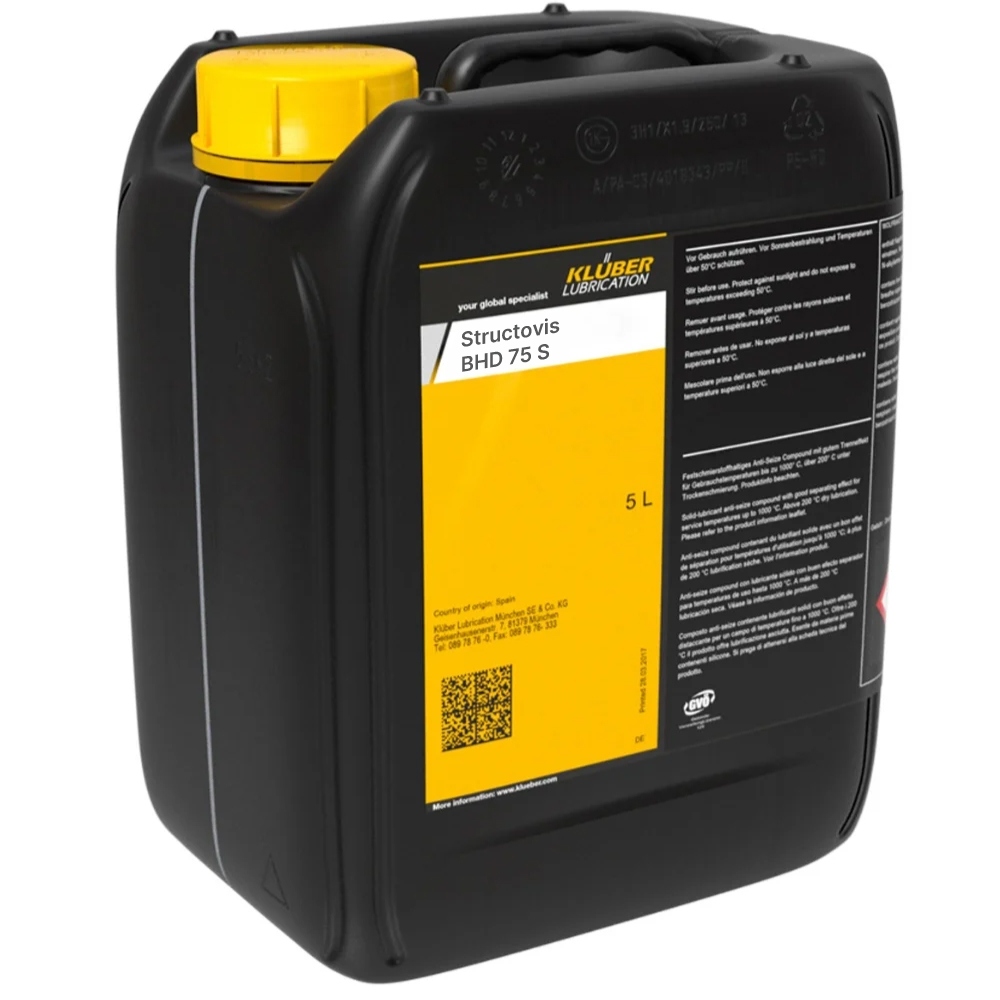

Klüber Structovis BHD 75 S Special chain oil 5L canister

STRUCTOVIS BHD 75 S Mineral oil-based special lubricant | N° 015061

• STRUCTOVIS BHD 75 S is a mineral oil-based special lubricant containing adhesion improvers.
• STRUCTOVIS BHD 75 S contains a flammable solvent. (The product data refer to the solvent-free active agent.)
• Your benefits at a glance: good wear protection, good corrosion protection, adhesive, noise dampening (depending on viscosity).
• Applications: lubrication of driving, control and conveyor chains; proven effective for the initial lubrication of steel link chains by the chain manufacturer.
• Volume: 5 L canister
• Also available in: 20 L canister

Benefits for your application

• Reliable chain lubrication due to
  • good wear protection
  • good corrosion protection
  • high adhesion reducing the risk of contamination due to oil leakage, especially at high chain speeds
• Depending on viscosity, some STRUCTOVIS HD types may reduce chain noise (AHD to CHD)
• Note: Product data of STRUCTOVIS BHD 75 S refer to the solvent-free active agent

Applications

• STRUCTOVIS HD lubricants are used for driving, control and conveyor chains.
• STRUCTOVIS BHD and BHD 75 S have proven particularly effective for the initial lubrication of steel link chains by the chain manufacturer.

Application notes

• Depending on viscosity, STRUCTOVIS HD can be applied by drip-feed or automatic lubrication systems, oil feeders or brush.
• When using automatic systems, please observe the maximum viscosity specified by the manufacturer.
• If STRUCTOVIS BHD is applied by the chain manufacturer, an immersion bath temperature between 80 and 90 °C is recommended.
• The low-viscosity HD types (up to 460 mm²/s at 40 °C) and BHD 75 S (please also observe safety data sheet) can also be applied in a cold-bath process.
• The chain should remain in the bath until no more air bubbles rise to the surface.

Technical specifications

Hazard Information (CLP)

​

Hazard Statements (H-phrases)

• H304: May be fatal if swallowed and enters airways.
• H372: Causes damage to organs (Central nervous system) through prolonged or repeated exposure if inhaled.
• H411: Toxic to aquatic life with long lasting effects.

Supplemental Hazard Statements

• EUH440: Accumulates in the environment and living organisms including in humans.
• EUH066: Repeated exposure may cause skin dryness or cracking.

Precautionary Statements (P-phrases)

Prevention:

• P201: Obtain special instructions before use.
• P260: Do not breathe vapours.
• P273: Avoid release to the environment.

Response:

• P301 + P310: IF SWALLOWED: Immediately call a POISON CENTER/ doctor.
• P331: Do NOT induce vomiting.
• P391: Collect spillage.

Hazardous components (label)

• naphtha (petroleum), hydrodesulphurized heavy; Low boiling point hydrogen treated naphtha
• O,O,O-triphenyl phosphorothioate

KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, [email protected], www.klueber.com
