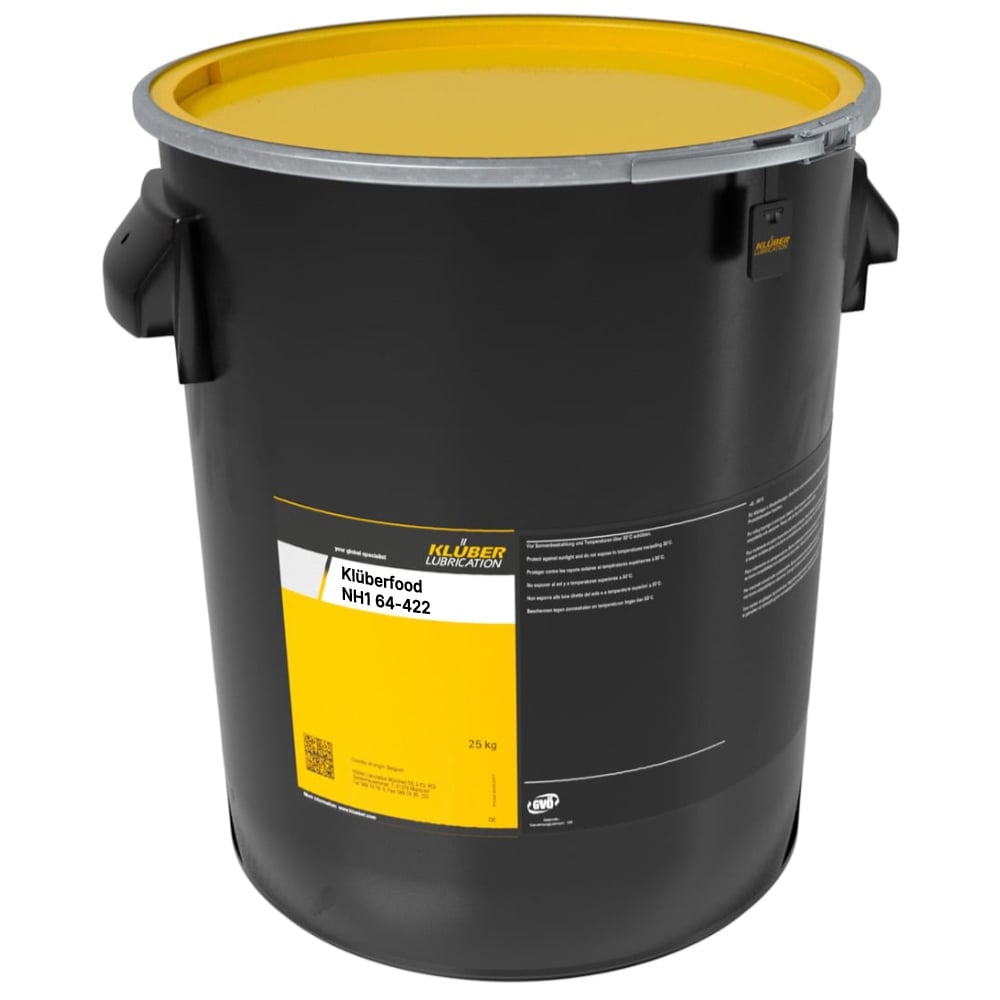

Klüberfood NH1 64-422 Bearing grease NLGI 2 for food industry 25kg
€ 2081.31 2,081.31 incl. VAT (1,749.00 excl. VAT), per piece *
Availability: on request
Packaging unit: 1 piece
Manufacturer: KLUBER
Country of origin: ES/0011
Customs tariff number: 34039900
Weight per piece: 26.8 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
Klüberfood NH1 64-422 is a synthetic special lubricating grease for the food and pharma processing industries (NLGI 2).
- Pack size: 25 kg bucket
- Also available in: 400 g cartridge, 400 g Lube-Shuttle cartridge, 1 kg can, 18 kg bucket, 180 kg drum
Applications
- Klüberfood NH1 64-422 is used for the lubrication of rolling bearings of machines and installations e.g. in the manufacture of grain, meal and animal feeds.
- It is intended for applications where there may be technically unavoidable contact with the food product.
- The use of Klüberfood NH1 64-422, an NSF H1-registered lubricant, can contribute to a safe product regime when used in accordance with food manufacturing regulations.
Specifications & Approvals
- NSF H1 registration number: 129522
- ISO 21469 certified
- Complies with FDA 21 CFR § 178.3570
Characteristics
- Good wear protection and component life resulting from high base oil viscosity
- Good sealing protection of bearing to prevent ingress of moisture and enhancing reliability
- ISO 21469 certified - supports the compliance with the hygienic requirements in your production plant. You will find further information on ISO Standard 21469 on our website www.klueber.com.
Technical specifications
| Article number | 0960760177 |
| Colour space | beige |
| Texture | homogeneous |
| Service temperature, lower limit | -30 °C |
| Service temperature, upper limit | 140 °C |
| NSF H1 registration number | 129522 |
| Density, Klüber method: PN 024, 20°C | approx. 1.00 g/cm³ |
| NLGI grade, DIN 51818 | 2 |
| Worked penetration, DIN ISO 2137 / ASTM D217, 25°C, lower limit | 265 0.1 mm |
| Worked penetration, DIN ISO 2137 / ASTM D217, 25°C, upper limit | 295 0.1 mm |
| Shear viscosity, Klüber method: PN 008@DIN 53019-1, equipment: rotational viscometer, 25°C, 300 s⁻¹, lower limit | 6000 mPas |
| Shear viscosity, Klüber method: PN 008@DIN 53019-1, equipment: rotational viscometer, 25°C, 300 s⁻¹, upper limit | 12000 mPas |
| Kinematic viscosity of the base oil, DIN EN ISO 3104 / DIN 53000-1, based on standard / ASTM D445 / ASTM D7042, 100°C | approx. 45 mm²/s |
| Kinematic viscosity of the base oil, DIN EN ISO 3104 / DIN 53000-1, based on standard / ASTM D445 / ASTM D7042, 40°C | approx. 420 mm²/s |
| Oil separation, DIN ISO 22285, 168 h, 40°C | ≤ 3 % by weight |
| Flow pressure, DIN 51805-2, -30°C | ≤ 1400 mbar |
| Speed factor (n x dm) | approx. 300000 mm/min |
| Water resistance, DIN 51807-1, 3 h, 90°C | 0 - 90 rating |
| Mineral Oils associated with, MOAH (Mineral Oil Aromatic Hydrocarbons) | No component of recipe |
| Mineral Oils associated with, MOSH (Mineral Oil Saturated Hydrocarbons) | No component of recipe |
| Minimum shelf life from the date of manufacture - in a dry, frost-free place and in the unopened original container, approx. | 24 months |
Product Description
Your requirements - our solution
Klüberfood NH1 64-422 is a special lubricating grease composed of a synthetic base oil and silicate thickener. This special NSF H1 registered grease has been designed for the lubrication of rolling bearings under the varying operating conditions of the foodprocessing industry.
Klüberfood NH1 64-422 is NSF H1 registered and therefore complies with FDA 21 CFR § 178.3570. The lubricant was developed for incidental contact with products and packaging materials in the food-processing, cosmetics, pharmaceutical or animal feed industries. The use of Klüberfood NH1 64-422 can contribute to increase reliability of your production processes. We nevertheless recommend conducting an additional risk analysis, e.g. HACCP.
Application notes
- Klüberfood NH1 64-422 is applied by standard commercial grease application equipment. e.g. spatula or grease gun.
- Before applying Klüberfood NH1 64-422, all lubrication points should be thoroughly cleaned to ensure maximum hygiene conditions exist, mandatory for foodsafe H1 lubrication.
- If the production process does not allow cleaning we recommend the existing grease be replaced by purging the system during relubrication.
- Please do not hesitate to contact your local Klüber representative in respect of grease miscibility, relubrication procedures etc.
- For more details on MOSH/MOAH and their assessment in H1 lubricants, please visit our website or contact your Klüber representative.
Hazard statements (CLP)
Signal word: No signal word.
Hazard statements (H-statements)
- H412: Harmful to aquatic life with long lasting effects.
Precautionary statements (P-statements)
Prevention:
- P273: Avoid release to the environment.
KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, [email protected], www.klueber.com
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 5063530125730 | 0960760177 |
