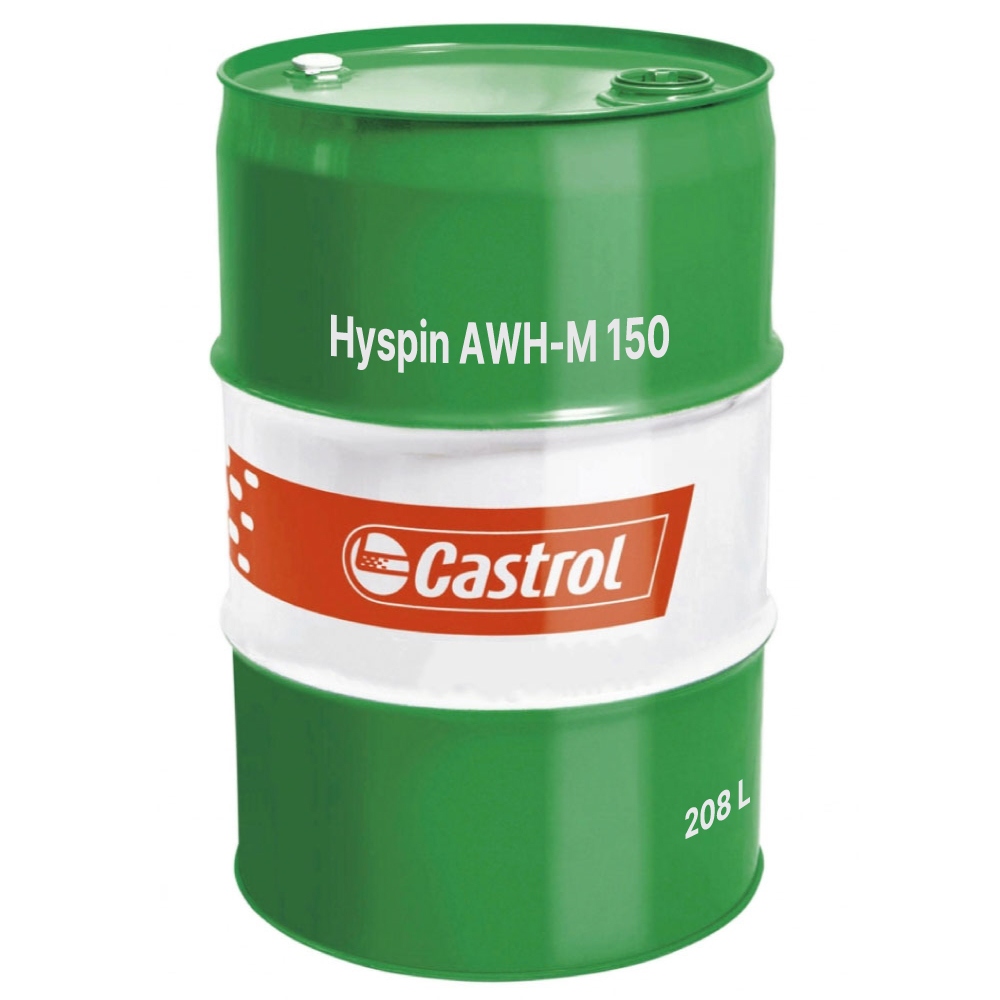

Castrol Hyspin AWH-M 150 Anti-wear hydraulic oil HVLP ISO VG 150, 208L
€ 1145.32 1,145.32 incl. VAT (962.45 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Castrol
Country of origin: BE/0017
Customs tariff number: 27101983
Weight per piece: 208.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
Castrol Hyspin™ AWH-M 150 is a shear-stable, high viscosity index anti-wear hydraulic oil (ISO VG 150) designed to help maintain viscosity characteristics over a wide temperature range.
- Pack size: 208 L drum
- Also available in: 20 l canister
Applications
- Outdoor equipment operating across wide temperature ranges, including cold start-up and high temperature continuous running (e.g. off-highway and marine applications)
Indoor manufacturing equipment with control systems requiring minimal viscosity change with temperature (e.g. precision machine tools)- Suitable for use in very cold environments due to a very low pour point
- Stable in the presence of water and separates water contamination rapidly upon standing
- Compatible with commonly used nitrile, silicone and fluorinated (e.g. Viton) seal materials
Specifications & Approvals
- DIN 51502 classification: HVLP
- ISO 6743/4: Hydraulic Oils Type HV
- DIN 51524 Part 3
- Cincinnati Lamb (Milacron) P 68-69-70
- Parker Hannifin (Denison) HF0
- US Steel 126 & 127
- Eaton (formerly Vickers) I-286-S & M-2950-S
Characteristics
- High viscosity index and low pour point enables use over a wide temperature range
- Good shear stability helps avoid excessive loss in viscosity due to mechanical shearing
- Excellent wear protection for hydraulic pumps, helping to reduce downtime caused by unscheduled maintenance
- Excellent water separation and hydrolytic stability increases equipment reliability, helping to prolong lubricant life and reduce downtime
- Good filterability supports a cleaner system with less frequent filter changes
Technical specifications
| ISO Viscosity Grade | 150 |
| Density @ 15°C / 59°F, kg/m³ (ISO 12185) | 890 |
| Kinematic viscosity @ 40°C / 104°F, mm²/s (ISO 3104) | 150 |
| Kinematic viscosity @ 100°C / 212°F, mm²/s (ISO 3104) | 18.01 |
| Viscosity Index (ISO 2909) | >130 |
| Pour Point, °C/°F (ISO 3016) | -30/-22 |
| Flash Point - open cup method, °C/°F (ISO 2592) | 232/450 |
| Flash Point - closed cup method, °C/°F (ISO 2719) | 220/428 |
| Foam Sequence I - tendency/stability, ml/ml (ISO 6247) | 20/0 |
| Water Separation @ 82°C / 180°F (40/37/3), min (ISO 6614) | 20 |
| Air Release @ 50°C / 122°F, min (ISO 9120) | 24 |
| FZG Gear Scuffing test - A/8.3/90 failure load stage (ISO 14635-1) | 12 |
| Rust test - distilled water (24 hrs) (ISO 7120) | Pass |
| Rust test - synthetic seawater (24 hrs) (ISO 7120) | Pass |
Product Description
The Castrol Hyspin™ AWH-M range uses a shear-stable additive system to help maintain viscosity characteristics during prolonged use across a wide temperature range. It provides very good corrosion and wear protection, good thermal and oxidative stability, and is stable in the presence of water, separating water contamination rapidly upon standing.
BP Europa SE, Erkelenzer Straße 20, 41179 Mönchengladbach, GERMANY, +49 800 7235 074, [email protected], www.bp.com
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 4008177167317 | 15EFFF |
