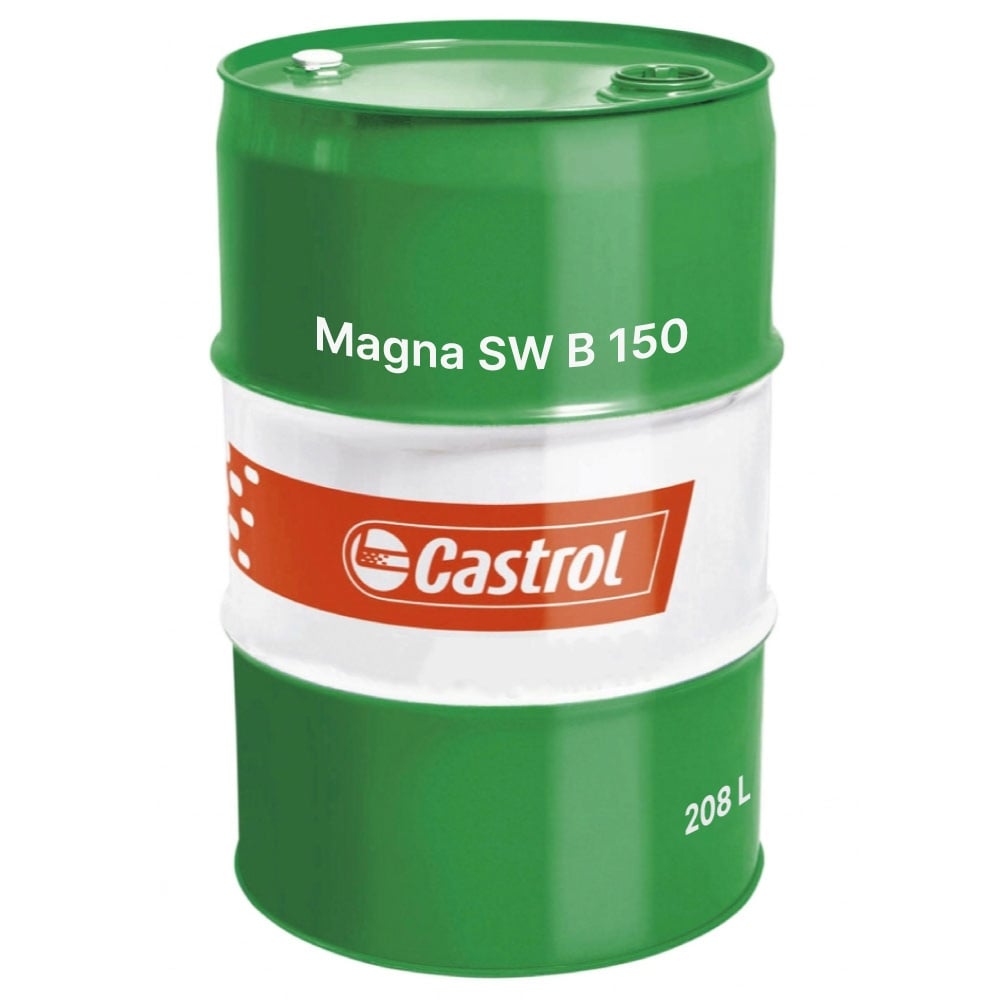

Castrol Magna SW B 150 Slideway Oil CGLP for machine tools 208L
€ 1040.6 1,040.60 incl. VAT (874.45 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Castrol
Country of origin: DE/0004
Customs tariff number: 27101999
Weight per piece: 208.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
Castrol Magna SW B 150 (previously called Magnaglide™ B grades) is a slideway oil (CGLP, ISO VG 150) for machine tools, designed for the lubrication of slideways and related machine components where controlled frictional behaviour, high adhesivity and a strong lubricating film are required.
- Pack size: 208 L drum
- Also available in: 20 L canister
Applications
- Lubrication of slideways on machine tools
Suitable for high loads and low sliding speeds- For vertical and horizontal guideways
- Can also be used for lead screw and nut systems
- Suitable for gears of feed mechanisms and oil lubricated milling heads
Standards & approvals
- DIN 51502 CGLP
Features
- Controlled frictional characteristics for guideway sliding conditions
- High adhesivity and high film strength
- Accurate sliding movement leading to improved workpiece surface finish
- Excellent protection of slideways
- Good wash off characteristics
- Good compatibility with known construction materials of slideways
- Meets Schmidt-Coburg criteria for friction and demulsibility properties
Technical data
| Manufacturer no. | 1585F1 |
| Appearance (Visual) | Clear and Bright |
| Density at 15°C (ISO 12185 / ASTM D4052) | 880 kg/m³ |
| Kinematic Viscosity at 40°C (ISO 3104 / ASTM D445) | 150 mm²/s |
| Kinematic Viscosity at 100°C (ISO 3104 / ASTM D445) | 14.8 mm²/s |
| Viscosity Index (ISO 2909 / ASTM D2270) | 98 |
| Flash Point, open cup method (ISO 2592 / ASTM D92) | 238 °C |
| Pour Point (ISO 3016 / ASTM D97) | -27 °C |
| Copper corrosion, 3 h at 100°C (ISO 2160 / ASTM D130) | 1b |
| Rust test, distilled water, 24 h (ISO 7120 / ASTM D665A) | Pass |
| FZG Gear Scuffing test A/8.3/90 (ISO 14635-1) | 12 |
Product description
The Magna SW B oils are based on highly refined mineral oils and additives to give controlled frictional characteristics in guideway sliding conditions. They are recommended for high performance lubrication of machine tool slideways and offer excellent water wash off characteristics.
Handling & storage
- Store in accordance with local regulations.
- Store in a dry, cool and well ventilated place.
- Protect from heat and direct sunlight.
- Keep container tightly closed until use.
- Opened containers should be carefully resealed and stored upright.
BP Europa SE, Erkelenzer Straße 20, 41179 Mönchengladbach, GERMANY, +49 800 7235 074, [email protected], www.bp.com
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 4008177090073 | 1585F1 |
