MATO pneuMATO-fill 15‑d Pneumatic grease filler for 15 kg pails

MATO pneuMATO-fill 15‑d Pneumatic grease filler for 15 kg pails

€ 951.94 951.94 incl. VAT (799.95 excl. VAT), per piece *

Availability: on request

Packaging unit: 1 piece

More…

Manufacturer: MATO

Country of origin: DE/0004

Customs tariff number: 84131100

Weight per piece: 10.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

five - five = ?

( Examples: two + three = 5, three - five = -2 )

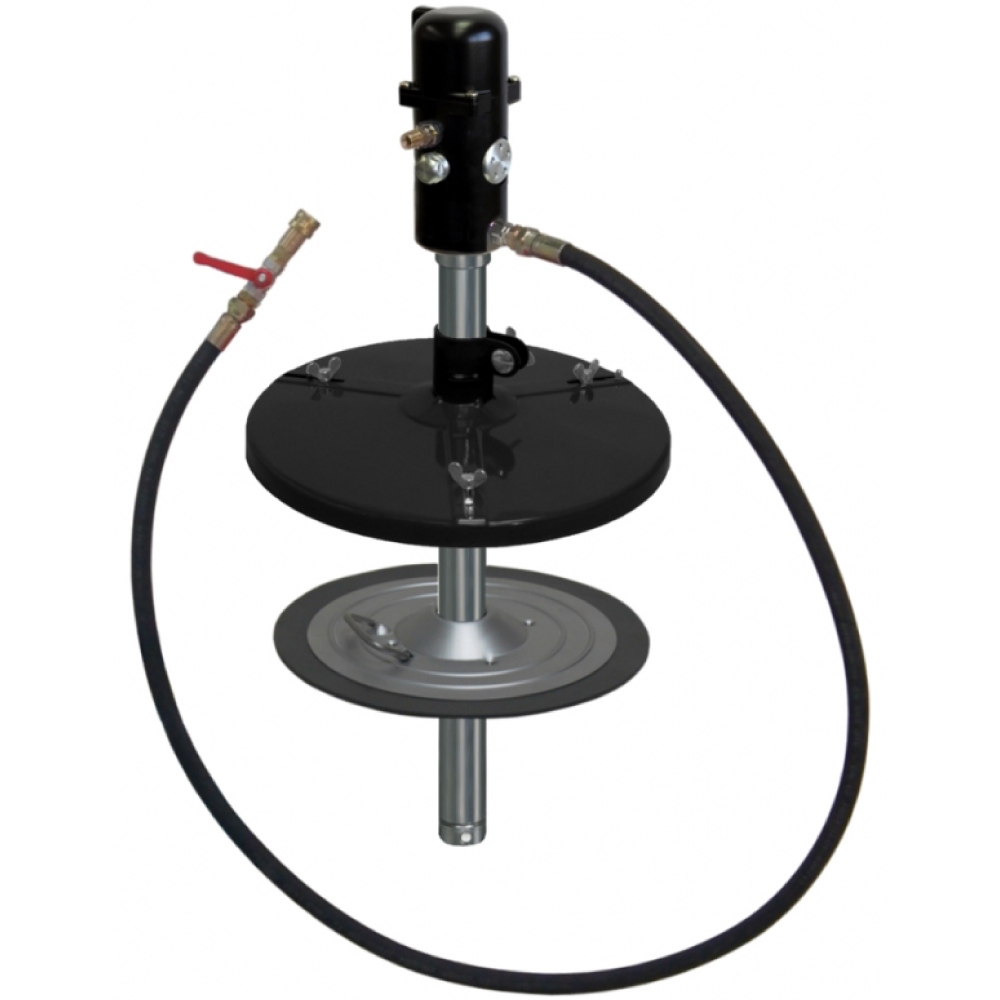

The Pneumatic filler pump pneuMATO-fill 15-d, static is designed for filling centralised lubrication system reservoirs. It is suitable for 15 kg pails with an inner diameter of 255–282 mm and is equipped with a quick release coupler for convenient operation. The assembly consists of a pneumatic pump, 2 m DN12 (1/2") hose with quick release coupling (ISO-Norm 7241B DN6 / 1/4"), a follower plate and a self-centering pail lid. Designed for grease NLGI class 000 – 2. Please note: pump not suitable for high-pressure applications.

Applications

Filling centralised lubrication system reservoirs
For grease NLGI 000 – 2
Not suitable for high pressure greasing applications

Characteristics

Pneumatic grease pump for easy filling
Quick release coupling to ISO-Norm 7241B DN6 / 1/4"
Follower plate and self-centering lid included
Static version for stationary use

Technical specifications

Manufacturer number	3371524
Output @ 8 bar air pressure	~1,800 g/min (NLGI 2 grease at 20 °C)
Pressure capability	~24 bar (330 psi)
Pump ratio	1:3
Thread	R1/2"
Pail size	15 kg, inner-Ø 255–282 mm

Information on product safety (Manufacturer, Contact)

MATO GmbH & Co. KG, Benzstrasse 16-24, 63165 Mühlheim am Main, GERMANY, +49 6108 906-0, [email protected], www.mato.de
