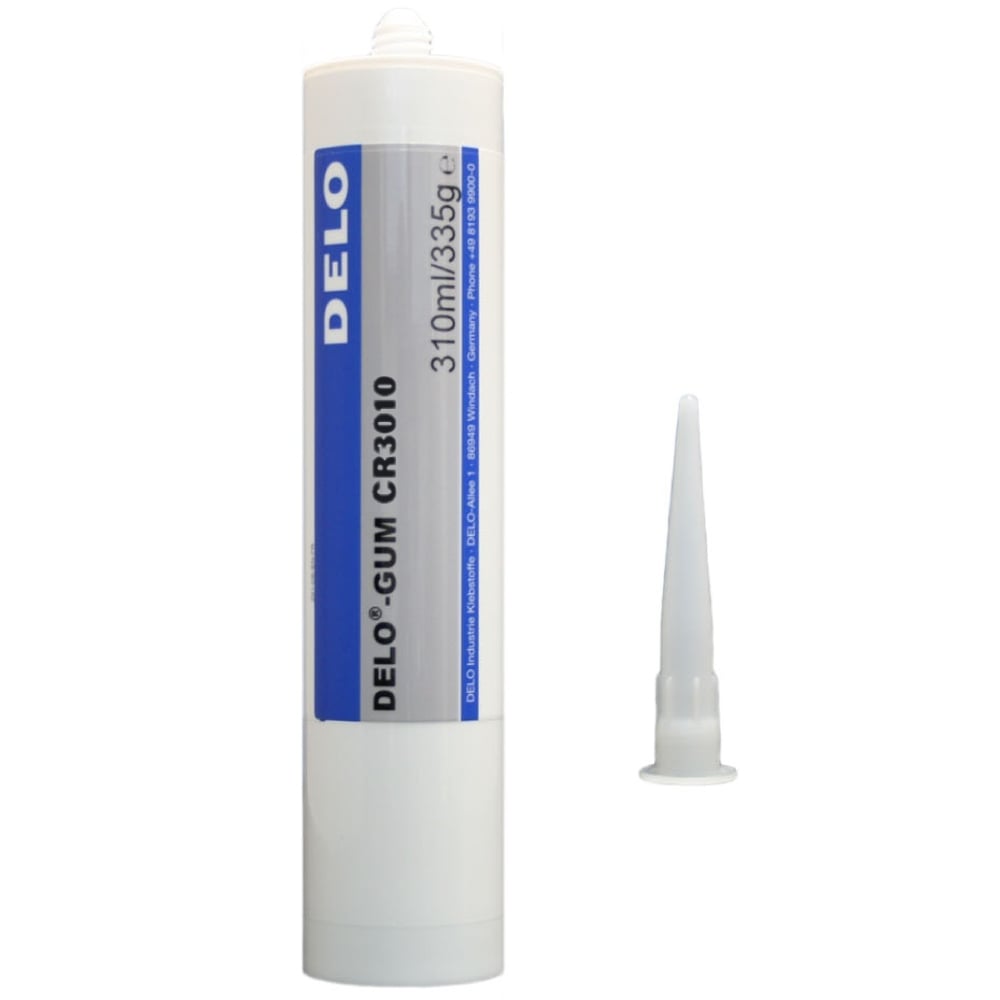

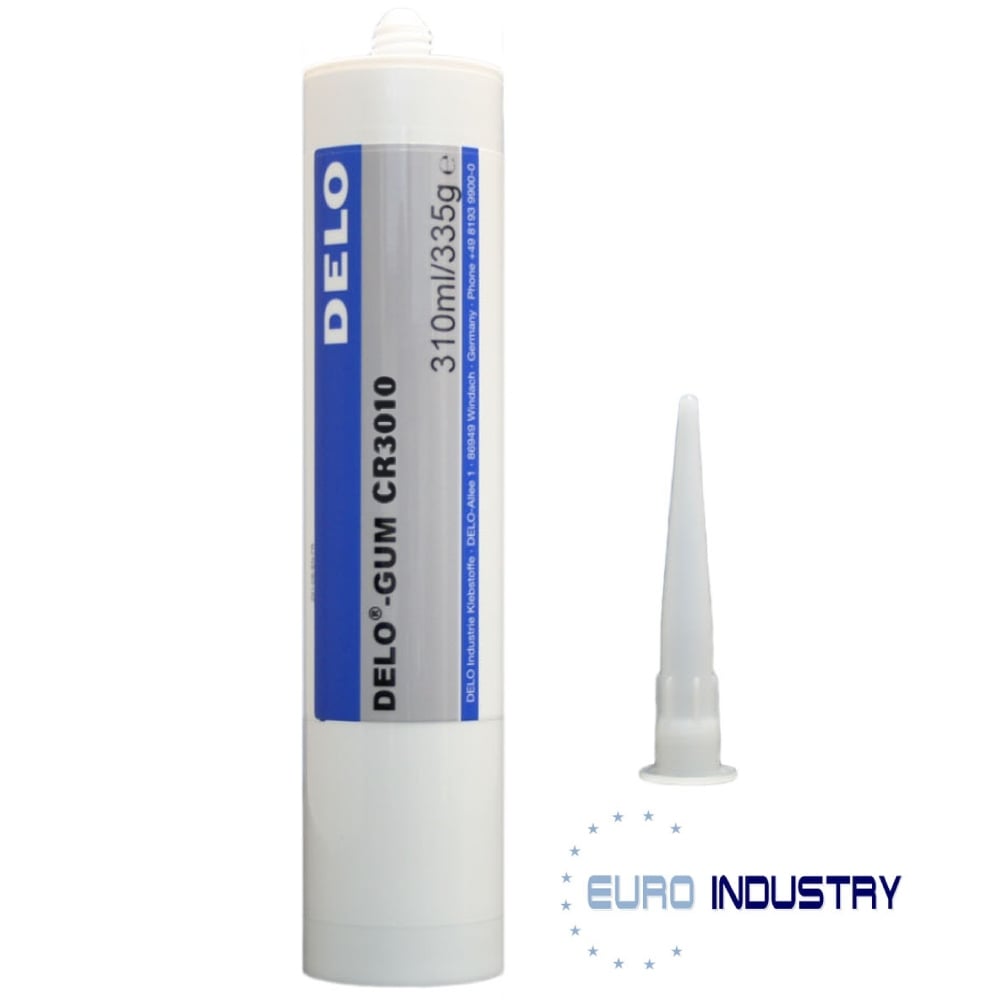

DELO-GUM CR3010 Oxime-curing RTV-1 Silicone Rubber flowable 310ml
€ 1284.48 107.04 incl. VAT (89.95 excl. VAT), per piece *
Availability: on request
Packaging unit: 12 pieces
Manufacturer: DELO
Country of origin: DE/0004
Customs tariff number: 35061000
Weight per piece: 315 g
No problem. Simply fill out the form and we will answer you as soon as possible.
DELO-GUM CR3010 is a one-component RTV-1 silicone rubber that cures neutrally (oxime) and is therefore non-corrosive. It is solvent-free, flowable (self-levelling) and stress-compensating, suitable for elastic sealing, bonding and potting.
- Pack size: 310 ml cartridge
Applications
- Electronics potting / encapsulation and protection of assemblies
- Elastic seals and joints in device and mechanical engineering
- General sealing and bonding within −50 °C to +180 °C
Features
- RTV-1, neutral-curing (oxime), non-corrosive
- Flowable (self-levelling) – ideal for potting
- Stress-compensating; very good temperature resistance
- Solvent-free; RoHS compliant, VOC per GB33372-2020
Technical Data
| Physical properties | |
|---|---|
| Transparency / Colour (1 mm, cured) | Translucent / whitish |
| Density (23 °C) | 1.00 g/cm³ |
| Viscosity (23 °C) | 17 000 mPa·s |
| Condensation by-product | Oxime (neutral, non-corrosive) |
| Mechanical properties | |
| Tensile strength | 0.2 MPa |
| Elongation at break | 110 % |
| Shore hardness 00 / A | 54 / 18 |
| Shrinkage | 3 vol.% |
| Water absorption (24 h) | 0.06 wt.% |
| Surface resistance | >1E14 Ω |
| Curing | |
| Skin formation time | approx. 11 min (23 °C / 50 % RH) |
| Cure per 24 h | approx. 4 mm (23 °C / 50 % RH) |
| Thermal properties | |
| Service temperature range (typ.) | −50 °C to +180 °C |
Application Notes
- Potting/application directly from the cartridge (flowable, self-levelling)
- Substrates dry and free from dust/grease; clean e.g. with DELOTHEN
- Cures by ambient humidity; times depend on layer thickness and geometry
Recommended Accessories
- Dispensing guns 310 ml: WEICON 10000441 (manual), LOCTITE 97002 (pneumatic)
- Nozzles: standard nozzles (8 cm), long nozzles 175 mm
- Cleaner: DELOTHEN NK1 400 ml
DELO Industrie Klebstoffe GmbH & Co. KGaA, DELO-Allee 1, 86949 Windach, GERMANY, +49 8193 9900-0, [email protected], www.delo.de
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | - | 100056477 |
