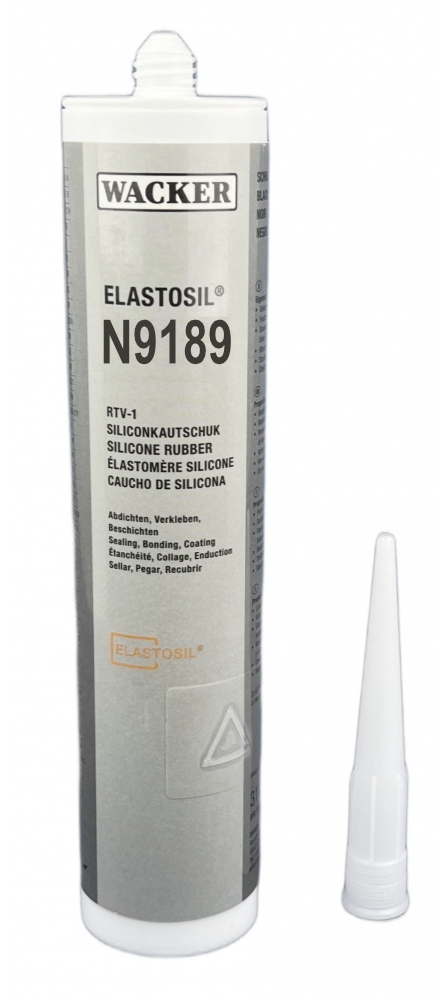

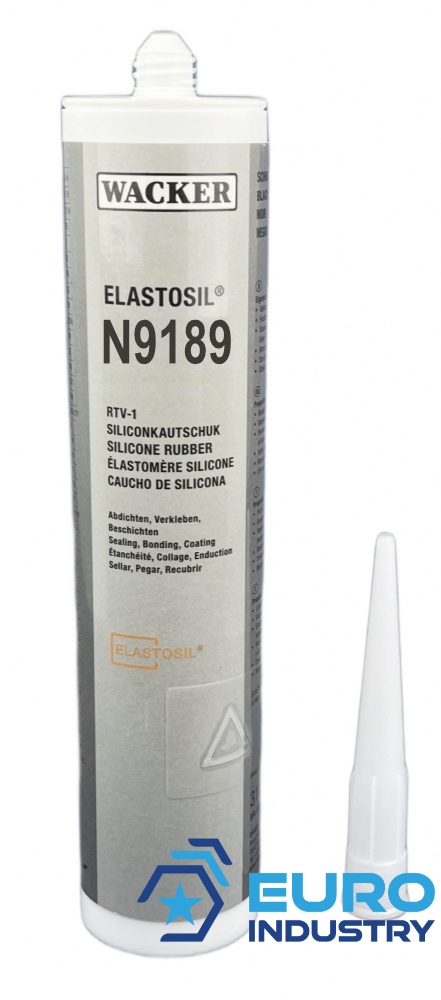

Elastosil N9189 Silicone Rubber RTV-1 black 310ml cartridge

Elastosil N9189 Silicone Rubber RTV-1 black 310ml cartridge

€ 43.97 43.97 incl. VAT (36.95 excl. VAT), per piece *

Availability: on request

Packaging unit: 1 piece

More…

Manufacturer: Wacker

Country of origin: DE/0004

Customs tariff number: 32141010

Weight per piece: 450 g

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

one - two = ?

( Examples: two + three = 5, three - five = -2 )

WACKER ELASTOSIL® N9189 is a non-slump, one-component RTV-1 silicone rubber designed for sealing and electrically conductive bonding in electronics, automotive, railway and machinery applications. It cures at room temperature under air humidity and forms a durable, flexible silicone sealant with mild conductivity and excellent heat and weather resistance.

Packaging: 310 ml cartridge

Applications

Electrically conductive bonding and shielding (EMI/ESD)
Formed-in-place gaskets (FIPG) in housings and enclosures
Sealing of components in railway, e-mobility and industrial devices
Temperature-resistant adhesion on metal, plastic, glass, coatings

Features

Electrically conductive (~10 Ω·cm; thermal conductivity: 0.35 W/m·K)
Alkoxy-curing, tin-free – low-odor and non-corrosive
Thixotropic black paste – shear-thinning behavior
Primerless adhesion to many substrates
Service temperature range: –45 °C to +200 °C
Weather, UV and aging resistant

Technical Data

Uncured
Color	Black
Density (23 °C)	1.034 g/cm³
Viscosity (0.1 1/s)	8,500,000 mPa·s
Viscosity (500 1/s)	40,000 mPa·s
Skin formation time	5–15 minutes
Curing speed	1–1.5 mm/day
Cured (14 days, 23 °C / 50 % RH)
Density (in water)	1.05 g/cm³
Hardness (Shore A)	45
Tensile strength	2.8 N/mm²
Elongation at break	330 %
Tear strength	7.8 N/mm
Volume resistivity	10 Ω·cm
Thermal conductivity	0.35 W/m·K

Processing Instructions

Ready-to-use, no mixing required
Applies via cartridge gun or dispensing system
Primerless adhesion on glass, ceramics, metals, plastics, coatings
Clean before full cure using white spirit or similar non-polar solvents

Storage & Safety

Store dry and cool in original packaging
Cures with release of ~3 % alcohol – ensure ventilation
Avoid contact with eyes and mucous membranes

Elastosil N9189, conductive adhesive, Wacker, black RTV-1, EMV silicone

Hazard Information (CLP)

Signal word: Danger

Hazard statements (H-phrases)

H318: Causes serious eye damage.

Safety advice (P-statements)

Prevention:

P280: Wear protective gloves / protective clothing / eye protection / face protection.

Response:

P305+P351+P338: IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing.
P310: Immediately call a POISON CENTER or doctor.

Additional labelling (EUH-phrases)

EUH208: Contains trimethoxyvinylsilane. May produce an allergic reaction.

Other relevant information

Hazardous ingredient: Bis(ethylacetoacetato)diisobutyltitanium.

Information on product safety (Manufacturer, Contact)

Wacker Chemie AG, Gisela-Stein-Strasse 1, 81671 München, GERMANY, +49 89 6279-0, [email protected], www.wacker.com

No files available for download

Property	GTIN/EAN	MPN (Manufacturer Part Number)
-	-	elastosil-n9189-310m
