Delo-Duopox 6950 Two-Part Epoxy Adhesive for electronics 1 kg

Delo-Duopox 6950 Two-Part Epoxy Adhesive for electronics 1 kg

pics/DELO/eis-copyright/DUOPOX 6950/delo-duopox-6950-universal-2-component-epoxy-resin-adhesive-set-comp-a-and-b-ol.jpg

€ 136.79 136.79 incl. VAT (114.95 excl. VAT), per piece *

Availability: on request

Packaging unit: 1 piece

More…

Manufacturer: DELO

Country of origin: DE/0004

Customs tariff number: 35061000

Weight per piece: 2.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

five + eight = ?

( Examples: two + three = 5, three - five = -2 )

DELO-DUOPOX® 6950 is a modified, room-temperature curing 2-component epoxy adhesive for electronics potting/encapsulation. The material is unfilled and stress-relieving; it cures at 23 °C within 24 h and offers very good electrical properties.

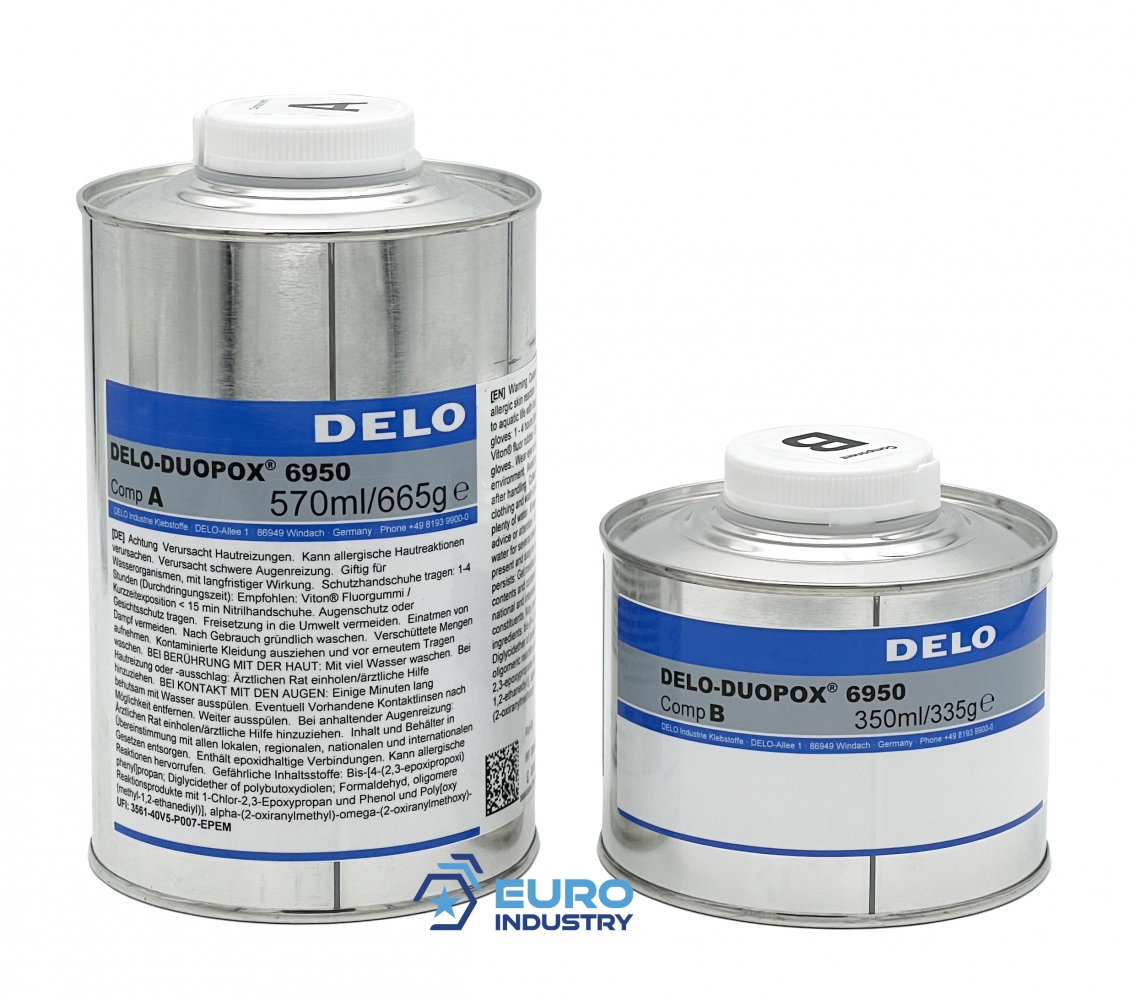

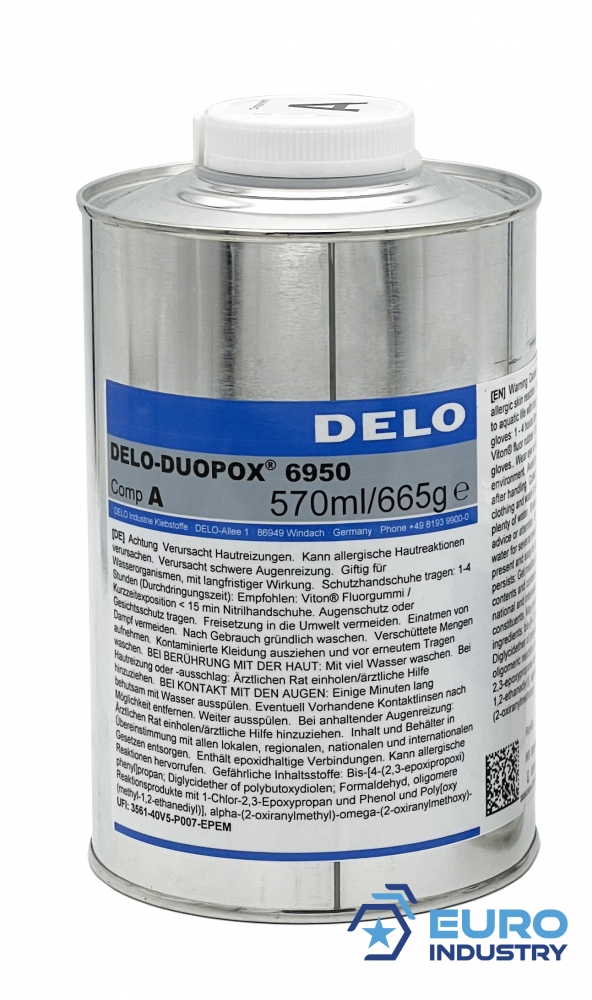

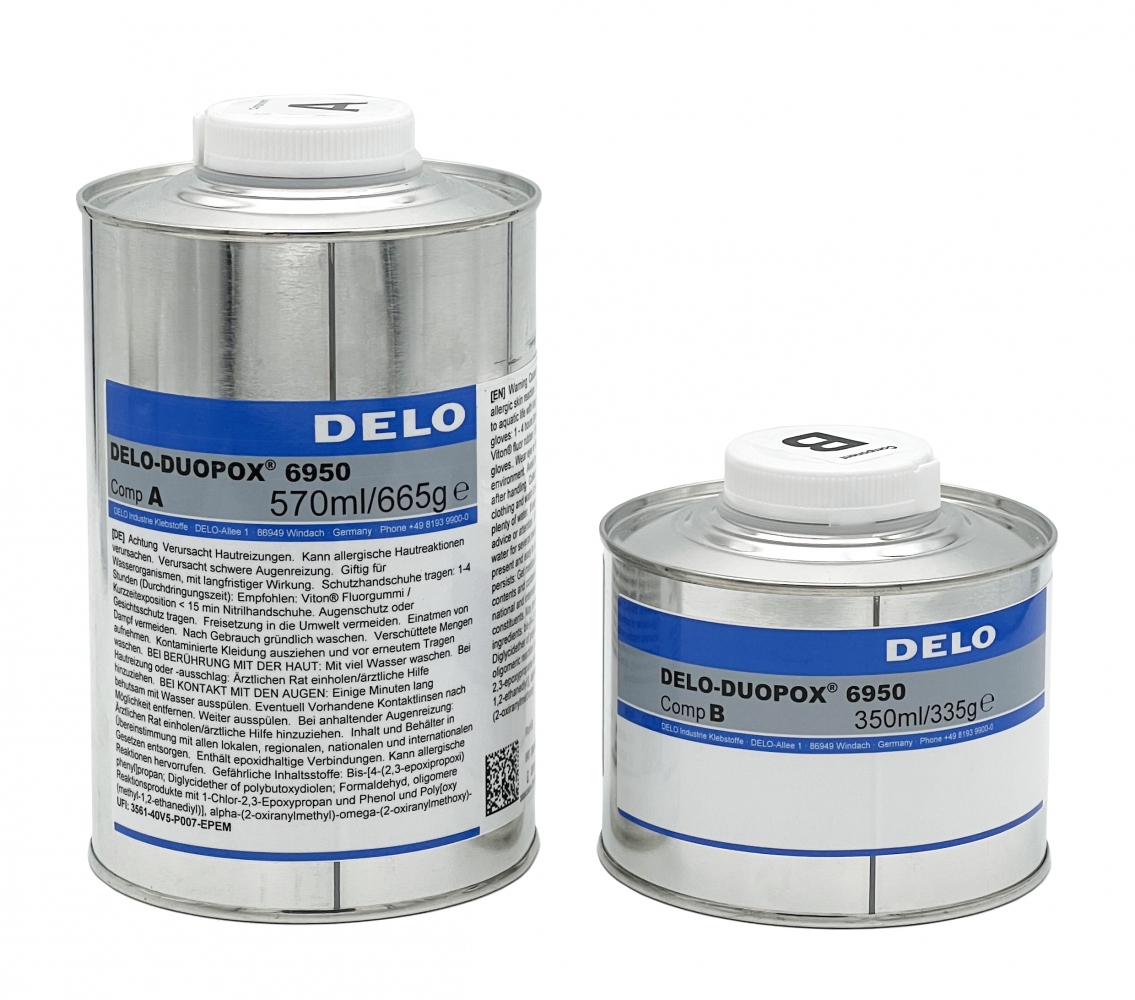

Pack size: 1 kg can set (Component A 665 g, Component B 335 g)

Note: For professional use only. Not for sale to private consumers.

Applications

Electronics potting / encapsulation of assemblies
Protection of sensitive components against media and vibration
Service temperature range: −40 °C to +120 °C

Features

2-part epoxy, mixing ratio 2:1 (wt) / 17:10 (vol)
Pot life approx. 95 min (100 g, 23 °C); full strength after 24 h
Stress-relieving; unfilled; RoHS compliant (2015/863/EU)
Stir both components thoroughly before mixing (possible sedimentation)
Vacuum processing reduces entrapped air

Technical Data

Physical properties
Colour (1 mm, cured)	Black
Mixing ratio (volume / weight)	17:10 / 2:1
Density A / B	1.16 / 0.95 g/cm³
Viscosity A / B	2100 / 400 mPa·s
Shrinkage	2 vol-%
Water absorption (24 h)	0.3 wt-%
Mechanical properties
Lap shear strength (Al/Al)	13 MPa
Tensile strength	23 MPa
Elongation at break	20 %
Elastic modulus	800 MPa
Shore hardness D	56
Thermal properties
Glass transition temperature (Tg)	57 °C
CTE (30–140 °C)	197 ppm/K
Electrical properties
Dielectric strength	26 kV/mm
Surface / volume resistivity	>1E12 Ω / >1E13 Ω·cm
CTI	600
Relative permittivity	≈ 3

* Values are typical lab data. Verify suitability for your specific application.

Application Notes

Stir components A and B separately, then mix thoroughly at 2:1 (wt)
Pot life ~95 min (100 g, 23 °C); heat accelerates curing
Vacuum mixing significantly reduces air inclusions

Recommended Accessories

Surface cleaner: DELOTHEN NK1 400 ml

Delo Duopox 6950, Delo-Duopox-6950. Delo Duopox-6950

Hazard Statements (CLP)

Signal word: Danger

Hazard Statements (H-Sentences)

H314: Causes severe skin burns and eye damage.
H315: Causes skin irritation.
H317: May cause an allergic skin reaction.
H319: Causes serious eye irritation.
H400: Very toxic to aquatic life.
H410: Very toxic to aquatic life with long-lasting effects.
H411: Toxic to aquatic life with long-lasting effects.
H412: Harmful to aquatic life with long-lasting effects.

Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR, SA,

Information on product safety (Manufacturer, Contact)

DELO Industrie Klebstoffe GmbH & Co. KGaA, DELO-Allee 1, 86949 Windach, GERMANY, +49 8193 9900-0, [email protected], www.delo.de

delo-duopox-6950-universal-2-component-epoxy-resin-adhesive-tds-datasheet-en.pdf (182.86 KB)
