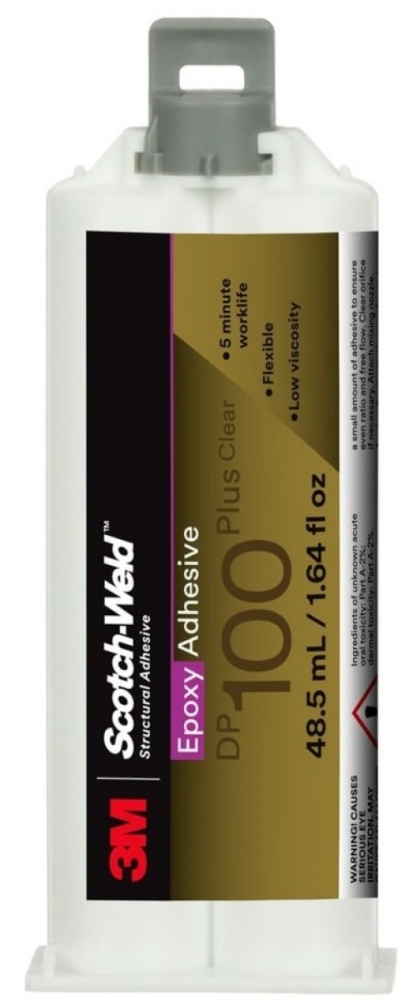

3M Scotch-Weld DP100 Plus Clear Two-part Epoxy Adhesive 48.5ml
3M Scotch-Weld DP100 Plus Clear Two-part Epoxy Adhesive 48.5ml
€ 21.36 21.36 incl. VAT (17.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: 3M
Country of origin: FR/0001
Customs tariff number: 39073000
Weight per piece: 100 g
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.
3M Scotch-Weld™ DP100 Plus Clear is a fast-setting 2-part structural epoxy adhesive designed for the EPX system. The clear, flowable adhesive is suitable for bonding metals (e.g., steel, aluminium, copper, brass) and many plastics, as well as substrates such as glass and ceramics.
- Pack size: 48.5 mL EPX dual cartridge (3M ID 7100148750)
Applications

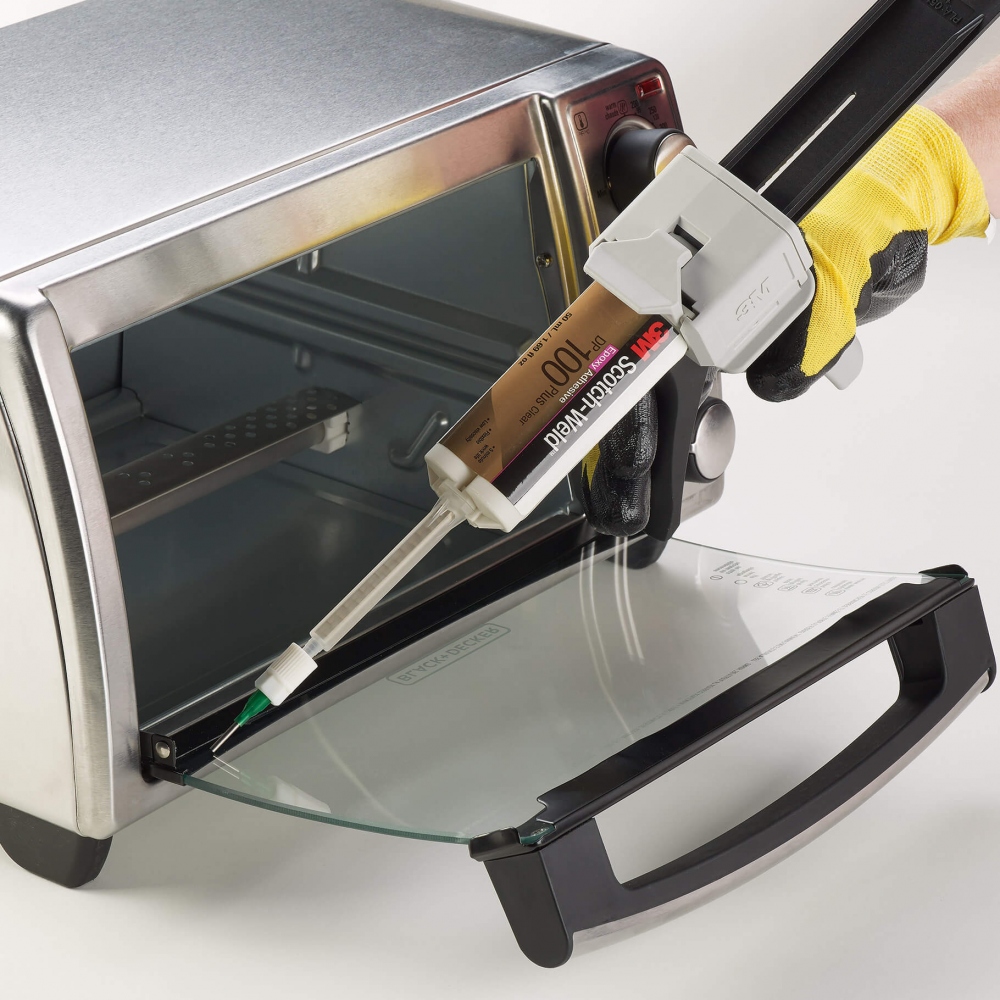

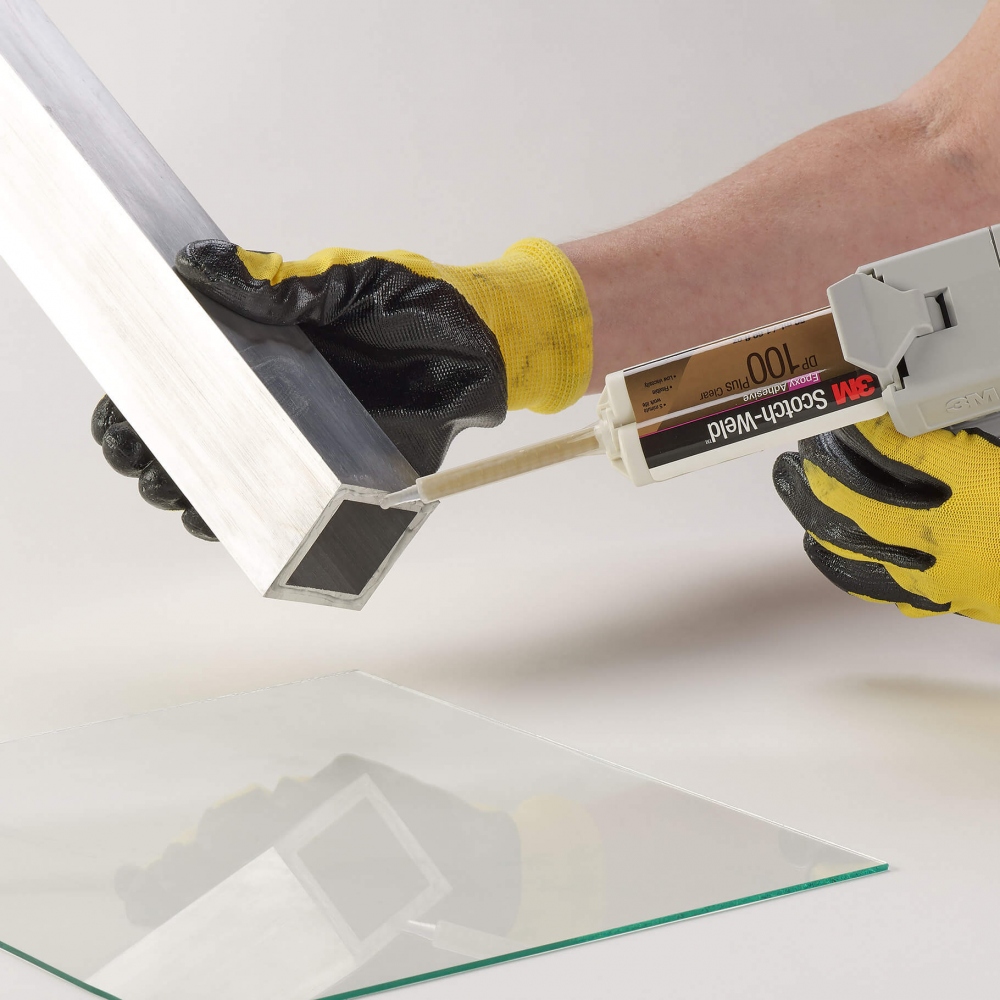

- Structural bonding of metals, glass/ceramics and many plastics
- Clear/low-visibility bonds (depending on substrate)
- Fast assembly processes with short work life
Features
- 2-part epoxy, 1:1 mix ratio
- Flowable (pourable) and easy to dispense via EPX cartridge system
- Short work life (typ. 3–5 min) and quick handling strength (typ. ~15 min)
- Full cure typically after ~48 h at room temperature
- UL specified (per product information)
Technical Data
| Physical properties (components) | |
|---|---|
| Base color (resin) | Clear |
| Accelerator color (hardener) | Clear, colorless to light yellow/amber |
| Mix ratio (by volume, B:A) | 1:1 |
| Mix ratio (by weight, B:A) | 1:0.98 |
| Density base / accelerator | 1.16 / 1.14 g/cm³ |
| Viscosity base / accelerator (27 °C) | 9,000 / 11,000 cP |
| Processing (typical, mixed) | |
| Worklife (20 g mixed, 23 °C) | 2–5 min |
| Open time | 5 min |
| Time to handling strength (23 °C) | 15 min |
| Time to structural strength (23 °C) | 5 h (≥ 6.9 MPa / 1,000 psi overlap shear strength) |
| Full cure (23–24 °C) | Approx. 48 h |
| Mechanical (typical) | |
| Overlap shear strength (ASTM D1002 / ISO 4587) | 22.4 MPa (etched aluminium; 24 h + 2 h @ 71 °C) |
| Bell peel (ASTM D3167) | 10.4 N/mm (24 h + 2 h @ 71 °C) |
| Shore D hardness | 65 |
| Elongation (ASTM D638 / ISO 527) | 70 % |
| Thermal (typical) | |
| Glass transition temperature (Tg) | 27 °C |
| CTE below Tg | 60.9 × 10−6 m/m/°C |
| CTE above Tg | 197.8 × 10−6 m/m/°C |
| Thermal conductivity (50 °C) | 0.19 W/m·K |
Application notes
- Recommended processing temperature: 20–25 °C
- Surfaces must be dry and free of dust/grease; abrasion can improve adhesion
- Dispense with EPX system; use a static mixer nozzle (min. 20 elements)
- Typical bond line thickness: 0.05–0.15 mm (spacers possible)
Recommended Accessories
- Mixing nozzles: Static mixing nozzle 3M Scotch-Weld EPX
- Applicator gun: 3M Scotch-Weld EPX III
Storage & Shelf Life
- Store in the original, unopened packaging, out of direct sunlight
- Storage temperature: 16 °C to 27 °C
- For best performance, use within 24 months from date of manufacture
Hazard Information (CLP)
Hazard Statements (H-statements)
- H315: Causes skin irritation. (Part B)
- H317: May cause an allergic skin reaction. (Part A & B)
- H319: Causes serious eye irritation. (Part B)
- H411: Toxic to aquatic life with long lasting effects. (Part B)
- H412: Harmful to aquatic life with long lasting effects. (Part A)
Precautionary Statements (P-statements)
Prevention:
- P273: Avoid release to the environment. (Part B)
- P280: Wear protective gloves. (P280E – Part A & B)
Response:
- P333 + P313: If skin irritation or rash occurs: Get medical advice/attention. (Part A & B)
- P305 + P351 + P338: IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing. (Part B)
- P391: Collect spillage. (Part B)
Other Relevant Information
- 1% of the mixture consists of components of unknown acute inhalation toxicity. (Part A)
- Cross-sensitization to other amines is possible in already sensitized individuals. (Part A)
- No components classified as PBT or vPvB. (Part A & B)
Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR, SA,
3M Deutschland GmbH, Carl-Schurz-Straße l, 41453 Neuss, Deutschland, 02131-14-2914 / 0, [email protected], www.3m.com/msds
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 0638060089767 | 7100148750 |
