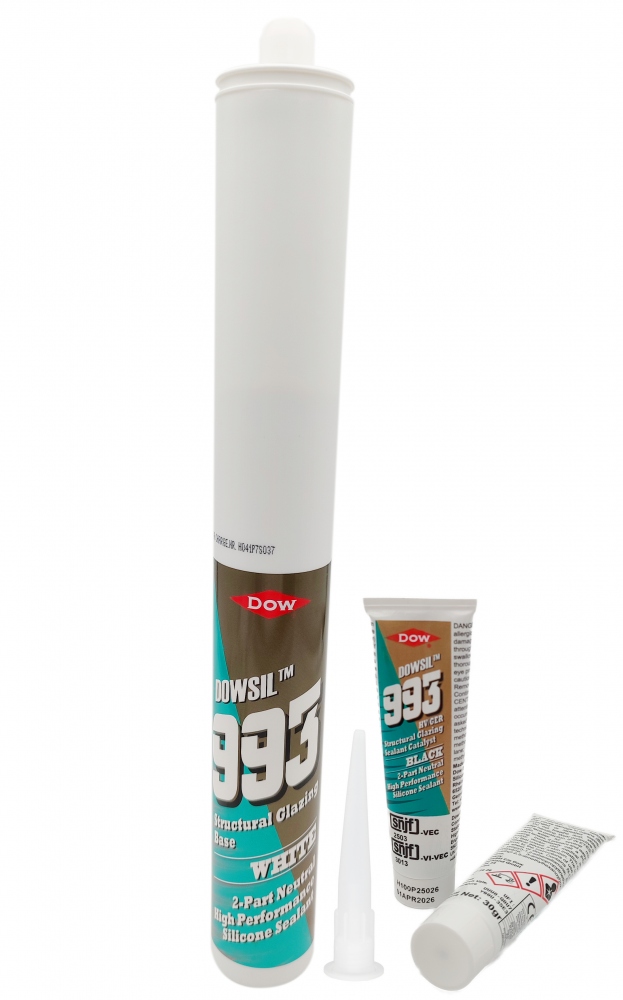

Dowsil 993 Two Part Structural Glazing Silicone 545g + 2x30 g kit
Dowsil 993 Two Part Structural Glazing Silicone 545g + 2x30 g kit
€ 1082.06 77.29 incl. VAT (64.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 14 pieces
Manufacturer: Dow Chemical
Country of origin: US/0400
Customs tariff number: 32141010
Weight per piece: 700 g
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.
DOWSIL™ 993 (formerly Dow Corning DC 993) is a two-part, neutral-curing silicone sealant for façade construction (structural glazing). It is mixed at a 10:1 ratio.
- Pack size: Set with 545 g cartridge (base) and 2 x 30 g tubes (hardener)
- Also available as: 675 ml repair-kit dual cartridge
Applications
- Structural glazing (SNJF VEC + VI-VEC), bonding of glass, metal and façade components
- Impact-resistant window systems (new build & retrofit)
Features
- Neutral (alkoxy), low-odour and non-corrosive
- High adhesion to coated/enamelled/reflective mirrors, anodised & painted aluminium, stainless steel
- Consistent viscosity of both parts, no pre-heating required
- Service temperature: −50 °C to +150 °C
- Colours via curing agent: black, clear and various greys
Technical Data
| Uncured (supply condition / 25 °C, 50 % RH) – 675 ml Repair Kit | |
|---|---|
| Colour / consistency (Base / catalyst) | viscous white paste / viscous black paste |
| Specific gravity (Base / black catalyst) | 1.32 / 1.05 |
| Viscosity (Base 100 s⁻¹ / catalyst 20 s⁻¹) | 150,000 mPa·s / 25,000 mPa·s |
| Flash point (curing agent, closed cup) | 28 °C |
| Mix ratio (Wt./Vol.) | 10:1 / 7.8:1 | permissible 11:1…9:1 (by weight) |
| Mixed (25 °C / 50 % RH) | |
| Colour / consistency | black, non-slump paste |
| Density | ≈ 1.30 |
| Viscosity (100 s⁻¹) | ≈ 40,000 mPa·s |
| Working time / skin-over time | ≈ 10–30 min / ≈ 80–100 min |
| Cured (7 days / 25 °C / 50 % RH) | |
| Hardness (Shore A) | ≈ 40 |
| Tensile strength / elongation at break | ≈ 0.95 MPa / ≈ 130 % |
| Tear strength | ≈ 6.0 kN/m |
| Service temperature | −50 °C to +150 °C |
| Design stresses | dynamic 140,000 Pa · static 11,000–15,000 Pa |
Note: Data apply to the Repair Kit only (Base: white / catalyst: black). Values are typical.
Processing
- Mix ratio 10:1 (by weight) or 7.8:1 (by volume); permissible 11:1 to 9:1 (by weight)
- Airless mixing in 2-part dispensing systems; use approved 2-part hand cartridges only
- Usually primerless; project-specific adhesion tests recommended
Storage & Shelf Life
- Base & catalyst: 14 months at ≤ 30 °C
- Repair-kit cartridge: 9 months from filling date
Hazard Information (CLP)
Hazard Statements (H-statements)
- H226: Flammable liquid and vapor. (Catalyst Black)
- H315: Causes skin irritation. (Catalyst Black)
- H317: May cause an allergic skin reaction. (Catalyst Black)
- H318: Causes serious eye damage. (Catalyst Black)
- H373: May cause damage to organs (bladder) through prolonged or repeated exposure if swallowed. (Catalyst Black)
Additional Labeling (EUH-statements)
- EUH210: Safety data sheet available on request. (Base White)
Precautionary Statements (P-statements)
Prevention:
- P210: Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking. (Catalyst Black)
- P260: Do not breathe mist or vapor. (Catalyst Black)
- P264: Wash skin thoroughly after handling. (Catalyst Black)
- P280: Wear protective gloves/protective clothing/eye protection/face protection. (Catalyst Black)
- P271: Use only outdoors or in a well-ventilated area. (Base White)
Response:
- P305 + P351 + P338: IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing. (Catalyst Black)
- P310: Immediately call a POISON CENTER or doctor. (Catalyst Black)
- P337 + P313: If eye irritation persists: Get medical advice/attention. (Catalyst Black)
- P370 + P378: In case of fire: Use water spray, alcohol-resistant foam, dry chemical or CO₂ to extinguish. (Catalyst Black)
Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR, SA,
DOW DEUTSCHLAND ANLAGENGESELLSCHAFT MBH, Rheingaustr. 34, 65201 Wiesbaden, GERMANY, +49 611 237007, [email protected], www.dow.com
No files available for download
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | - | DC-993-545g+30g |
