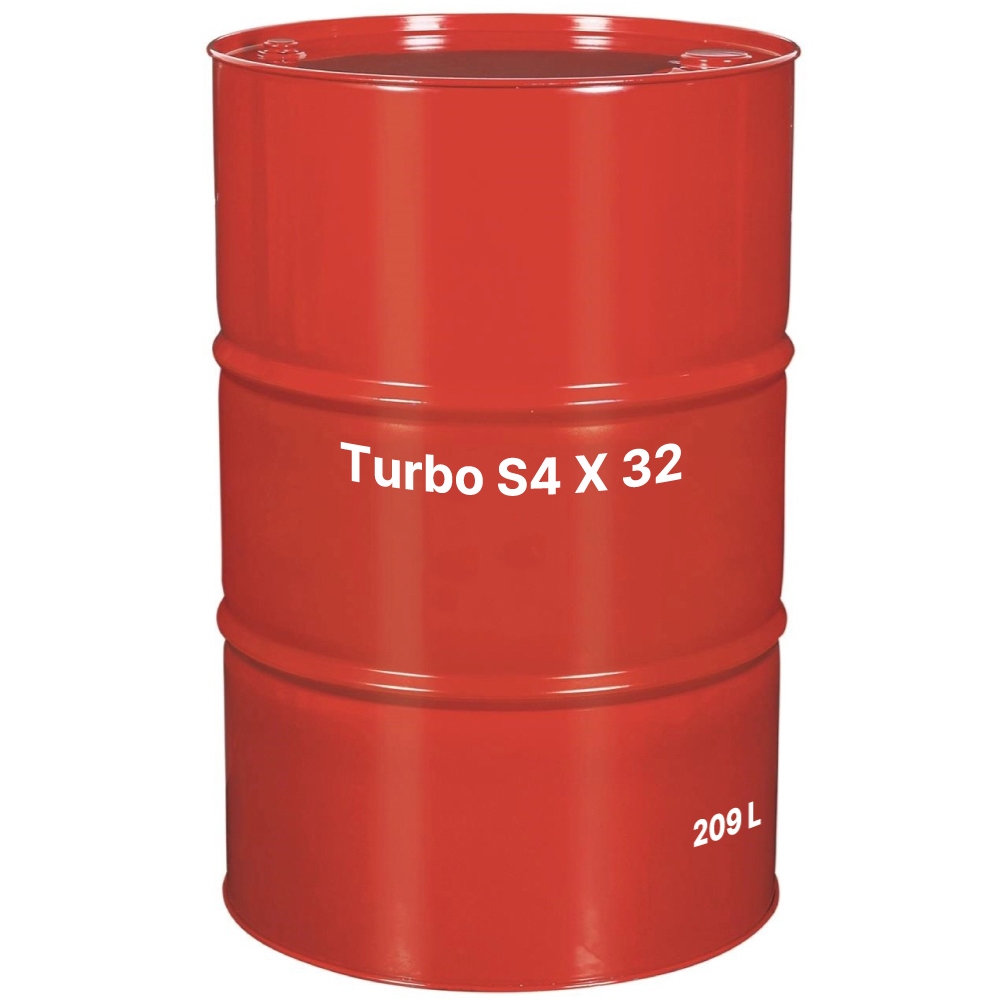

Shell TURBO S4 X 32 Industrial steam and gas turbine oil 209L drum

Shell TURBO S4 X 32 Industrial steam and gas turbine oil 209L drum

€ 1348.17 1,348.17 incl. VAT (1,132.92 excl. VAT), per piece *

Availability: on request

Packaging unit: 1 piece

More…

Manufacturer: Shell

Country of origin: CH/0039

Customs tariff number: 381900002

Weight per piece: 209.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

eight + five = ?

( Examples: two + three = 5, three - five = -2 )

Shell Turbo S4 X 32 is a premium industrial steam, gas and combined cycle turbine lubricant (ISO VG 32) based on Gas-to-Liquid (GTL) technology, designed to help minimise deposit and sludge formation even under cyclic peak loading conditions.

Pack size: 209 L drum
Also available in: 20 L canister

Applications

Power and industrial steam, gas & combined cycle turbines
Lubricating oil of choice for modern steam, gas and combined cycle turbines
Other industrial applications requiring a high performance gas turbine oil, such as the lubrication of turbo compressors
Note: Some applications with highly loaded gearboxes require a lubricant with enhanced anti-wear performance; for these applications use Shell Turbo S4 GX

Specifications & Approvals

ASTM 4304-13 Type I & III
GB (China) 11120-2011: L-TGA, L-TSA, L-TGSB
DIN 51515 Part 1 L-TD & Part 2 L-TG; DIN 51524-1 HL
ISO 8068:2006 L-TGB; ISO 8068:2006 L-TGSB
Siemens Power Generation: TLV 9013 04 and TLV 9013 05
General Electric: GEK 32568K, 46506e, 28143b, 107395a and 120498
Alstom HTGD 90117 V 0001 AA
Dresser Rand 003-406-001 Type I & III
Westinghouse 21 TO591 and 55125Z3 and Eng Spec_DP21T-00000443
Solar ES 9-224Y Class II
MAN D&T SE TED 10000494596
Meets the specification of Elliott Turbomachinery X-18-0004
GE Oil and Gas: Appropriate specification listed under document ITN52220.04
Meets the requirements of MS04-MACL001 (Rev.4), MS04-MA-CL002 (Rev.4) and MS04-MACL005 (Rev.2)

Characteristics

Exceptional resistance to oxidation under high oxidative and thermal stress, supporting extended oil life and reduced maintenance costs
Greater resistance against varnish and sludge formation helps reduce wear of critical system components and the risk of unplanned turbine shutdown
Excellent demulsibility, air release and resistance to foaming help maintain optimum operating conditions in the latest turbine designs

Technical specifications

ISO viscosity grade (ISO 3448)	32
Kinematic viscosity @ 40 °C, mm²/s (ASTM D445)	32.0
Kinematic viscosity @ 100 °C, mm²/s (ASTM D445)	6.10
Viscosity index (ASTM D2270)	141
Density @ 15 °C, g/cm³ (IP 365)	0.827
Flash point (COC), °C (ASTM D92)	230
Pour point, °C (ASTM D97)	-42
Neutralisation number, mg KOH/g (ASTM D974)	0.10
Air release @ 50 °C, minutes (ASTM D3427)	1
Copper corrosion 3 hr/100 °C (ASTM D130)	1b
Rust preventing properties (ASTM D665 A & B)	No Rust
Water separability, minutes to 3 mL emulsion (ASTM D1401)	15
Steam demulsibility, seconds (IP 19)	80
Foaming characteristics Sequence I - tendency/stability, mL/mL (ASTM D892)	0/0
Foaming characteristics Sequence II - tendency/stability, mL/mL (ASTM D892)	0/0
Foaming characteristics Sequence III - tendency/stability, mL/mL (ASTM D892)	0/0
Load carrying - FZG, failure load stage (DIN 51354)	7
Oxidation stability RPVOT, minutes (ASTM D2272)	1400
Modified RPVOT, % of RPVOT	95%
TOST lifetime, hours (ASTM D943)	10 000+
TOST 1000 hr sludge, mg/kg (ASTM D4310)	20
Sludge content at 25% RPVOT, mg/kg	51
Time to 25% RPVOT, hours	1320

Product description

Shell Turbo S4 X 32 has been developed to meet the demands of the latest high efficiency turbine systems. Designed to offer outstanding long term performance under severe operating conditions, it helps minimise deposit and sludge formation, especially under cyclic peak load operation.

Information on product safety (Manufacturer, Contact)

Shell Deutschland GmbH, New-Orleans-Straße 4, 20457 Hamburg, Deutschland, +49 (0) 40 6324 - 0, [email protected], www.shell.com

shell-turbo-s4-x-32-tds-datasheet.pdf (108.41 KB)

Property	GTIN/EAN	MPN (Manufacturer Part Number)
-	-	550042870
