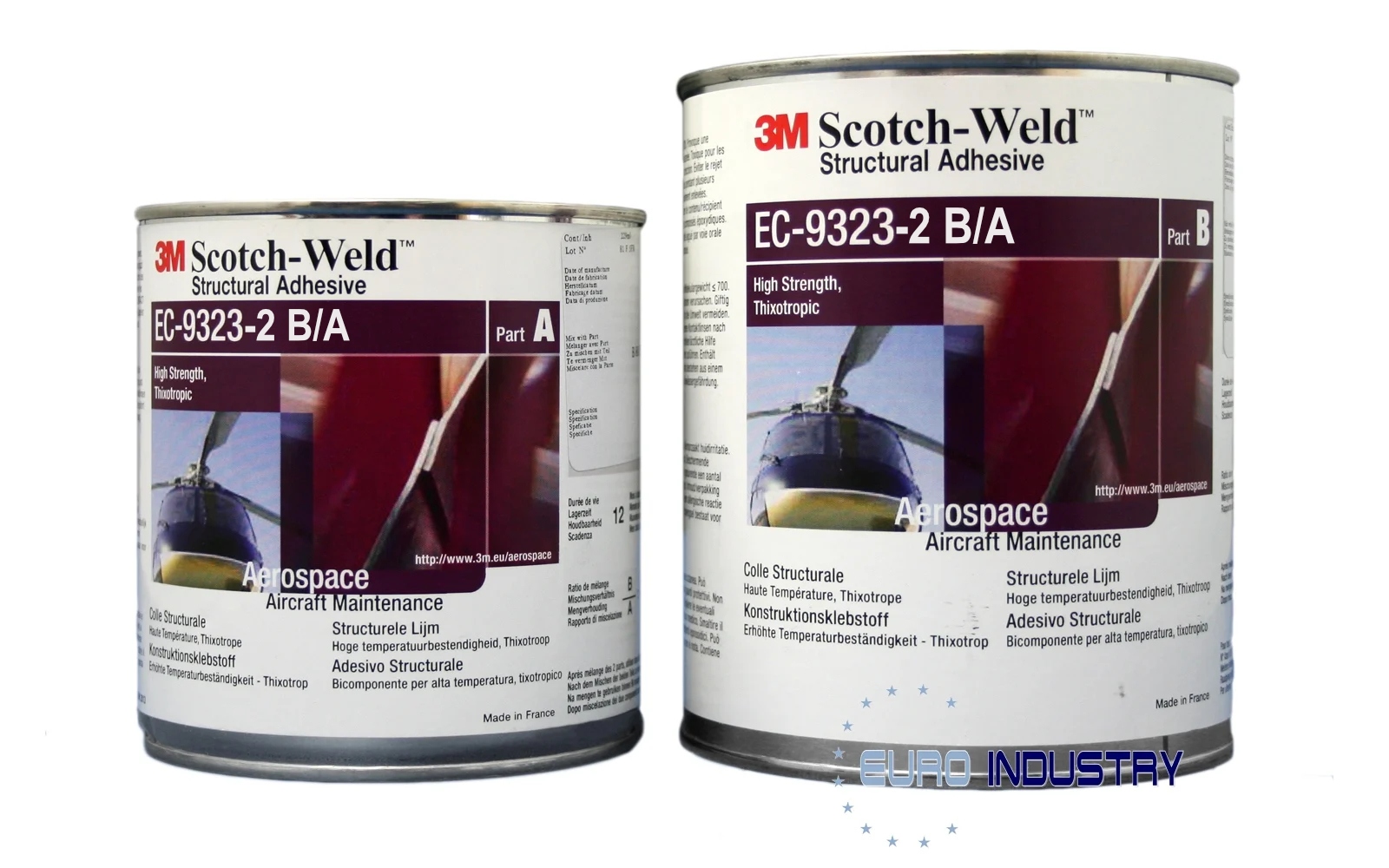

3M Scotch-Weld EC-9323-2 B/A Two Part Structural Adhesive black 1L

3M™ Scotch-Weld™ EC-9323-2 B/A (black) is a thixotropic, sag-resistant 2-part structural epoxy paste adhesive. It cures at room temperature or with mild heat to form a tough, impact-resistant structural bond and adheres to metals, glass, ceramics, plastics, and composite materials such as GFRP/CFRP.

• Pack size: 1 L can set, black (3M ID 7100141736)
• Also available as: 50 ml dual cartridge, 200 ml dual cartridge

Applications

• Bonding of aircraft interior panels
• “Ditch and pot” applications
• Insert or bracket bonding
• Structural bonding of metal and composite parts

Features

• Sag-resistant, thixotropic paste for controlled application
• Toughened system with very high shear and peel strength
• Room-temperature cure or accelerated cure with mild heat
• Very good resistance to harsh environments and chemical media (typical aerospace exposure)

Technical Data

Application Notes

• Surfaces must be clean, dry and free of grease; abrade and degrease again where required.
• Mix both components thoroughly until a uniform color is obtained; with a new static mixer, discard the first milliliters until homogeneous.
• Assemble parts within the open time and clamp/fix during cure (even contact pressure).
• Remove uncured residue with ketone-type solvents; once cured, material can only be removed mechanically.

Recommended Accessories

• Mixing nozzle: 3M Scotch-Weld EPX Static
• Dispensing gun: 3M Scotch-Weld EPX III

Storage & Shelf Life

• Store at room temperature in the original, unopened packaging.
• Shelf life: minimum 12 months from date of shipment (see label for expiry date).
• Refer to the Safety Data Sheet (SDS) before use.

Hazard Information (CLP)

Hazard Statements (H phrases)

• H314: Causes severe skin burns and eye damage. (Part A)
• H315: Causes skin irritation. (Part B)
• H317: May cause an allergic skin reaction. (Both Parts)
• H319: Causes serious eye irritation. (Part B)
• H336: May cause drowsiness or dizziness. (Part A)
• H410: Very toxic to aquatic life with long lasting effects. (Part A)
• H411: Toxic to aquatic life with long lasting effects. (Part B)

Safety Instructions (P phrases)

Prevention:

• P260B: Do not breathe dust. (Part A)
• P273: Avoid release to the environment. (Both Parts)
• P280B: Wear protective gloves/eye protection/face protection. (Part A)
• P280E: Wear protective gloves. (Part B)

Response:

• P303 + P361 + P353: IF ON SKIN (or hair): Take off immediately all contaminated clothing. Rinse skin with water/shower. (Part A)
• P305 + P351 + P338: IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. (Both Parts)
• P310: Immediately call a POISON CENTER or doctor/physician. (Part A)
• P333 + P313: If skin irritation or rash occurs: Get medical advice/attention. (Part B)
• P391: Collect spillage. (Part B)

Additional Hazard Information

• EUH212: Warning! Hazardous respirable dust may be formed when used. Do not breathe dust. (Both Parts)

Other Hazards

• Individuals sensitized to amines may experience cross-sensitization with other amines. (Part A)
• This material does not contain substances that are considered PBT or vPvB. (Both Parts)

3M Deutschland GmbH, Carl-Schurz-Straße l, 41453 Neuss, Deutschland, 02131-14-2914 / 0, [email protected], www.3m.com/msds
