Fridavo No.129a - Steel, stainless - Spiral springswing door hinges, double-acting - Model M

Fridavo No.129a - Steel, stainless - Spiral springswing door hinges, double-acting - Model M

pics/Fridavo/fridavo_129a_stahl_nicht_rostend.jpg
  • pics/Fridavo/fridavo_129a_stahl_nicht_rostend.jpg
  • pics/Fridavo/fridavo-pendeltuerband-groessen-29-30-technische-zeichnung.jpg
  • pics/Fridavo/fridavo-pendeltuerband-groessen-33-36-39-42-technische-zeichnung.jpg

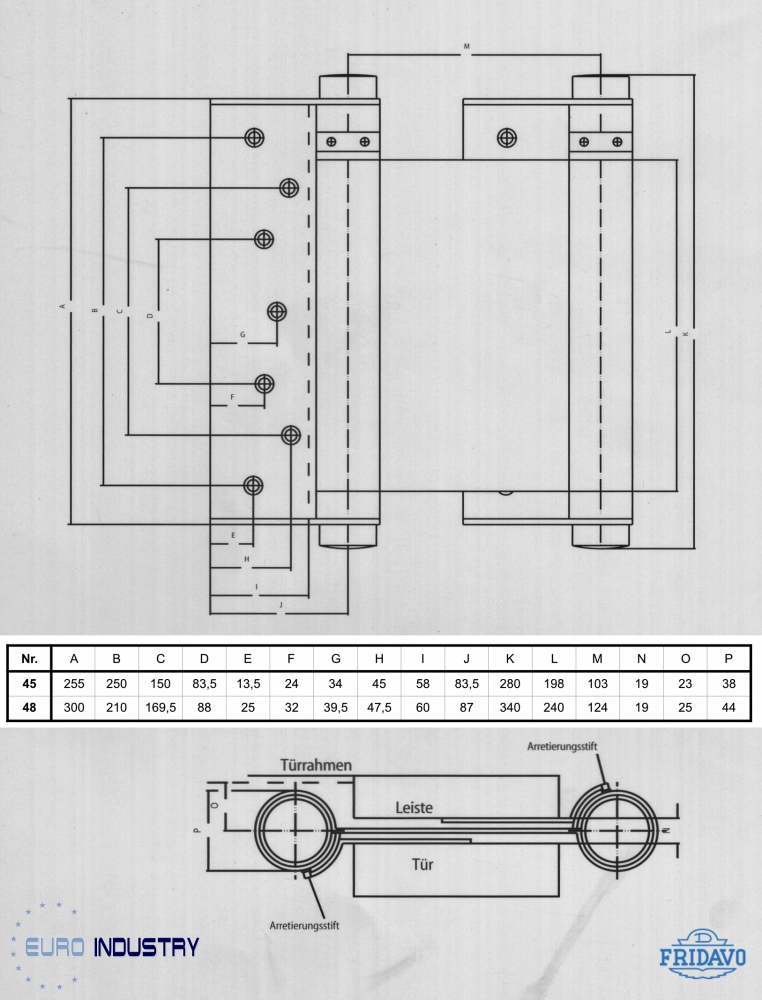

  • pics/Fridavo/fridavo-pendeltuerband-groessen-45-48-technische-zeichnung.jpg
  • pics/Fridavo/a_fridavo_logo.png

from € 146.05 146.05 incl. VAT (122.73 excl. VAT), per piece *

Availability: on request

Packaging unit: 1 pair

Size

Manufacturer: Fridavo

Country of origin: DE/0004

Customs tariff number: 83026000

Weight per piece: 8.0 kg

Please give the recipient email address, as well as your name and email address.

Recipient
Sender

The fields marked with (×) are required.
Security (ANTI-SPAM)
( Examples: two + three = 5, three - five = -2 )
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

The fields marked with (×) are required.
Security (ANTI-SPAM)
( Examples: two + three = 5, three - five = -2 )
  • Fridavo "steel, stainless" - spiral spring swing door hinges
  • Packaging unit: 1 pair
  • Double-acting, Sleeve made of a piece of high quality SM-steel rolled
  • Model M
  • Spiral spring made ​​of special spring wire
  • When assembling the tapes must be ensured that the trade are placed vertically above one another
  • The spring of the upper band to be more excited because this band has to exert a greater force
  • Product may vary from picture

Swing door hinge, Size

Nr.

28

29

30

33

36

39

42

45

48

Joint legth

mm

50

75

100

125

150

175

200

250

300

Calculated on:



















Door width

mm

610

610

735

735

735

860

985

985

1235

Door height

mm

1170

1800

1900

2000

2500

2500

2600

2800

3000

Door thikness

mm

18-25

18 – 25

25 – 30

30 – 35

35 – 40

40 – 45

45 – 50

50 – 60

60 – 75

max. Door weigth

kg

10

15

22

27

40

55

70

100

145



Size: 29

  • Length of hinge in mm: 75
  • calculated on:
    • Door width in mm: 610
    • Door height in mm: 1800
    • Door thickness in mm: 18-25
    • Door weight in Kg: 15


Size: 30

  • Length of hinge in mm: 100
  • calculated on:
    • Door width in mm: 735
    • Door height in mm: 1800
    • Door thickness in mm: 25-30
    • Door weight in Kg: 22


Size: 33

  • Length of hinge in mm: 125
  • calculated on:
    • Door width in mm: 735
    • Door height in mm: 2000
    • Door thickness in mm: 30-35
    • Door weight in Kg: 27


Size: 36

  • Length of hinge in mm: 150
  • calculated on:
    • Door width in mm: 735
    • Door height in mm: 2500
    • Door thickness in mm: 34-40
    • Door weight in Kg: 40


Size: 39

  • Length of hinge in mm: 175
  • calculated on:
    • Door width in mm: 860
    • Door height in mm: 2500
    • Door thickness in mm: 40-45
    • Door weight in Kg: 55


Size: 42

  • Length of hinge in mm: 200
  • calculated on:
    • Door width in mm: 985
    • Door height in mm: 2600
    • Door thickness in mm: 45-50
    • Door weight in Kg: 70


Size: 45

  • Length of hinge in mm: 250
  • calculated on:
    • Door width in mm: 985
    • Door height in mm: 2800
    • Door thickness in mm: 50-60
    • Door weight in Kg: 100


Size: 48

  • Length of hinge in mm: 300
  • calculated on:
    • Door width in mm: 1235
    • Door height in mm: 3000
    • Door thickness in mm: 60-75
    • Door weight in Kg: 145

29, 30, 33, 36, 39, 42, 45, 48

No files available for download

Property GTIN/EAN MPN (Manufacturer Part Number)
29 4015912292913 129A/29/075
30 4015912302919 129A/30/100
33 4015912332916 129A/33/125
36 4015912362913 129A/36/150
39 4015912392910 129A/39/175
42 4015912422914 129A/42/200
45 4015912452911 129A/45/250
48 - 129A/48/300
