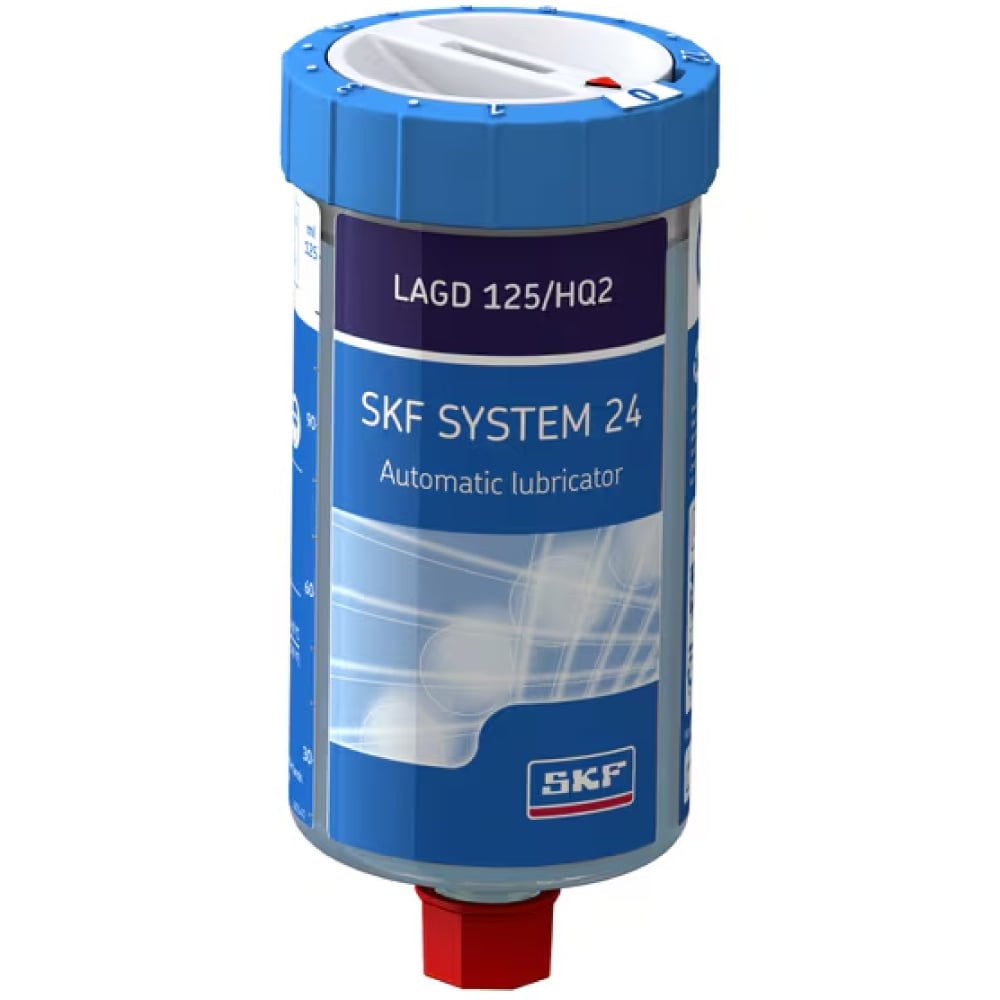

SKF LAGD 125/HQ2 Single point automatic lubricator with LGHQ 2, 125ml

SKF LAGD 125/HQ2 Single point automatic lubricator with LGHQ 2, 125ml

€ 40.4 40.40 incl. VAT (33.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: SKF

Country of origin: FI/0032

Customs tariff number: 84798997

Weight per piece: 186 g

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

seven - zero = ?

( Examples: two + three = 5, three - five = -2 )

SKF LAGD 125/HQ2 is a single point automatic lubricatorfor easy, safe and accurate relubrication in applications such as electric motors, industrial fans, water pumps and vertical shaft applications. It is pre-filled with SKF LGHQ 2 grease for high temperatures and high speeds.

Pack size: 125 ml unit

Applications

Electric motors
Industrial fans
Water pumps
Vertical shaft applications

Specifications and approvals

ATEX zone 0 approved
II 1G Ex ia IIC T6 Ga
II 1D Ex ia IIIC T200 85°C Da
I M1 Ex ia I Ma
IP 68

Characteristics

Flexible dispense rate from 1 to 12 months
Transparent lubricant container allows visual inspection of dispense rate
Compact size, suitable for restrictive areas
Improved reliability and optimized maintenance
Tool-free activation and time-setting
Easy, safe and accurate relubrication
Gas cell producing inert gas drive mechanism

Technical specification

Manufacturer no.	LAGD 125/HQ2
Maximum pressure	72.5 psi
Ambient temperature range	-4 to 140 F
Connecting thread (G)	R 1/4
Degree of protection	IP 68
Drive mechanism	Gas cell producing inert gas
Intrinsically safe approval	II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
Lubricant	LGHQ 2
Lubricant description	Wide temperature range electric motor bearing grease
Lubricant operating temperature range	-30 to +160 C
Lubricant quantity	7.63 in3
Maximum feed line length	0.98 ft
Nominal emptying time	Adjustable, 1-12 months
Power source	Gas cell
Recommended applications	Electric motors, industrial fans, water pumps, vertical shaft applications
Recommended storage temperature	20 C
Shelf life	2 year
Product net weight	0.42 lb
eClass code	23-06-10-14
UNSPSC code	15121902

Product description

The SKF SYSTEM 24 LAGD 125/HQ2 is filled with SKF LGHQ 2 grease for high temperatures and high speeds recommended for electric motors, fans and pumps. These gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.

SKF LAGD125/HQ2, SKF LAGD 125-HQ2, SKF LAGD125 HQ2

Information on product safety (Manufacturer, Contact)

SKF GmbH, Gunnar-Wester-Straße 12, 97421 Schweinfurt, GERMANY, +49 9721 56-0, [email protected], www.skf.com

skf-lagd-125-hq-2-tds-datasheet.pdf (442.62 KB)

Property	GTIN/EAN	MPN (Manufacturer Part Number)
-	7316579218276	LAGD 125/HQ2
