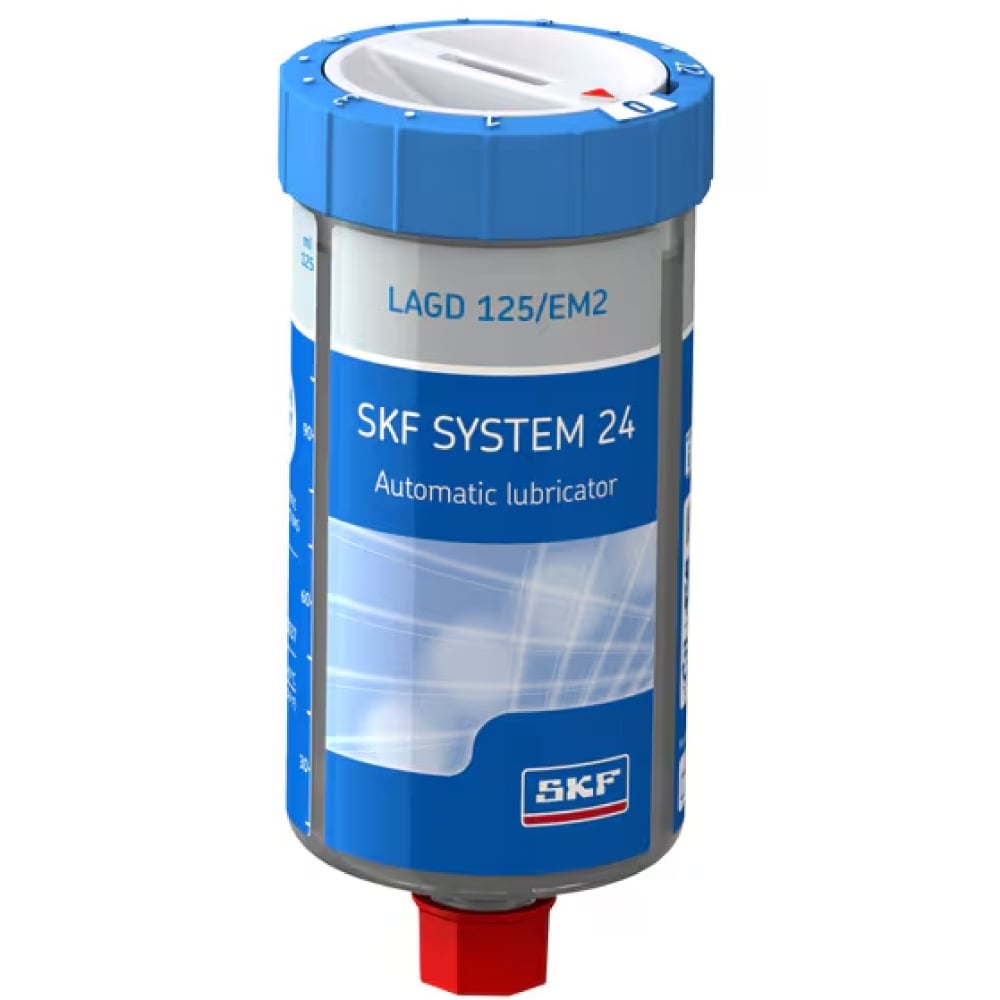

SKF LAGD 125/EM2 SYSTEM 24 Single point lubricator with LGEM 2, 125ml

SKF LAGD 125/EM2 is a gas-driven single point automatic lubricator pre-filled with SKF LGEM 2 high viscosity bearing grease containing solid lubricants. It is designed for easy, safe and accurate relubrication in applications with low speeds, heavy loads and high vibrations such as jaw crushers and crane arms.

• Pack size: 125 ml unit

Applications

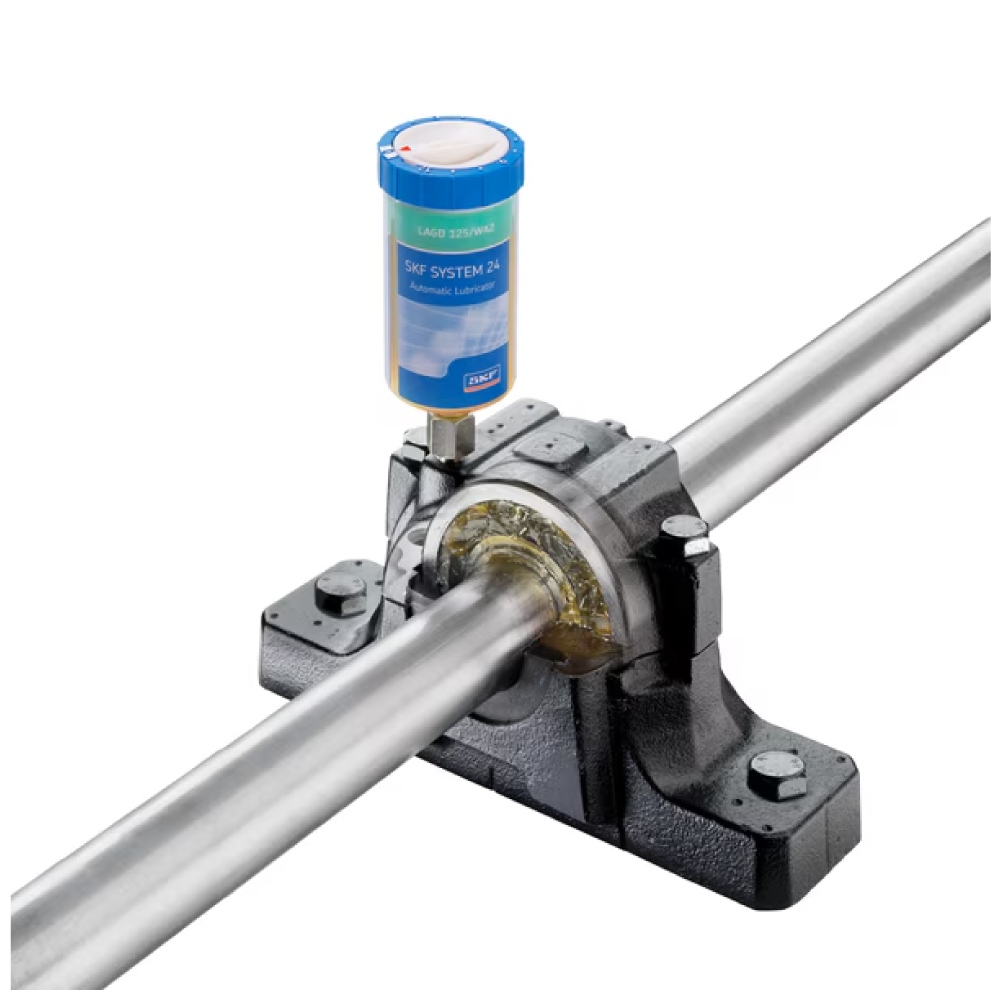

• Rolling element bearings at low speeds and very high loads
• Heavy vibrations and shock loads

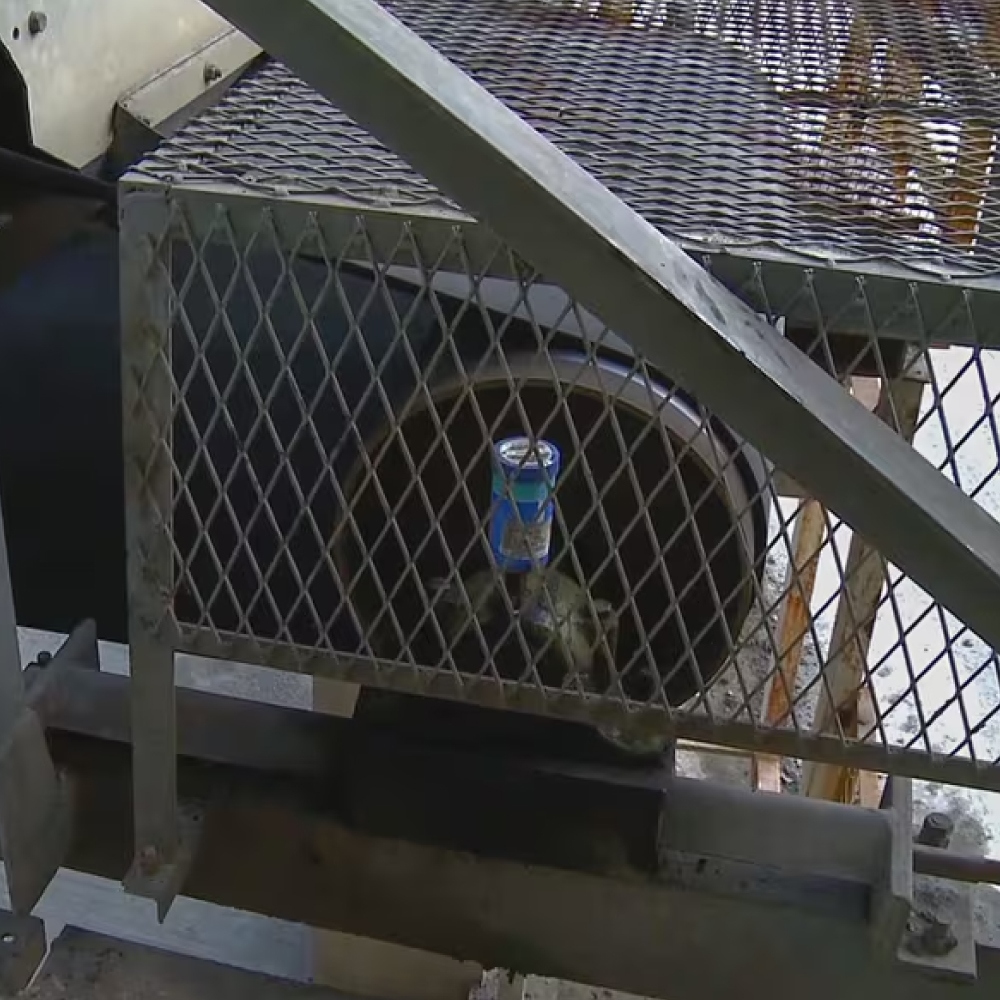

• Jaw crushers
• Crane arms
• Other slow rotating machinery with high load requirements

Features

• Flexible dispense rate adjustable from 1 to 12 months
• Transparent container allows visual inspection of dispense rate
• Compact size suitable for restricted areas
• Tool-free activation and time setting
• Gas cell producing inert gas as drive mechanism
• Improved reliability and optimised maintenance

Specifications & Approvals

• ATEX Zone 0 approved
• II 1G Ex ia IIC T6 Ga
• II 1D Ex ia IIIC T200 85°C Da
• I M1 Ex ia I Ma
• Degree of protection: IP 68

Technical data

Product description

The SKF SYSTEM 24 LAGD 125/EM2 is filled with SKF LGEM 2 grease for heavy loads, vibrations and slow rotations. These gas-driven single point automatic lubricators allow easy, safe and accurate relubrication and are available pre-filled or empty for filling with oil.

Recommended accessories

Various accessories are available for the SKF SYSTEM 24, including angle connectors (LAPA 45, LAPA 90), brackets (LAPC 13), clamps (LAPC 50), extensions (LAPE 35, LAPE 50), tube connectors, grease nipples, Y-connectors, reducer nipples and support plates. Please contact us for the full range.
