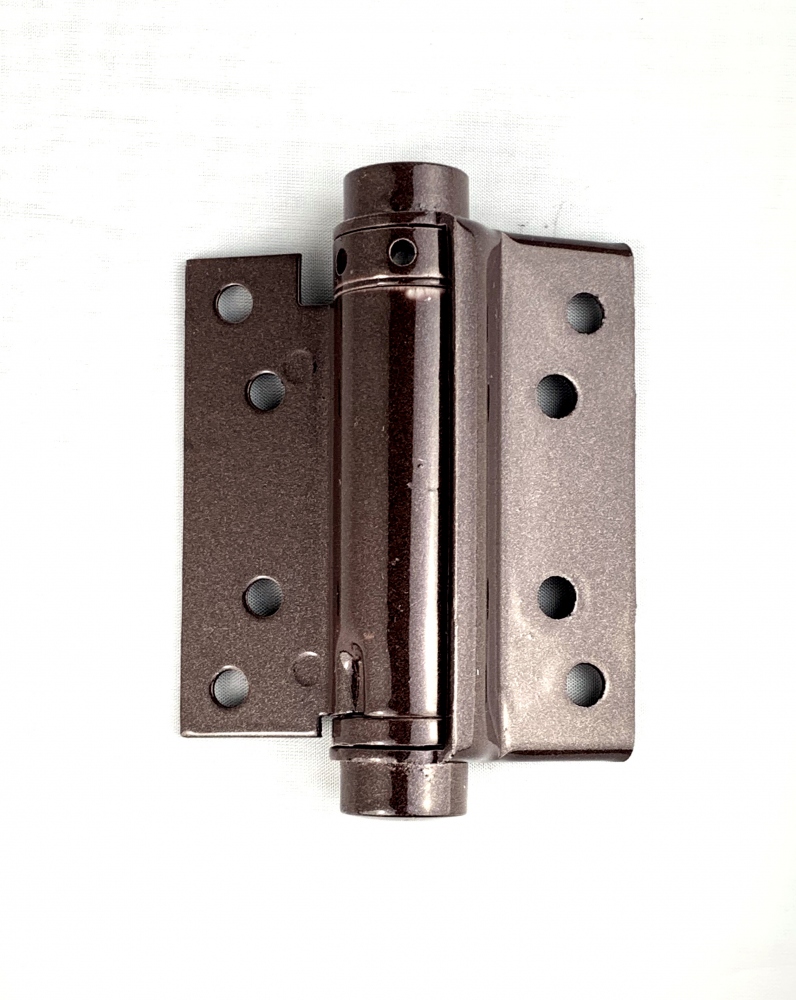

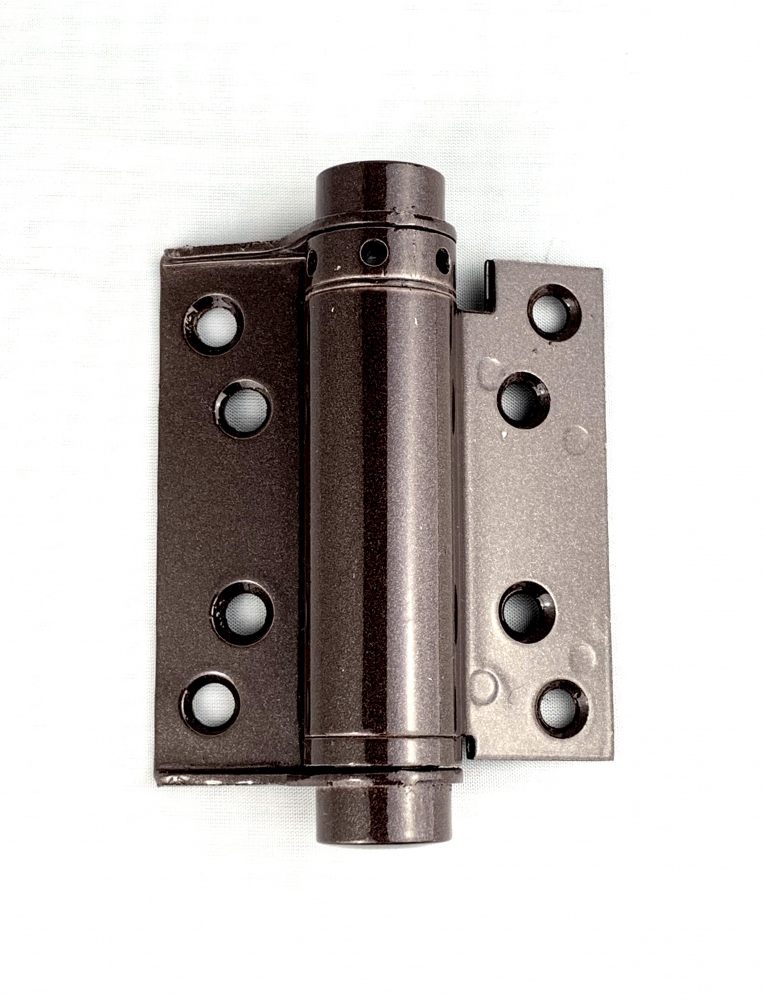

Fridavo No.135 Spiral spring hinge, Single direction Model M

Fridavo No.135 Spiral spring hinge, Single direction Model M

pics/Fridavo/135-fridavo-spiralfeder-tuerband-einseitig-wirkend-braun-lakiert-hinten.jpg
  • pics/Fridavo/135-fridavo-spiralfeder-tuerband-einseitig-wirkend-braun-lakiert-hinten.jpg
  • pics/Fridavo/135-fridavo-spiralfeder-tuerband-einseitig-wirkend-braun-lakiert-vorne.jpg
  • pics/Fridavo/fridavo-spiralfederband-groessen-0-1-technische-zeichnung.jpg
  • pics/Fridavo/fridavo-spiralfederband-groessen-5-9-13-17-technische-zeichnung.jpg
  • pics/Fridavo/fridavo-spiralfederband-groessen-21-25-technische-zeichnung.jpg
  • pics/Fridavo/a_fridavo_logo.png
  • pics/Symbole/made_in_germany_002.jpg

from € 65.39 65.39 incl. VAT (54.95 excl. VAT), per piece *

Availability: on request

Packaging unit: 1 pair

Size

Manufacturer: Fritz Dannert

Country of origin: DE/0004

Customs tariff number: 83026000

Weight per piece: 4.0 kg

Please give the recipient email address, as well as your name and email address.

Recipient
Sender

The fields marked with (×) are required.
Security (ANTI-SPAM)
( Examples: two + three = 5, three - five = -2 )
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

The fields marked with (×) are required.
Security (ANTI-SPAM)
( Examples: two + three = 5, three - five = -2 )
  • Fridavo "steel, soft primed and painted toyota-brown" - spiral spring hinge
  • Packaging unit: 1 pair
  • Single direction
  • Model M
  • Spiral spring made ​​of special spring wire
  • When assembling the tapes must be ensured that the trade are placed vertically above one another
  • Product may vary from picture

Spring hinge,
Size

Nr.

0

1

5

9

13

17

21

25

Joint length

mm

75

100

125

150

175

200

250

300

Calculated on:

















Door width

mm

610

735

735

735

860

985

985

1235

Door hight

mm

1800

1900

2000

2500

2500

2600

2800

3000

Door thickness

mm

18 – 25

25 – 30

30 – 35

35 – 40

40 – 45

45 – 50

50 – 60

60 – 75

max. Door weigth

kg

15

22

27

40

55

70

100

145



Size: 0

  • Length of hinge in mm: 75
  • calculated on:
    • Door width in mm: 610
    • Door height in mm: 1800
    • Door thickness in mm: 18-25
    • Door weight in Kg: 15


Size: 1

  • Length of hinge in mm: 100
  • calculated on:
    • Door width in mm: 735
    • Door height in mm: 1800
    • Door thickness in mm: 25-30
    • Door weight in Kg: 22


Size: 5

  • Length of hinge in mm: 125
  • calculated on:
    • Door width in mm: 735
    • Door height in mm: 2000
    • Door thickness in mm: 30-35
    • Door weight in Kg: 27


Size: 9

  • Length of hinge in mm: 150
  • calculated on:
    • Door width in mm: 735
    • Door height in mm: 2500
    • Door thickness in mm: 34-40
    • Door weight in Kg: 40


Size: 13

  • Length of hinge in mm: 175
  • calculated on:
    • Door width in mm: 860
    • Door height in mm: 2500
    • Door thickness in mm: 40-45
    • Door weight in Kg: 55


Size: 17

  • Length of hinge in mm: 200
  • calculated on:
    • Door width in mm: 985
    • Door height in mm: 2600
    • Door thickness in mm: 45-50
    • Door weight in Kg: 70


Size: 21

  • Length of hinge in mm: 250
  • calculated on:
    • Door width in mm: 985
    • Door height in mm: 2800
    • Door thickness in mm: 50-60
    • Door weight in Kg: 100


Size: 25

  • Length of hinge in mm: 300
  • calculated on:
    • Door width in mm: 1235
    • Door height in mm: 3000
    • Door thickness in mm: 60-75
    • Door weight in Kg: 145

0, 1, 5, 9, 13, 17, 21, 25

No files available for download

Property GTIN/EAN MPN (Manufacturer Part Number)
0 4015912001355 135/ 0/075/toyobraun
1 4015912011354 135/ 1/100/toyobraun
5 4015912051350 135/ 5/125/toyobraun
9 4015912091356 135/ 9/150/toyobraun
13 4015912131359 135/13/175/toyobraun
17 4015912171355 135/17/200/toyobraun
21 4015912211358 135/21/250/toyobraun
25 4015912251354 135/25/300/toyobraun
